REPRESENTATIVE IMAGE

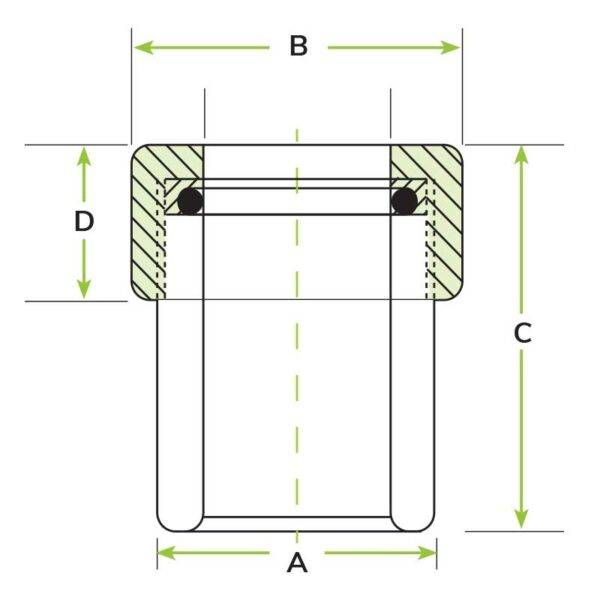

Attributes

A 1.81
B 2
C 2.13
D 0.88
Accepts Tube O.D. 1.375
DrawingLogin
Wall Thickness 0.211
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

138-QDTK-2.13

1 3/8 in. Thick Wall Disconnect Coupling

$135.00

Need more than what you see in stock? Let us know and we can likely assemble in less than a day.

Available on backorder

Part ID: 1000125


Features

  • Vacuum rating: HV design 1×10-8 Torr
  • Quick disconnects come standard with Buna-N seals (FKM is available)
  • Quickly make and break vacuum seals
  • Designed to accept standard inch tubing O.D.’s
  • Infinitely rotatable, sexless connection to tubing or gauges
  • Reusable seals

Specifications

  • Leak rating: <1×10-9 std. cc/s helium

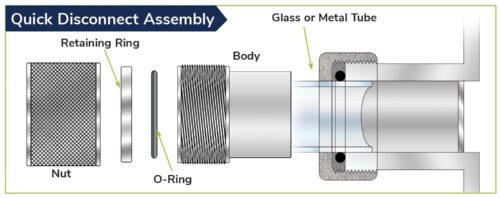

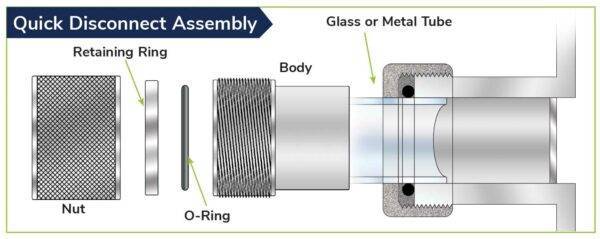

  • Body, plug, and retaining ring manufactured from 304L stainless steel
  • Nut manufactured from 303 stainless steel
  • Seals: Standard – Buna-N O-ring (FKM O-ring available upon request)

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Attributes

A 1.81
B 2
C 2.13
D 0.88
Accepts Tube O.D. 1.375
DrawingLogin
Wall Thickness 0.211
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.
