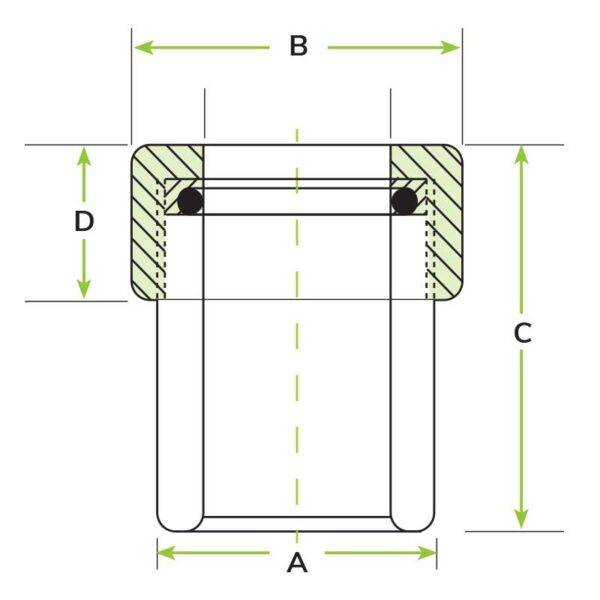

Attributes

A 1.875
B 2.375
C 2.25
D 0.875
Accepts Tube O.D. 1.625
3D CADLogin
DrawingLogin

162-QDTK-2.25

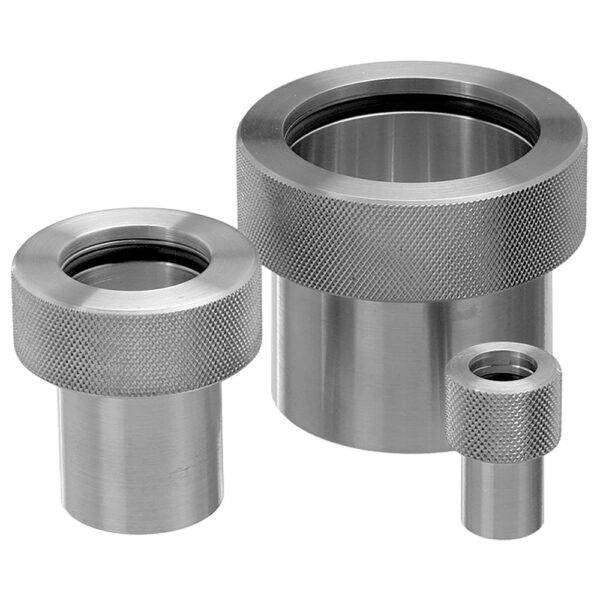

Thick Disconnect Coupling, 1.625″

$163.00

Part ID: 1000129


Specifications

  • Vacuum rating: HV design 1×10-8 Torr
  • Leak rating: <1×10-9 std. cc/s helium
  • Body, plug, nut, and retaining ring manufactured from 304 stainless steel
  • Seals: Standard – Buna-N O-ring (Viton™ O-ring available upon request)



Features

  • Interchangeable with other quick disconnect style fittings
  • Quick disconnects come standard with Buna-N seals (Viton™ is available)
  • Quickly make and break vacuum seals
  • Designed to accept standard inch tubing O.D.’s
  • Infinitely rotatable, sexless connection to tubing or gauges
  • Reusable seals
