TL4150-QF40-H075

• Vacuum rated to 1 X 10^-8 Torr
• Helium leak rated less than 1 X 10^-9 std. cc/sec
• Max Temp w/Standard Viton® (FKM) -26°C to 150°C (-15°F to 302°F). Higher operating temperatures are possible with alternate o-ring and grease options. Contact our sales department for more information.

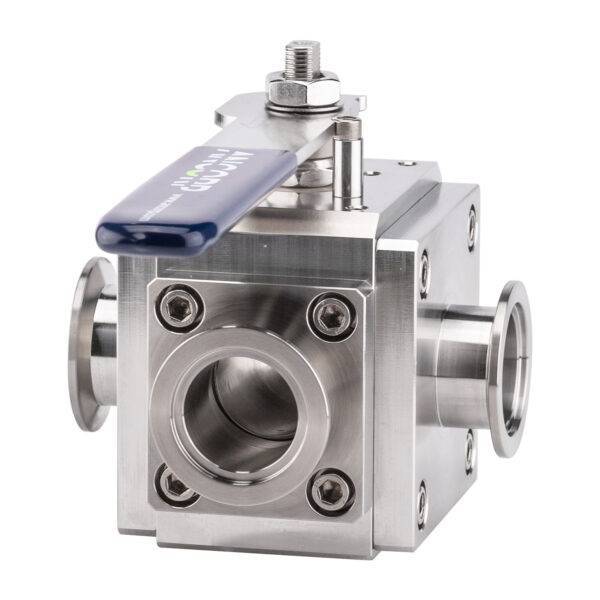

• Valve body, ball, stem, and end caps: machined from solid 316L stainless steel
• Standard seal: fluoroelastomer
• Seats: PTFE Teflon®
• Lubricant: Dow Corning® High Vacuum Grease

Service kits are available for all 3-way ball valve series.
Use TL-RK-S 3-way ball valve service kit for both 1-1/2″ and 2″ valves.
Kit includes:

• (1) stem o-ring
• (3) body o-rings
• (2) Teflon seats
• (1) PEEK stem bearing
• (1) nylon lock nut

• Service kit instructions are available for download here: Manuals and Technical Data Sheets

Lock kits are available for both manual and pneumatic 3-way ball valves.
