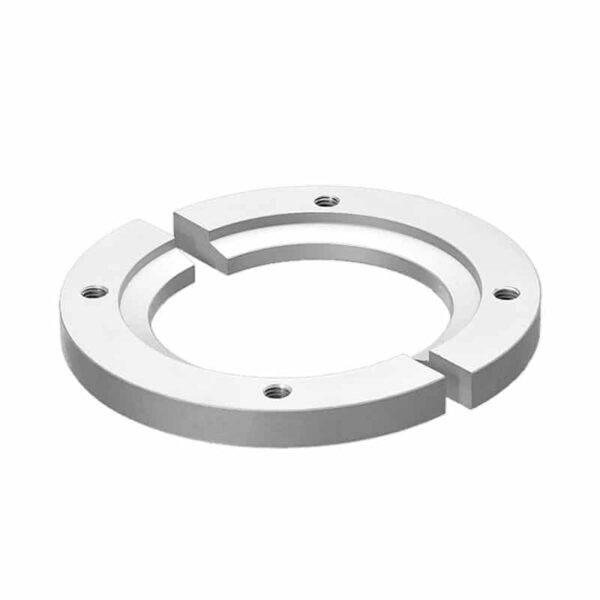

QF80 Adaptive Bolt Ring
Available on backorder
Part ID: 4001087
Adaptive bolt rings allow vacuum users to convert directly from one style of ISO-LF fastening flange to another without the purchase of an adaptive fitting. This saves money and reduces the space needed to accomplish the flange adaptation within your system.
The ANCORP adaptive ISO fastener can convert a bolted or claw clamp-style ISO-LF flange directly to a quick clampflange for the same tubing diameter (e.g. an LF80-300-SF can adapt directly to a QF80-300-SF).
- High vacuum rated to 1×10-8 Torr
- Compatible with all ISO standard vacuum flanges and fittings
- Body: Aluminum
- Converts ISO-LF and ISO-LFB flanges to ISO-QF flanges
- O.D. and bolt pattern match ISO-LFB flanges
