• 4500069
  • 4500069

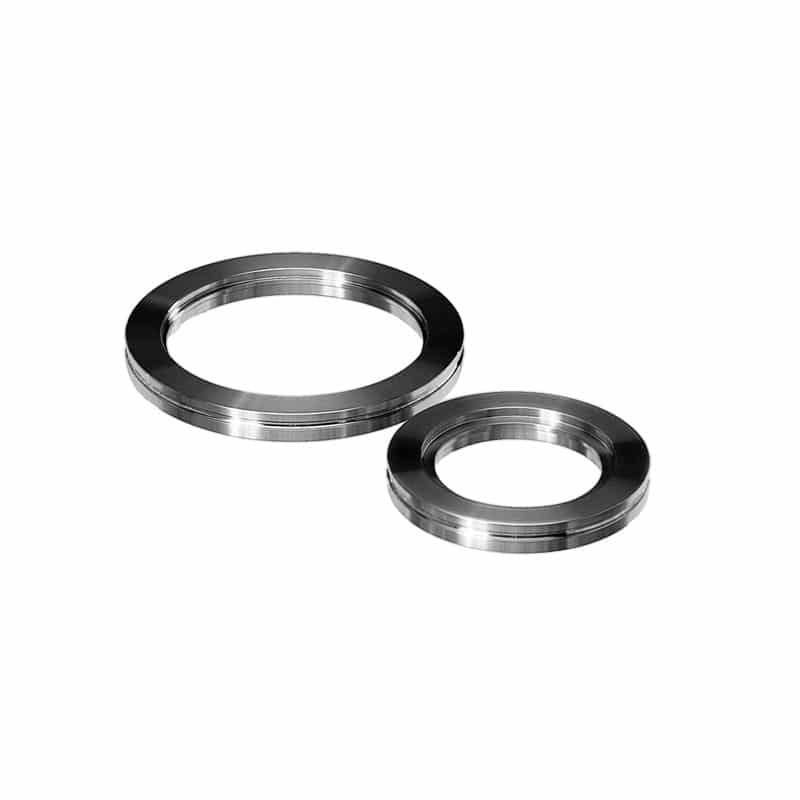

REPRESENTATIVE IMAGE

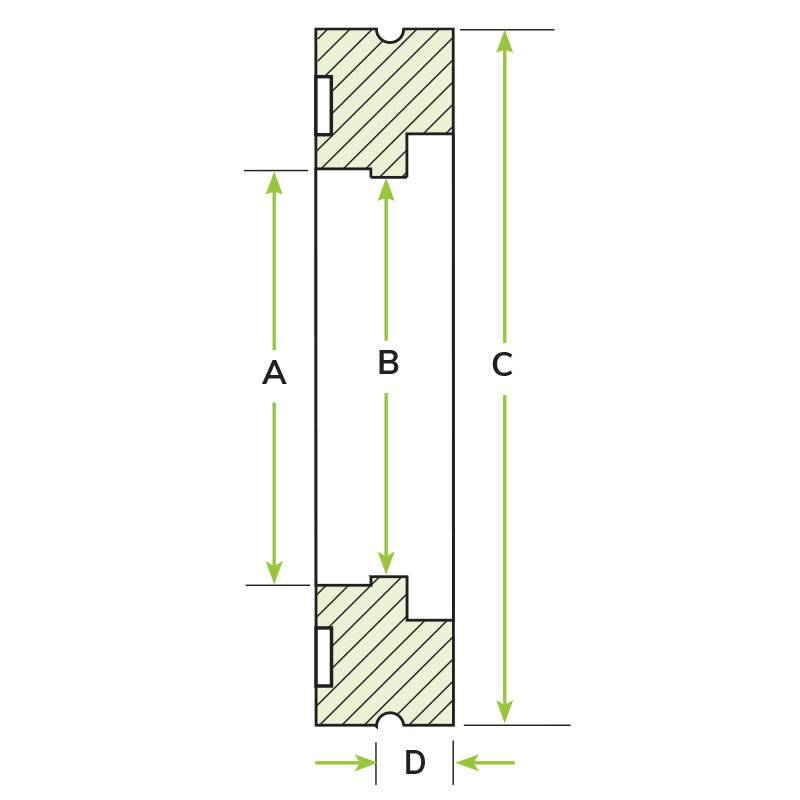

Attributes

A 12.77
B 12.42
C 14.57
D 0.38
Material 6061-T6 Aluminum
Tube O.D. 12.75
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

LF320-1275-SF-AL

LF320 Socket Flange, Aluminum

$0.00

5 in stock (can be backordered)

Part ID: 4500084











Features






  • High Vacuum Rated to 1×10-8 Torr
    •

  • Bakeable to 200°C
    •

  • Compatible with all ISO standard vacuum flanges and fittings
    •

  •  Quick Sealing and disassembly
    •

  •  Internal weld
    •

  •  Self-aligning
    •

  •  Designed to fit standard inch tubing O.D.’s
    •

  •  To simplify aluminum welding, ANCORP also offers an aluminum ISO-LF stub weld flange
    •









Specifications






  • Standard Material:
    •



    • 304L Stainless Steel
      •

    • 316 Stainless Steel
      •

    • 6061 Aluminum
      •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

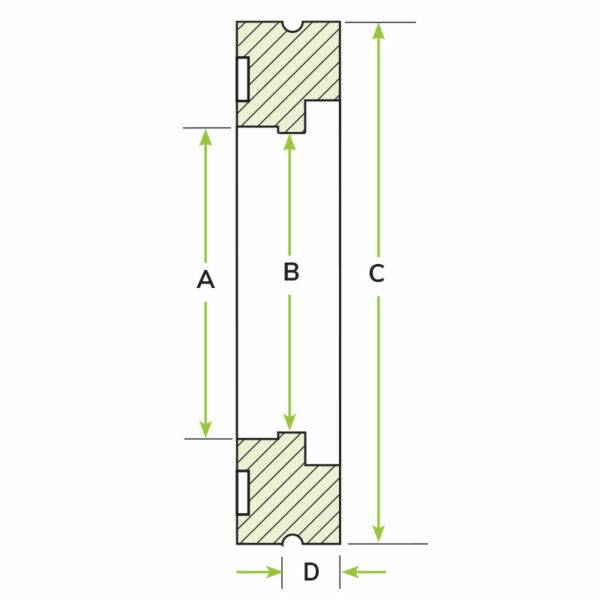

Attributes




















                    A 12.77



                    B 12.42



                    C 14.57



                    D 0.38



                    Material 6061-T6 Aluminum



                    Tube O.D. 12.75



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
