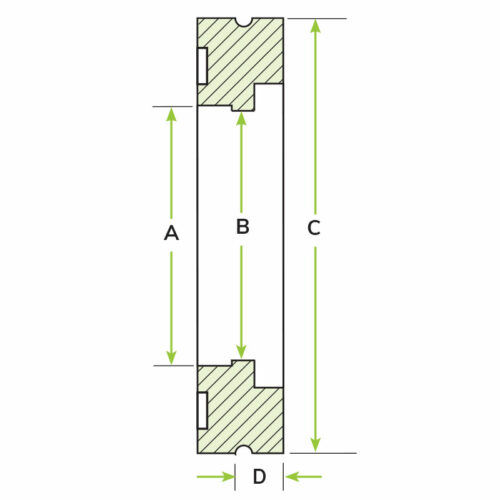

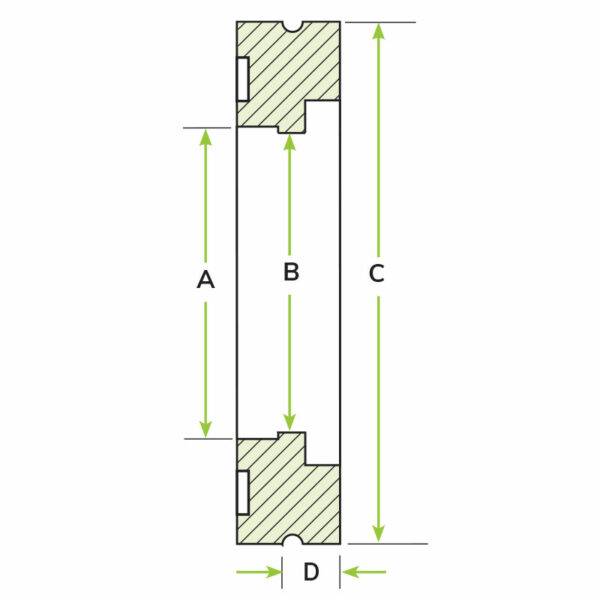

Attributes

A 16.03
B 15.62
C 17.72
D 0.38
Material 6061-T6 Aluminum
Tube O.D. 16
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

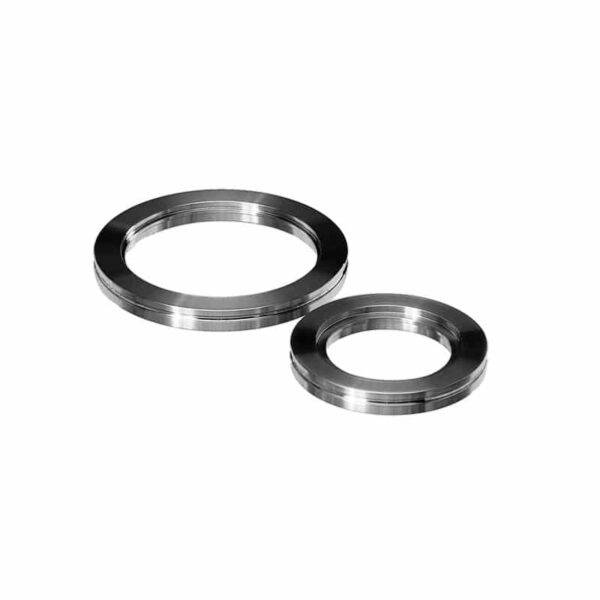

LF400-1600-SF-AL

LF400 Socket Flange, Aluminum

Part ID: 4500085


















$0.00



















































			Standard Lead Time:

8 Weeks
















































Available on backorder



















































Features






  • High Vacuum Rated to 1×10-8 Torr
    •

  • Bakeable to 200°C
    •

  • Compatible with all ISO standard vacuum flanges and fittings
    •

  •  Quick Sealing and disassembly
    •

  •  Internal weld
    •

  •  Self-aligning
    •

  •  Designed to fit standard inch tubing O.D.’s
    •

  •  To simplify aluminum welding, ANCORP also offers an aluminum ISO-LF stub weld flange
    •









Specifications






  • Standard Material:
    •



    • 304L Stainless Steel
      •

    • 316 Stainless Steel
      •

    • 6061 Aluminum
      •
