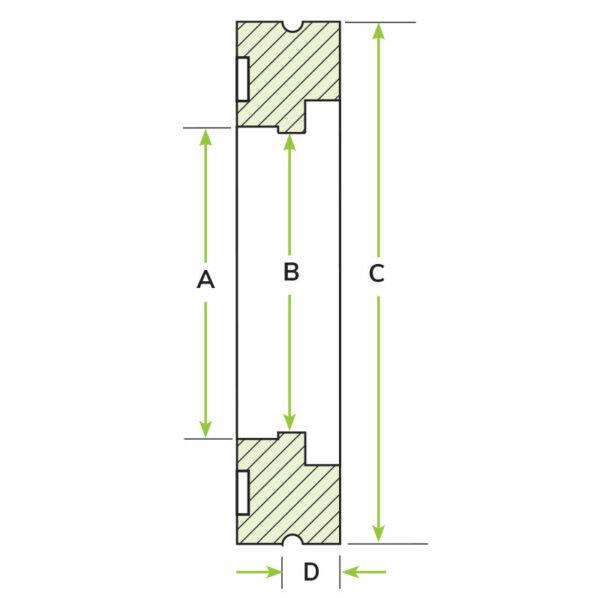

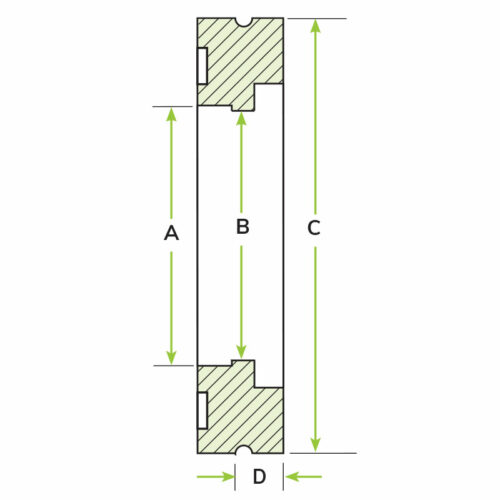

Attributes

A 20.03
B 19.62
C 21.65
D 0.38
Material 6061-T6 Aluminum
Tube O.D. 20
3D CADLogin
DrawingLogin

LF500-2000-SF-AL

LF500 Socket Flange, Aluminum

$0.00

Available on backorder

Part ID: 4500086







Features


  • High Vacuum Rated to 1×10-8 Torr
    •
  • Bakeable to 200°C
    •
  • Compatible with all ISO standard vacuum flanges and fittings
    •
  • Quick sealing and disassembly
    •



Materials


  • Standard:

    • 304 Stainless Steel
      •
    • 316 Stainless Steel
      •
    • 6061 Aluminum
      •

    •



Product Notes


  • Internal weld
    •
  • Self-aligning
    •
  • Designed to fit standard inch tubing O.D.’s
    •
  • To simplify aluminum welding, ANCORP also offers an aluminum ISO-LF stub weld flange
    •
