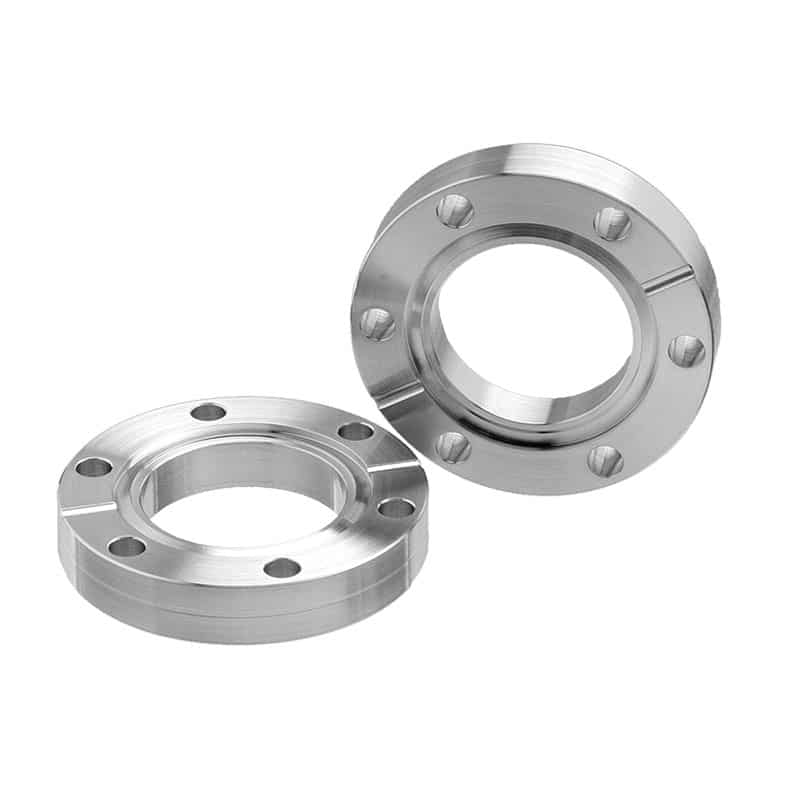

REPRESENTATIVE IMAGE

Attributes

A 1.01
B 0.47
Thrd 0.27
Bolt Holes 4
Flange O.D. 2.12
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF212-100-DS-0.470

Double Sided 2.12 in. ConFlat Flange with 1 in. Inner Diameter

Original price was: $58.50.Current price is: $49.73.

Available on backorder

Part ID: 5000253


Product Features

  • Same size CF flange on both sizes
  • Ideal to add a spacer to your system or customize with a radical port
  • Requires special CF double-sided flange bolt kit for fastening
  • Use standard CF gaskets to seal
  • Self-aligning
  • Sexless flanges
  • Interchangeable with other ConFlat style flanges

Product Specifications

  • Vacuum rated: UHV (approx. 1×10-13 Torr)
  • Temperature range: -200°C up to 450°C
  • Standard material: 304L stainless steel

Options: Contact us for price and availability

  • Tapped bolt holes
  • Alternative materials: 316L stainless steel, aluminum, etc.
