• 5000245
  • 5000245

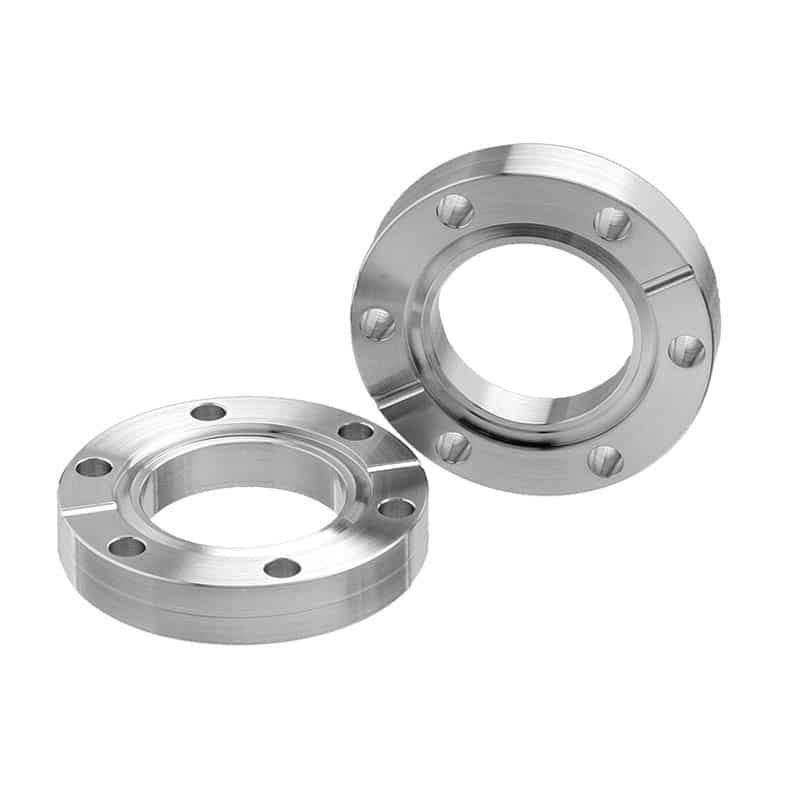

REPRESENTATIVE IMAGE

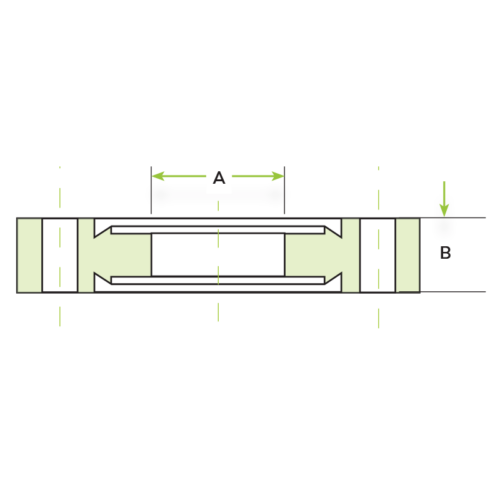

Attributes

A -
B 0.62
Thrd 0.33
Bolt Holes 8
Flange O.D. 3.38
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF338-000-DS-0.625

Double Sided 3.38 in. (DN 50) ConFlat Flange – Blank

Original price was: $83.50.Current price is: $62.63.

Your Price

7 in stock (can be backordered)

Part ID: 5000263











Features






  • Same size CF flange on both sides
    •

  • Ideal to add a spacer to your system or customize with a radial port
    •

  • Requires special CF double-sided flange bolt kit for fastening
    •

  • Use standard CF gaskets to seal
    •

  • Use standard CF gaskets to seal
    •

  • Self-aligning
    •

  • Sexless flanges
    •

  • Interchangeable with other ConFlat style flanges
    •









Specifications






  • Temperature Range: -200°C to 450°C
    •

  • Vacuum Range: UHV (Approx. 1×10-13 Torr)
    •

  • Standard materials: 304L stainless steel
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A -



                    B 0.62



                    Thrd 0.33



                    Bolt Holes 8



                    Flange O.D. 3.38



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
