CF1400-1200-DS-1.120

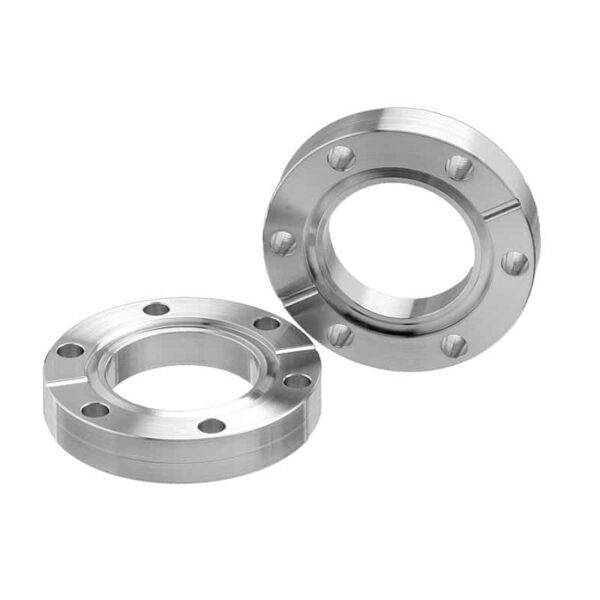

Double Sided 14.00 in. (DN 295) ConFlat Flange with 12 in. Inner Diameter
$0.00
Part ID: 5000283
These flanges feature the same size CF flange on both sides and are for installation between two flanges of the same size. This product offers a convenient and efficient way to add various vacuum accessories to your system, such as measurement devices, shutters, and valves.
Features
- Same size CF flange on both sides
- Ideal to add a spacer to your system or customize with a radial port
- Requires special CF double-sided flange bolt kit for fastening
- Use standard CF gaskets to seal
- Use standard CF gaskets to seal
- Self-aligning
- Sexless flanges
- Interchangeable with other ConFlat style flanges
Specifications
- Temperature Range: -200°C to 450°C
- Vacuum Range: UHV (Approx. 1×10-13 Torr)
- Standard materials: 304L stainless steel
Accordion #1
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Accordion #2
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Attributes

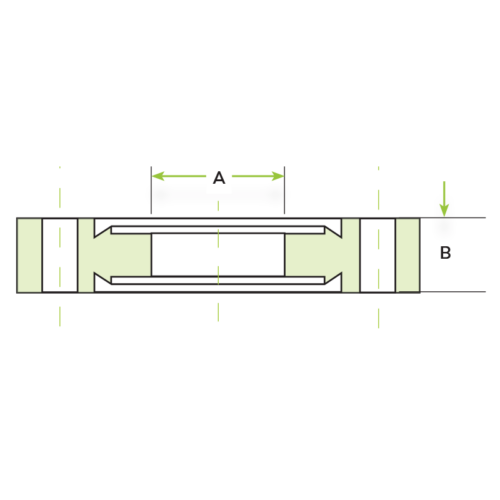

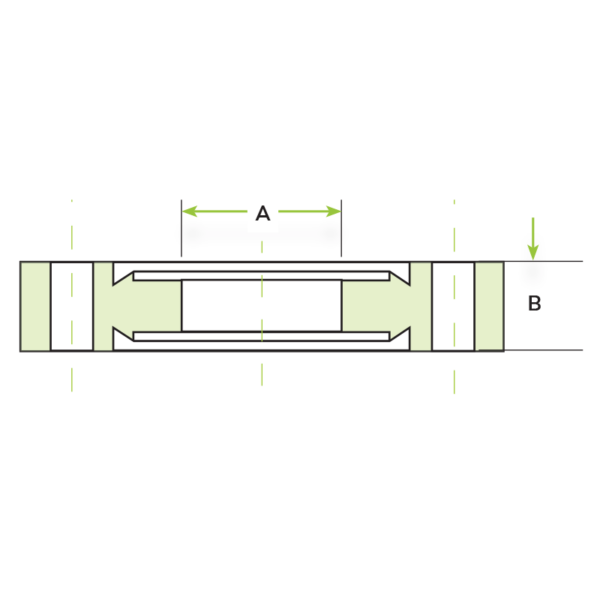

All dimensions are in inches unless otherwise specified.
