• 5000779
  • 5000779

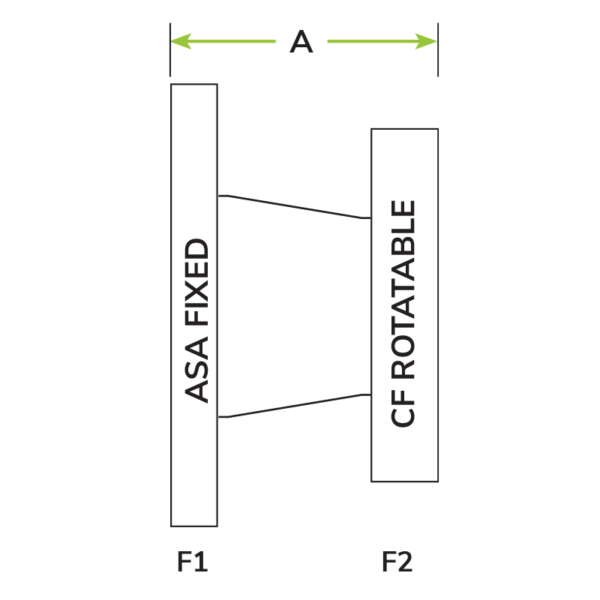

REPRESENTATIVE IMAGE

Attributes

A 2.834
Flange 1 Type ASA150
Flange 2 Type CF275R
Flange 1 Tube O.D. 2
Flange 2 Tube O.D. 1.5
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

ASA150XCF275R-200X150-CR-2.83

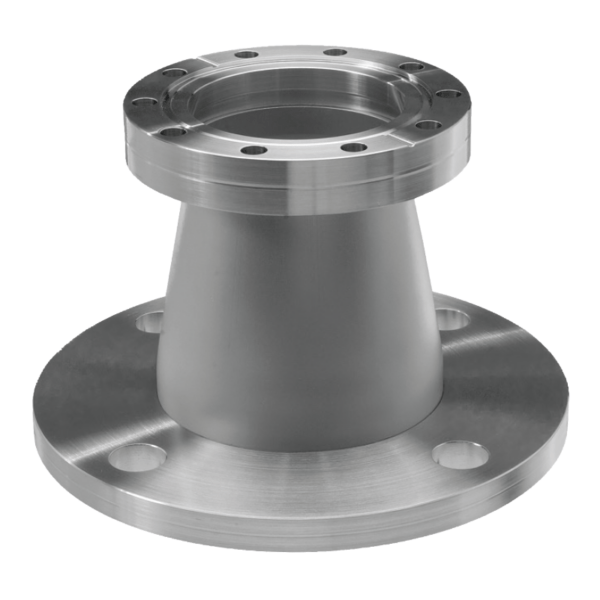

2.75 in. (DN 40) Rotatable ConFlat Flange to ASA150 Conical Adapter

$0.00

Available on backorder

Part ID: 5000783











Features






  • Adapts from ASA/ANSI to CF flanges for different tubing diameters
    •









Specifications






  •  Materials:
    •







    •  Flanges: 304L Stainless Steel
      •

    •  Fitting: 304 Stainless Steel
      •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 2.834



                    Flange 1 Type ASA150



                    Flange 2 Type CF275R



                    Flange 1 Tube O.D. 2



                    Flange 2 Tube O.D. 1.5



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
