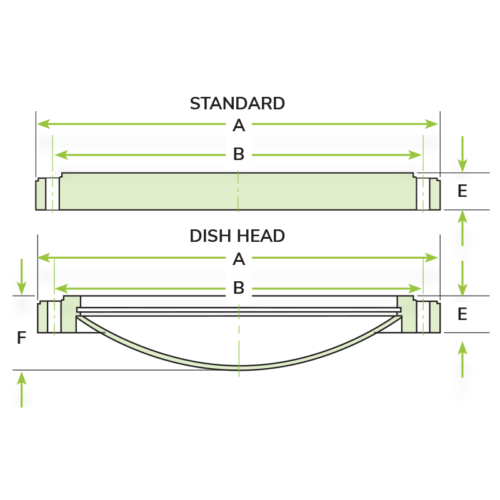

A 14.63
B 13.59
E 1.13
F -
Type Standard
Tube O.D. 12
Bolt Holes 32
Flange O.D. 14.63
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

WF1400M-000

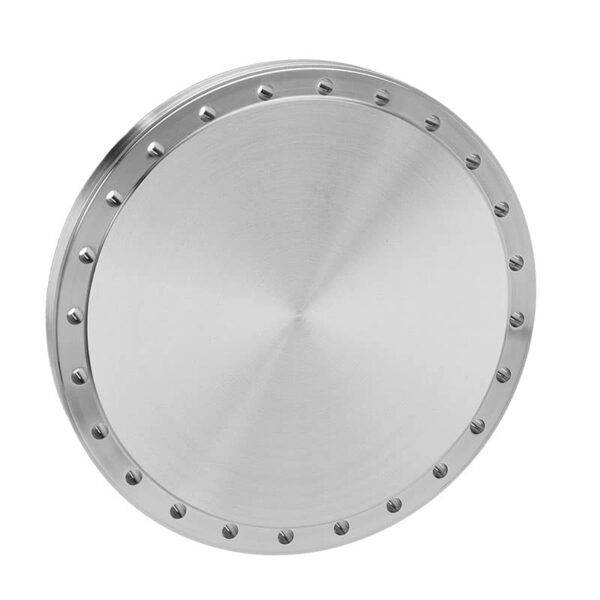

Blank Wire Seal Flange Male 14.00″ Standard

Part ID: 5500006

































Request a Quote for Price























Available on backorder





















			Standard Lead Time:

Contact









































































Wire Seal Blank flanges are manufactured with no weld prep and no tubing bore. Blank flanges are commonly used to close unused ports. Female flanges accept the sealing gasket while the male flange has a protruding circular ridge that fits into the gasket groove on the receiving female flange.




Features






  • Designed to fit standard inch tubing O.D.’s
    •

  • Self-aligning
    •

  • Internal weld
    •

  • Blank flanges close unused ports or custom modify
    •

  • Standard blank flanges are manufactured from solid stainless steel plate for highest sealing reliability
    •

  • Dish head blank flanges have a stainless steel disk welded onto the back of a bored flange. This option weighs less and costs less. Dish head blank flanges have a “-d” suffix on the Reference ID.
    •









Specifications






  • Flange: 304L Stainless Steel
    •

  • Sizes: outer diameter 12 3/8 inches up to 27 1/8 inches (for tubing diameter 10 inches up to 24 inches)
    •

  • Vacuum rated: UHV (approx. 1×10-13 Torr)
    •

  • Temperature range: -200°C up to 450°C
    •
