Attributes

A 6.751
B 5.969
C 4.75
D 5.015
E 5.25
F 0.5
G 0.827
H 1.5
Bolt Hole Style Tapped Metric
Bolt Hole Size/Thread M8x1.25
Flange Style Rotatable
Figure -
3D CADLogin

CF675RTM-500-304AL

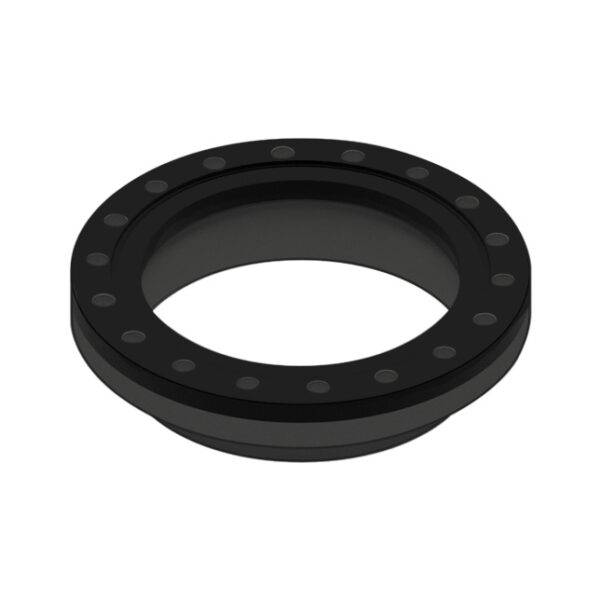

CF675 Rotatable Tapped Metric 5 in. Bore 304SS-Al Bimetal Flange, Threaded M8X1.25

$985.00

Part ID: LOS5020058


6.75” CF / DN125 Bimetal Explosion Bonded 304SS-Al Flanges

Features

  • UHV/XHV rated to 1×10-13 Torr
  • Rotatable and fixed geometries
  • 40% lighter than traditional SS flanges
  • Tapped or clearance bolt holes
  • Conflat® compatible design
  • Custom flanges also available

Specifications

  • Materials
    • Flange Body / Weld Interface: 6061-T6 Aluminum
    • Flange Knife-edge: 304 Stainless Steel
    • Ti/Al Flange Gaskets: Annealed Copper or 1100 Aluminum
    • Bolts: 300 SS silver plated
  • Fastening
    • Bolt Type: Socket head screws
    • Nut Type: Hexagonal or two hole plate nuts
  • Vacuum Range: 1×10-13 Torr
  • Temperature Range: -200°C to 150°C
