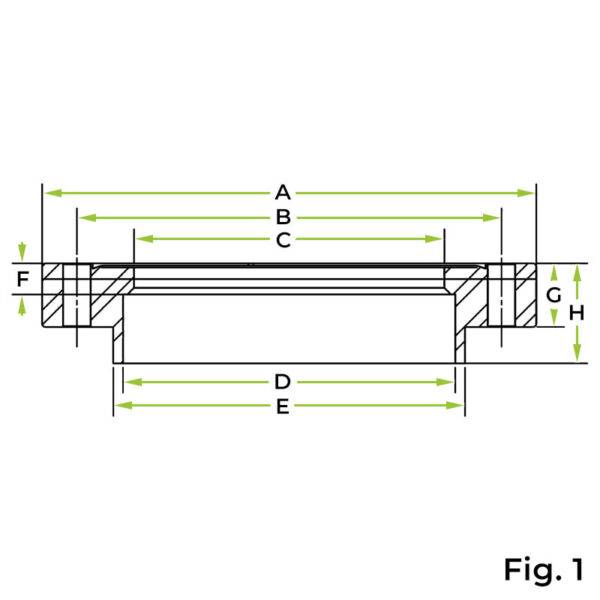

Attributes

A 9.97
B 9.125
C 7.75
D 8
E 8.25
F 0.375
G 0.945
H 1.5
Bolt Hole Style Clearance
Bolt Hole Size/Thread 0.332
Flange Style Rotatable
Figure 2
3D CADLogin
I

CF1000R-800-304AL

CF1000 Rotatable 8 in. Bore 304SS-Al Bimetal Flange, .332″ Clearance Holes

$0.00

Available on backorder

Part ID: LOS5020066







10.0” CF / DN200 Bimetal Explosion Bonded 304SS-Al Flanges


Features



  • UHV/XHV rated to 1×10-13 Torr
    •
  • Rotatable and fixed geometries
    •
  • 40% lighter than traditional SS flanges
    •
  • Tapped or clearance bolt holes
    •
  • Conflat® compatible design
    •
  • Custom flanges also available
    •



Specifications



  • Materials
    •

    • Flange Body / Weld Interface: 6061-T6 Aluminum
      •
    • Flange Knife-edge: 304 Stainless Steel
      •
    • Ti/Al Flange Gaskets: Annealed Copper or 1050 Aluminum
      •

  • Fastening
    •

    • Bolt Type: Socket head screws
      •
    • Nut Type: Hexagonal or two hole plate nuts
      •

  • Vacuum Range: 1×10-13 Torr
    •
  • Temperature Range: -200°C to 150°C
    •
