VAT11044-CE24

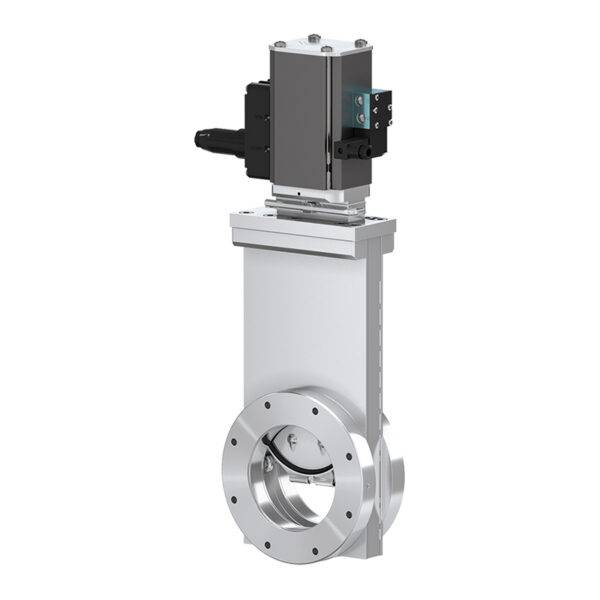

6″ Pneumatically Actuated Air-to-Air High Vacuum Gate Valve Metric Tapped CF800. Position Indication, No Solenoid

$3,424.00

Available on backorder

Part ID: VAT11044-CE24







VAT’s Series 110 HV Gate Valve is a general purpose valve for isolation in high vacuum systems. This valve is especially suited to pump isolation. Pneumatic valves come standard with a position indicator and without a solenoid valve. Solenoid valves are available upon request.



Main Features



  • Sizes: DN 63–320 mm (2.5″–12″)
    •
  • Actuator: pneumatic double acting
    •
  • Body material: stainless steel
    •
  • Feedthrough: bellows
    •
  • Standard flanges: ISO-LFB (ISO-F), CF (fixed)
    •
  • Sealing technology: VATLOCK
    •





Resources






Technical Data



  • Leak rate (valve body, valve seat): < 1×10-9 mbar ls-1
    •
  • Pressure range:

    • DN 63–200: 1×10-8 mbar to 1.6 bar (abs)
      •
    • DN 250–320: 1×10-8 mbar to 1.2 bar (abs)
      •

    •
  • Differential pressure on the gate:

    • DN 63–200: ≤ 1.6 bar
      •
    • DN 250–320: ≤ 1.2 bar
      •

    •
  • Differential pressure at opening: ≤ 30 mbar
    •
  • Cycles until first service: 200,000
    •
  • Temperature:

    • Valve body: ≤ 150°C
      •
    • Manual and pneumatic actuator: ≤ 80°C
      •
    • Solenoid valve: ≤ 50°C
      •
    • Position indicator: ≤ 50°C
      •

    •
  • Heating and cooling rate: ≤ 50°C h-1
    •
  • Material:

    • Valve body: AISI 304 (1.4301)
      •
    • Mechanism:

      • DN 63–200: AISI 316L (1.4404)
        •
      • DN 250–320: AISI 304 (1.4301)
        •

      •
    • Bellows: AISI 633 (AM350)
      •

    •
  • Seal (bonnet, gate): FKM (Viton™)
    •
  • Mounting position: any
    •
  • Solenoid valve: 24 V DC, 5.4 W (others on request)
    •
  • Position indicator contact rating:

    • Voltage: ≤ 50 V AC/DC
      •
    • Current: ≤ 1.2 A
      •

    •
  • Valve position indication: visual (mechanical)
    •
