100ASA Flanges (4.25 O.D.)
ASA100 Fixed, Grooved Flanges (4.25 O.D.)

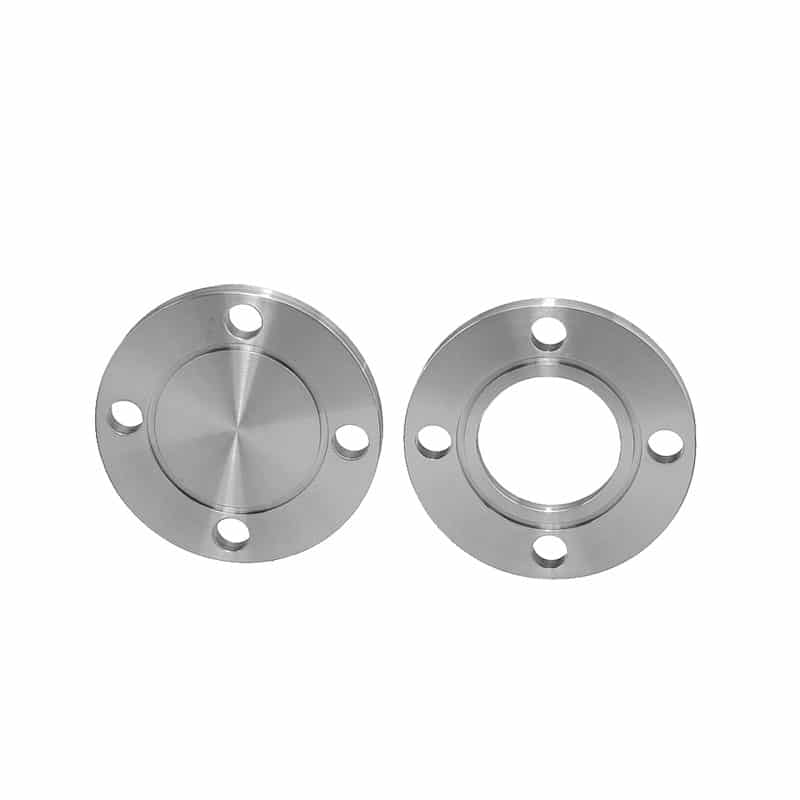

ASA fixed grooved bored flanges are manufactured with a weld prep and tubing bore for immediate installation on your system with no additional alteration.
ASA fixed grooved blank flanges are manufactured with no weld prep and no tubing bore. Blank flanges are commonly used to close unused ports or to be altered by customers with their own custom machining capability for a special use.
Fixed grooved flanges have a set bolt hole orientation and an O-ring groove machined into the surface of the flange face.
Product Features
- Designed to fit standard inch tubing O.D.’s
- Self-aligning
- Internal weld
- Interchangeable with other ASA/ANSI style flanges
Product Specifications
- Pressure range: HV (approx. 1×10-8 Torr)
- Temperature range: -20°C to 200°C
- Standard materials: 304 stainless steel
Options
- Contact us for price and availability
*Dimensions are in inches unless otherwise specified
| Part ID | Reference Number | A | B | C | D | E | F | Bolt Hole NO. | Bolt Hole Size | 3D CAD | Drawing | Unit Price | In Stock | Qty, Add To Cart | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part ID | 6000028 | Reference Number | ASA100G-000 | A | 4.25 | B | 0.5 | C | BLANK | D | - | E | - | F | 3.125 | Bolt Hole NO. | 4 | Bolt Hole Size | 0.625 | 3D CAD | Login | Drawing | Login | Unit Price | $112.00 | 1 | |
| Part ID | 6000029 | Reference Number | ASA100G-100 | A | 4.25 | B | 0.5 | C | 1.1 | D | 0.875 | E | 0.25 | F | 3.125 | Bolt Hole NO. | 4 | Bolt Hole Size | 0.625 | 3D CAD | Login | Drawing | Login | Unit Price | $119.00 | Contact | |
| Part ID | 6000030 | Reference Number | ASA100G-150 | A | 4.25 | B | 0.5 | C | 1.51 | D | 1.375 | E | 0.25 | F | 3.125 | Bolt Hole NO. | 4 | Bolt Hole Size | 0.625 | 3D CAD | Login | Drawing | Login | Unit Price | $119.00 | Contact |
