ASA Nipples

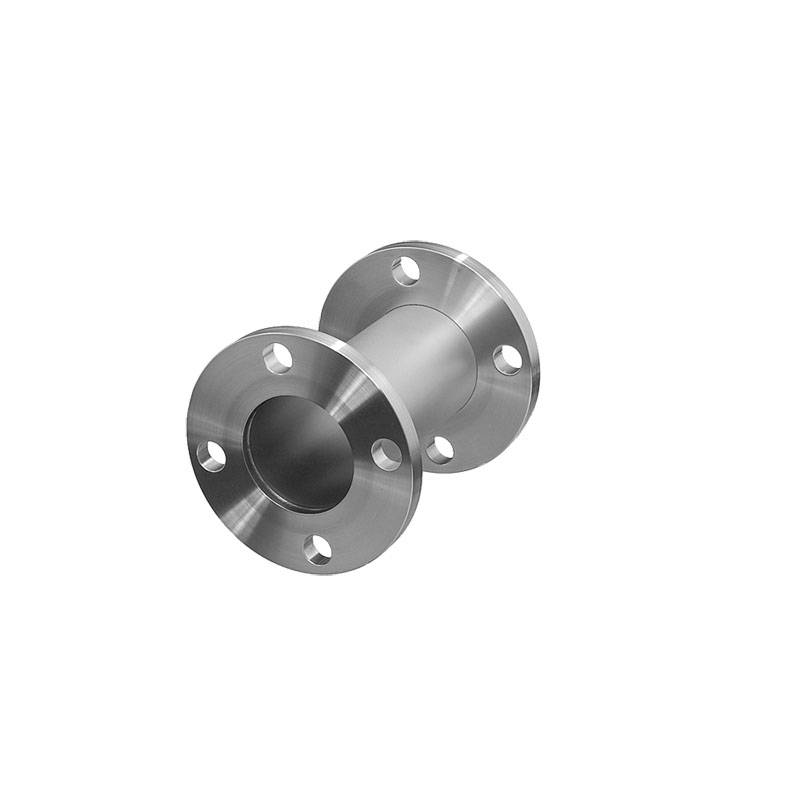

Nipples are manufactured with a flange from the same family on each end of a tube section. Fittings that are manufactured with different flange families on each end are called hybrid adapters. Straight nipples are manufactured with the same size flange on each end of straight section of tubing. Reducer nipples have different size flanges (from the same family) on each end. In addition, reducer nipples are manufactured with straight and conical tube sections. Conical tube sections provide higher conductance. Flexible nipples have tube sections constructed from convoluted (formed metal bellows) tubing. Half nipples are terminated with a tube cuff end on one end for vacuum users with in-house welding capabilities.

ANCORP offers flanges on these fittings in two designs: fixed and rotatable. Fixed flanges have a set bolt hole orientation whereas rotatable flanges have a two piece design allowing for bolt hole rotation to assist bolt hole alignment when mating the two flanges. Nipple fittings are available in all ASA/ANSI sizes. ANCORP manufactures standard nipples in 304 stainless steel. Other materials are available on request.

Custom ASA Nipple

Looking for a customized ASA nipple fitting? Our nipple configurator is here to help expedite your request-for-quote experience by creating a part reference ID and streamlining the communication of your design specifications to our engineers. Use this reference ID in your custom request form when you ‘Buy Now’ or simply add-to-cart if paired with a standard product.
