800ASA Flanges (13.5 O.D.)
ASA fixed grooved bored flanges are manufactured with a weld prep and tubing bore for immediate installation on your system with no additional alteration.
Features
- Designed to fit standard inch tubing O.D.’s
- Self-aligning
- Internal weld
- Interchangeable with other ASA/ANSI style flanges
Specifications
- Pressure range: HV (approx. 1×10-8 Torr)
- Temperature range: -20°C to 200°C
- Standard materials: 304L stainless steel
*Dimensions are in inches unless otherwise specified

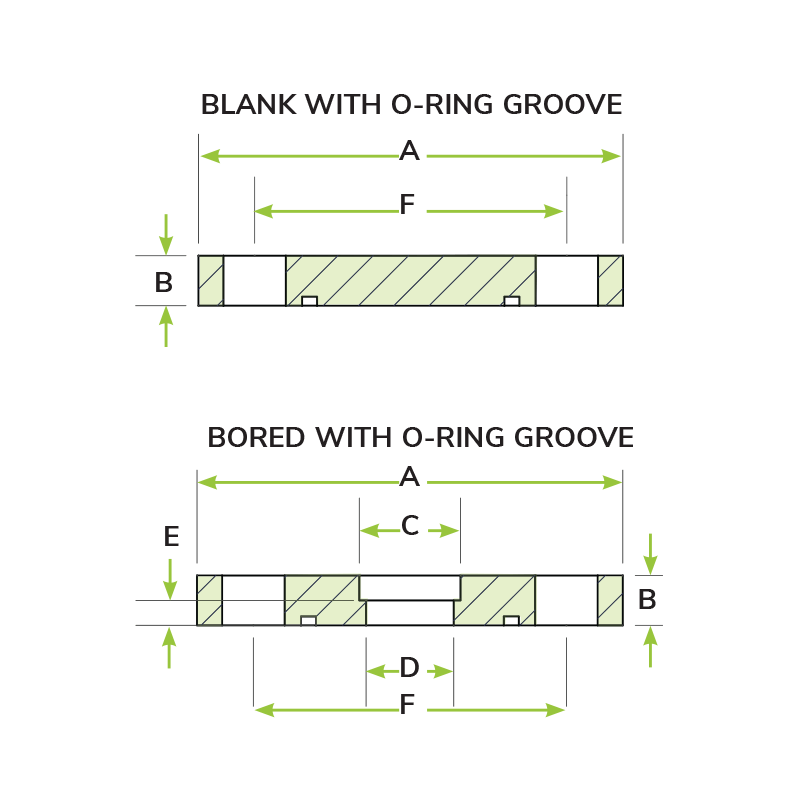

| Part ID | Reference Number | A | B | C | D | E | F | Bolt Hole NO. | Bolt Hole Size | 3D CAD | Drawing | Unit Price | In Stock | Qty, Add To Cart | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part ID | 6000050 | Reference Number | ASA800G-000 | A | 13.5 | B | 0.75 | C | BLANK | D | - | E | - | F | 11.75 | Bolt Hole NO. | 8 | Bolt Hole Size | 0.812 | 3D CAD | Login | Drawing | Login | Unit Price | $515.00 | Contact | |
| Part ID | 6000051 | Reference Number | ASA800G-800 | A | 13.5 | B | 0.75 | C | 8.2 | D | 7.875 | E | 0.375 | F | 11.75 | Bolt Hole NO. | 8 | Bolt Hole Size | 0.812 | 3D CAD | Login | Drawing | Login | Unit Price | $523.24 | Contact | |
| Part ID | 6000052 | Reference Number | ASA800G-1000 | A | 13.5 | B | 0.75 | C | 1.2 | D | 9.875 | E | 0.375 | F | 11.75 | Bolt Hole NO. | 8 | Bolt Hole Size | 0.812 | 3D CAD | Login | Drawing | Login | Unit Price | $523.24 | 6 |
