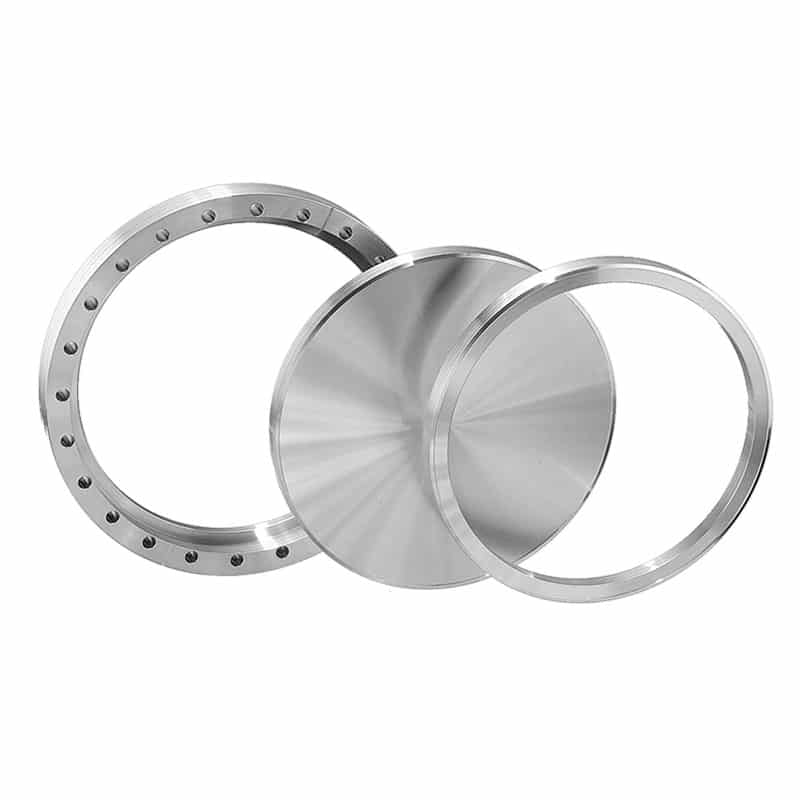

DN 200 CF (10.00" OD) 316LN Rotatable Flanges
10.00 inch (DN 200) outer diameter ConFlat (DN200 CF) rotatable flanges ideal for UHV applications requiring low magnetic permeability.
Features
- Designed to fit standard inch tubing O.D.’s
- Self-aligning
- Internal weld
- Sexless flanges
- Tapped and clearance (through-hole) bolt holes available
- Rotatable flanges ease bolt hole alignment
- Interchangeable with other ConFlat style flanges
- Adapters to other flange systems available
Specifications
- Vacuum rating: 1×10-13 Torr
- Temperature range: -200°C to 450°C
- Low magnetic permeability of 1.005 μmax
- Excellent for Beamlines, XHV, X-Ray, and Laser applications
- Heat resistant to higher temperatures
- Increased resistance to irradiation damage
- Resistant to crevice corrosion
- High level of weldability
- Resistant to pitting
*Dimensions are in inches unless otherwise specified
Part ID | Reference Number | A | B | C | D | E | F | Thrd | Flange Style | Bolt Hole Style | Bolt Hole Number | 3D CAD | Drawing | Unit Price | In Stock | Qty, Add To Cart | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Part ID | 5004160 | Reference Number | CF1000R-000-316LN | A | 9.97 | B | - | C | - | D | 0.97 | E | - | F | 9.13 | Thrd | 0.332 | Flange Style | Rotatable | Bolt Hole Style | Clearance | Bolt Hole Number | 24 | 3D CAD | Login | Drawing | Login | Unit Price | $1,245.00 | Contact | |
Part ID | 5004161 | Reference Number | CF1000R-800-316LN | A | 9.97 | B | 7.83 | C | 8.02 | D | 0.97 | E | 0.5 | F | 9.13 | Thrd | 0.332 | Flange Style | Rotatable | Bolt Hole Style | Clearance | Bolt Hole Number | 24 | 3D CAD | Login | Drawing | Login | Unit Price | $1,225.00 | 2 |
