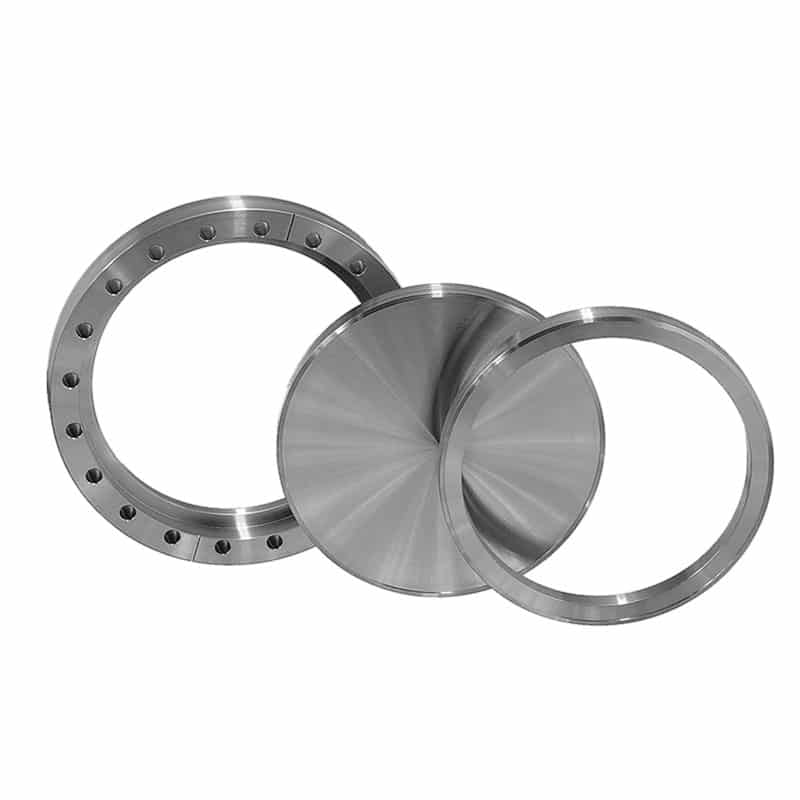

DN 160 CF (8.00" OD) 316LN Rotatable Flanges
Features
- Designed to fit standard inch tubing O.D.’s
- Self-aligning
- Internal weld
- Sexless flanges
- Tapped and clearance (through-hole) bolt holes available
- Rotatable flanges ease bolt hole alignment
- Interchangeable with other ConFlat style flanges
- Adapters to other flange systems available
Specifications
- Vacuum rating: 1×10-13 Torr
- Temperature range: -200°C to 450°C
- Low magnetic permeability of 1.005 μmax
- Excellent for Beamlines, XHV, X-Ray, and Laser applications
- Heat resistant to higher temperatures
- Increased resistance to irradiation damage
- Resistant to crevice corrosion
- High level of weldability
- Resistant to pitting

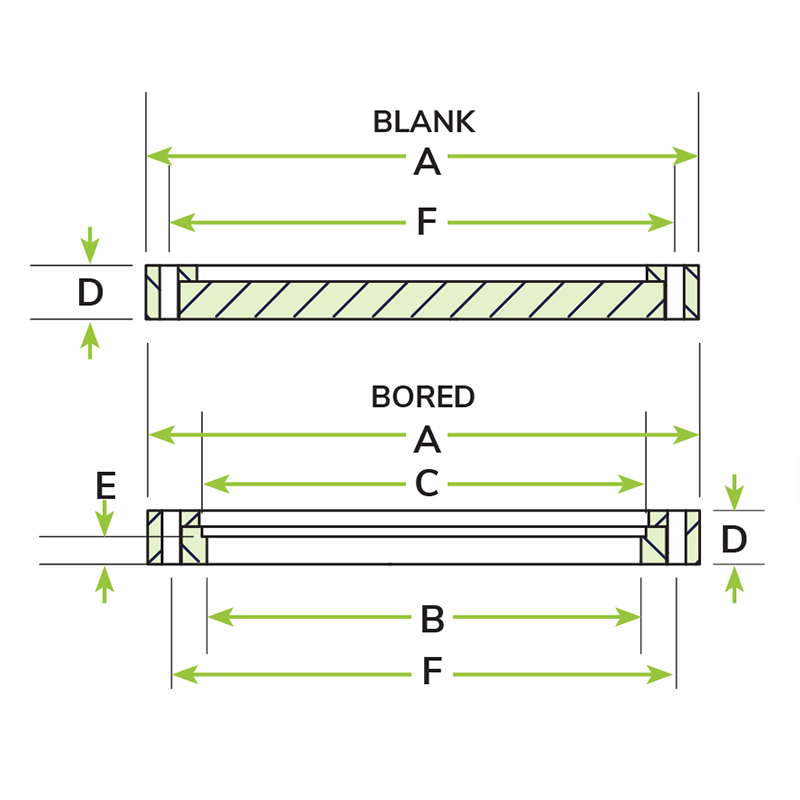

*Dimensions are in inches unless otherwise specified
| Part ID | Reference Number | A | B | C | D | E | F | Thrd | Flange Style | Bolt Hole Style | Bolt Hole Number | 3D CAD | Drawing | Unit Price | In Stock | Qty, Add To Cart | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part ID | 5004152 | Reference Number | CF800R-000-316LN | A | 7.97 | B | - | C | - | D | 0.94 | E | - | F | 7.13 | Thrd | 0.332 | Flange Style | Rotatable | Bolt Hole Style | Clearance | Bolt Hole Number | 20 | 3D CAD | Login | Drawing | Login | Unit Price | $725.00 | 1 | |
| Part ID | 5004153 | Reference Number | CF800R-600-316LN | A | 7.97 | B | 6.13 | C | 6.75 | D | 0.94 | E | 0.5 | F | 7.13 | Thrd | 0.332 | Flange Style | Rotatable | Bolt Hole Style | Clearance | Bolt Hole Number | 20 | 3D CAD | Login | Drawing | Login | Unit Price | $725.00 | 7 |
