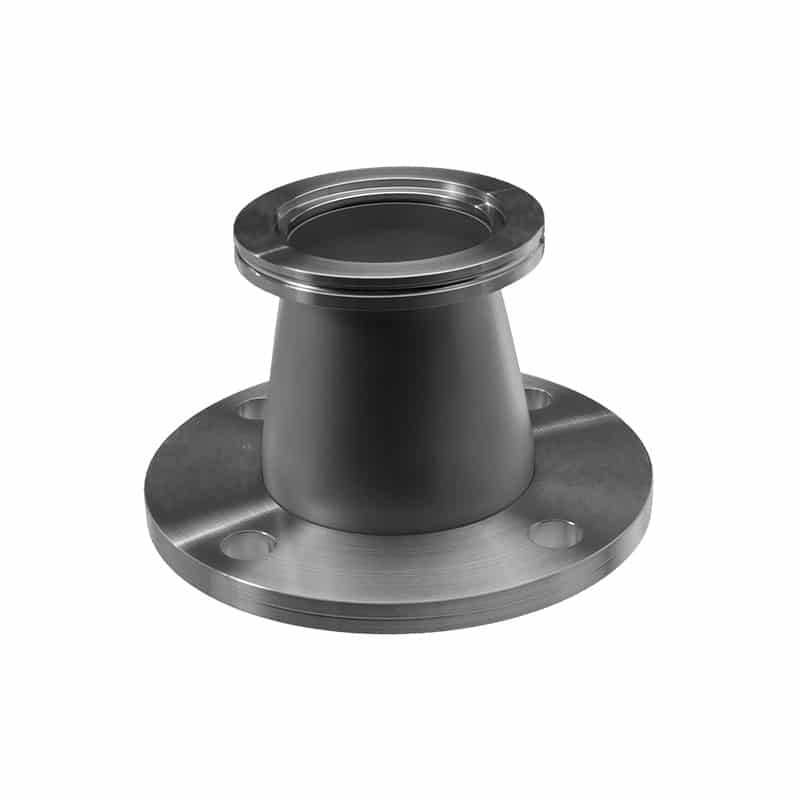

ISO-LF To ASA/ANSI Adapter Fitting - Conical
Materials:
- 304 stainless steel
Product Notes:
- Adapts from QF to ASA/ANSI flanges for different tubing diameters
Options: Contact us for price and availability
- Custom flange combinations
- Additional sizes
- Order ASA/ANSI flanges with or without sealing groove
O-ring Groove Options:
- ASA/ANSI flanged fittings come standard with a smooth flange face. The addition of an o-ring groove is a custom option. If you require a grooved flange, there is an additional charge. (Please specify the flange in your order notes)
- ASA100: $ 20.00
- ASA150: $ 20.00
- ASA200: $ 20.00
- ASA300: $ 35.00
- ASA400: $ 35.00
- ASA600: $ 50.00
- ASA800: $ 55.00
- ASA1000: $ 60.00
*Dimensions are in inches unless otherwise specified
| Part ID | Reference Number | A | Flange 1 Type | Flange 2 Type | Flange 1 Tube O.D. | Flange 2 Tube O.D. | 3D CAD | Drawing | Unit Price | In Stock | Qty, Add To Cart | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part ID | 6000444 | Reference Number | LF63XASA100-250X150-CR-2.87 | A | 2.875 | Flange 1 Type | LF63 | Flange 2 Type | 100ASA | Flange 1 Tube O.D. | 2.5 | Flange 2 Tube O.D. | 1.5 | 3D CAD | Login | Drawing | Login | Unit Price | $279.90 | Contact | |
| Part ID | 6000446 | Reference Number | ASA150XLF63-250X200-CR-2.87 | A | 2.875 | Flange 1 Type | LF63 | Flange 2 Type | 150ASA | Flange 1 Tube O.D. | 2.5 | Flange 2 Tube O.D. | 2 | 3D CAD | Login | Drawing | Login | Unit Price | $291.60 | Contact | |
| Part ID | 6000448 | Reference Number | ASA200XLF63-300X200-CR-4.12 | A | 4.125 | Flange 1 Type | LF63 | Flange 2 Type | 200ASA | Flange 1 Tube O.D. | 2.5 | Flange 2 Tube O.D. | 3 | 3D CAD | Login | Drawing | Login | Unit Price | $303.30 | Contact | |
| Part ID | 6000450 | Reference Number | ASA300XLF63-400X250-CR-4.13 | A | 4.125 | Flange 1 Type | LF63 | Flange 2 Type | 300ASA | Flange 1 Tube O.D. | 2.5 | Flange 2 Tube O.D. | 4 | 3D CAD | Login | Drawing | Login | Unit Price | $312.30 | Contact | |
| Part ID | 6000458 | Reference Number | ASA300XLF80-400X300-CR-4.12 | A | 4.125 | Flange 1 Type | LF80 | Flange 2 Type | 300ASA | Flange 1 Tube O.D. | 3 | Flange 2 Tube O.D. | 4 | 3D CAD | Login | Drawing | Login | Unit Price | $353.70 | Contact | |
| Part ID | 6000452 | Reference Number | LF80XASA100-300X150-CR-4.12 | A | 4.125 | Flange 1 Type | LF80 | Flange 2 Type | 100ASA | Flange 1 Tube O.D. | 3 | Flange 2 Tube O.D. | 1.5 | 3D CAD | Login | Drawing | Login | Unit Price | $320.40 | Contact | |
| Part ID | 6000454 | Reference Number | LF80XASA150-300X200-CR-4.12 | A | 4.125 | Flange 1 Type | LF80 | Flange 2 Type | 150ASA | Flange 1 Tube O.D. | 3 | Flange 2 Tube O.D. | 2 | 3D CAD | Login | Drawing | Login | Unit Price | $332.10 | Contact | |
| Part ID | 6000456 | Reference Number | LF80XASA200-300X250-CR-4.12 | A | 4.125 | Flange 1 Type | LF80 | Flange 2 Type | 200ASA | Flange 1 Tube O.D. | 3 | Flange 2 Tube O.D. | 2.5 | 3D CAD | Login | Drawing | Login | Unit Price | $343.80 | Contact | |
| Part ID | 6000460 | Reference Number | LF100XASA150-400X200-CR-4.12 | A | 4.125 | Flange 1 Type | LF100 | Flange 2 Type | 150ASA | Flange 1 Tube O.D. | 4 | Flange 2 Tube O.D. | 2 | 3D CAD | Login | Drawing | Login | Unit Price | $326.70 | Contact | |
| Part ID | 6000462 | Reference Number | LF100XASA200-400X300-CR-4.12 | A | 4.125 | Flange 1 Type | LF100 | Flange 2 Type | 200ASA | Flange 1 Tube O.D. | 4 | Flange 2 Tube O.D. | 2.5 | 3D CAD | Login | Drawing | Login | Unit Price | $343.80 | Contact | |
| Part ID | 6000464 | Reference Number | LF100XASA300-400X300-CR-4.12 | A | 4.125 | Flange 1 Type | LF100 | Flange 2 Type | 300ASA | Flange 1 Tube O.D. | 4 | Flange 2 Tube O.D. | 3 | 3D CAD | Login | Drawing | Login | Unit Price | $338.40 | Contact |
