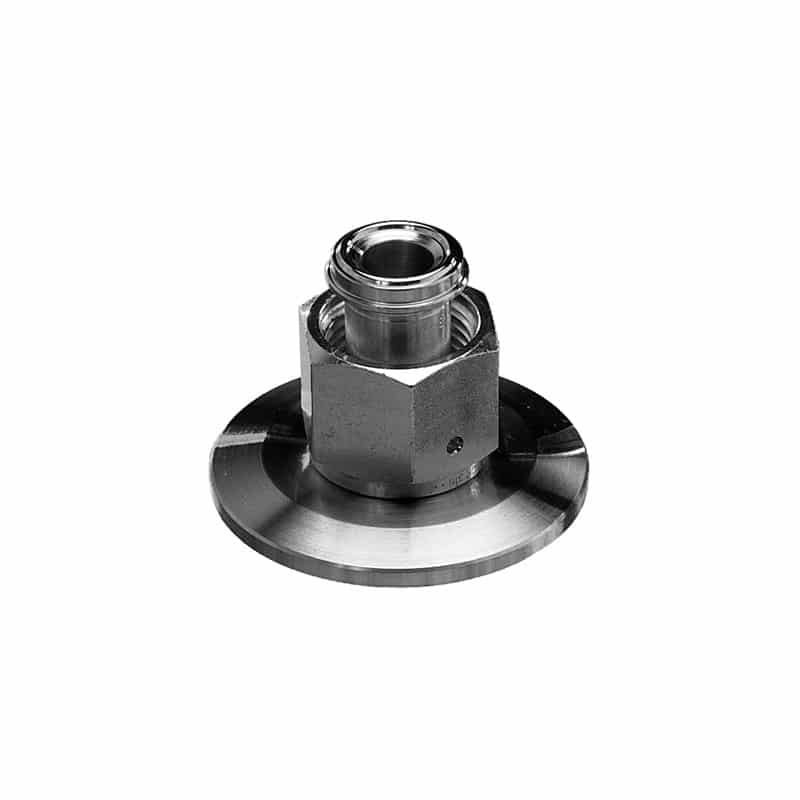

VCR Female to ISO-QF


  • High vacuum rating
  • QF flange is manufactured from 304 stainless steel
  • VCR® fitting is manufactured from 316 stainless steel
  • Adapts from VCR® fitting to ISO-QF flange


Swagelok® and VCR® are registered trademarks of Swagelok Company of Solon, Ohio.

*Dimensions are in inches unless otherwise specified

Part IDReference NumberA Tube O.D. Flange Type 3D CADDrawingUnit PriceIn StockQty, Add To Cart
Part ID4000270Reference NumberQF16XFVCR12-0.85A 0.85Tube O.D. 0.12Flange Type QF163D CADLoginDrawingLoginUnit Price$54.00-
Part ID4000271Reference NumberQF16XFVCR25-1.46A 1.36Tube O.D. 0.25Flange Type QF163D CADLoginDrawingLoginUnit Price$61.00-
Part ID4000272Reference NumberQF16XFVCR38-1.65A 1.55Tube O.D. 0.38Flange Type QF163D CADLoginDrawingLoginUnit Price$85.00-
Part ID4000273Reference NumberQF16XFVCR50-1.65A 1.55Tube O.D. 0.5Flange Type QF163D CADLoginDrawingLoginUnit Price$90.00-
Part ID4000279Reference NumberQF25XFVCR100-2.37A 2.37Tube O.D. 1Flange Type QF253D CADLoginDrawingLoginUnit Price$147.00-
Part ID4000274Reference NumberQF25XFVCR12-0.85A 0.85Tube O.D. 0.12Flange Type QF253D CADLoginDrawingLoginUnit Price$60.00-
Part ID4000275Reference NumberQF25XFVCR25-1.36A 1.36Tube O.D. 0.25Flange Type QF253D CADLoginDrawingLoginUnit Price$65.00-
Part ID4000276Reference NumberQF25XFVCR38-1.55A 1.55Tube O.D. 0.38Flange Type QF253D CADLoginDrawingLoginUnit Price$88.00-
Part ID4000277Reference NumberQF25XFVCR50-1.55A 1.55Tube O.D. 0.5Flange Type QF253D CADLoginDrawingLoginUnit Price$90.00-
Part ID4000278Reference NumberQF25XFVCR75-2.15A 2.15Tube O.D. 0.75Flange Type QF253D CADLoginDrawingLoginUnit Price$127.00-
Part ID4000285Reference NumberQF40XFVCR100-2.37A 2.37Tube O.D. 1Flange Type QF403D CADLoginDrawingLoginUnit Price$152.00-
Part ID4000280Reference NumberQF40XFVCR12-0.85A 0.85Tube O.D. 0.12Flange Type QF403D CADLoginDrawingLoginUnit Price$70.00-
Part ID4000281Reference NumberQF40XFVCR25-1.36A 1.36Tube O.D. 0.25Flange Type QF403D CADLoginDrawingLoginUnit Price$72.00-
Part ID4000282Reference NumberQF40XFVCR38-1.55A 1.55Tube O.D. 0.38Flange Type QF403D CADLoginDrawingLoginUnit Price$84.00-
Part ID4000283Reference NumberQF40XFVCR50-1.55A 1.55Tube O.D. 0.5Flange Type QF403D CADLoginDrawingLoginUnit Price$92.00-
Part ID4000284Reference NumberQF40XFVCR75-2.15A 2.15Tube O.D. 0.75Flange Type QF403D CADLoginDrawingLoginUnit Price$132.00-
Part ID4000291Reference NumberQF50XFVCR100-2.37A 2.37Tube O.D. 1Flange Type QF503D CADLoginDrawingLoginUnit Price$157.00-
Part ID4000286Reference NumberQF50XFVCR12-0.85A 0.85Tube O.D. 0.12Flange Type QF503D CADLoginDrawingLoginUnit Price$80.00-
Part ID4000287Reference NumberQF50XFVCR25-1.36A 1.36Tube O.D. 0.25Flange Type QF503D CADLoginDrawingLoginUnit Price$96.00-
Part ID4000288Reference NumberQF50XFVCR38-1.55A 1.55Tube O.D. 0.38Flange Type QF503D CADLoginDrawingLoginUnit Price$100.00-
Part ID4000289Reference NumberQF50XFVCR50-1.55A 1.55Tube O.D. 0.5Flange Type QF503D CADLoginDrawingLoginUnit Price$98.00-
Part ID4000290Reference NumberQF50XFVCR75-2.15A 2.15Tube O.D. 0.75Flange Type QF503D CADLoginDrawingLoginUnit Price$137.00-
