Features

  • High vacuum rating
  • CF flange is manufactured from 304 stainless steel
  • VCR® fitting is manufactured from 316 stainless steel

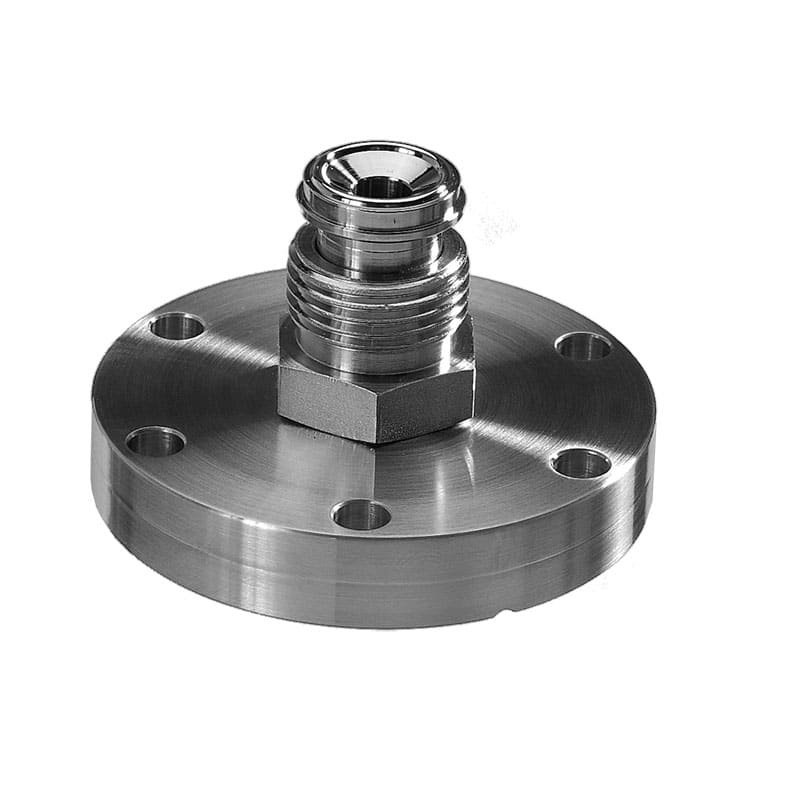

  • Adapts from VCR® fitting to CF flange

Options

  • Additional material: 316LN (CF flange)

Swagelok® and VCR® are registered trademarks of Swagelok Company of Solon, Ohio.

*Dimensions are in inches unless otherwise specified

Part IDReference NumberA Tube O.D. 3D CADDrawingUnit PriceIn StockQty, Add To Cart
Part ID5000627Reference NumberCF133XMVCR25-1.41A 1.33Tube O.D. 0.253D CADLoginDrawingLoginUnit Price$80.00Contact
Part ID5000628Reference NumberCF133XMVCR38-1.65A 1.33Tube O.D. 0.383D CADLoginDrawingLoginUnit Price$100.00Contact
Part ID5000629Reference NumberCF275XMVCR25-1.41A 2.75Tube O.D. 0.253D CADLoginDrawingLoginUnit Price$90.00Contact
Part ID5000630Reference NumberCF275XMVCR38-1.71A 2.75Tube O.D. 0.383D CADLoginDrawingLoginUnit Price$108.003
Part ID5000631Reference NumberCF275XMVCR50-1.90A 2.75Tube O.D. 0.53D CADLoginDrawingLoginUnit Price$105.00Contact
