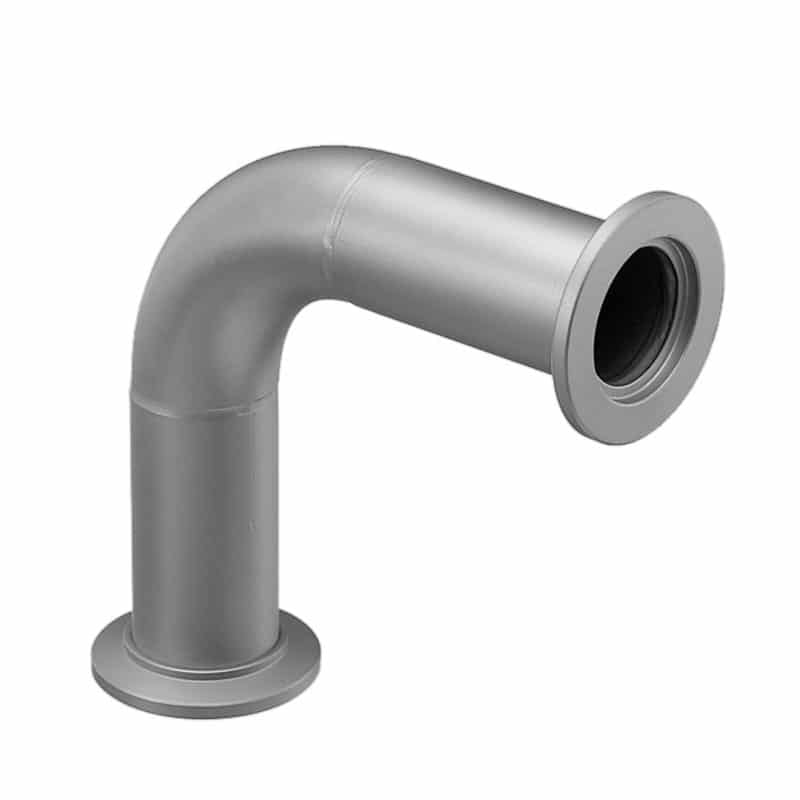

ISO-QF (KF) 90 Elbow, Long Radius
Elbows are manufactured with a flange on each end of a curved section of tubing. Elbows accommodate turns or alignment considerations for vacuum system design.
Features
- High Vacuum Rated to 1×10-8 Torr
- Bakeable to 200°C
- Quick sealing and disassembly
Specifications
- Materials:
- Flanges: 304L Stainless Steel
- Fitting: 304 Stainless Steel
*Dimensions are in inches unless otherwise specified
| Part ID | Reference Number | A | 3D CAD | Drawing | Unit Price | In Stock | Qty, Add To Cart | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part ID | 4000462 | Reference Number | QF16-075-E90LR-2.70 | A | 2.7 | 3D CAD | Login | Drawing | Login | Unit Price | $94.80 | 66 | |
| Part ID | 4000463 | Reference Number | QF25-100-E90LR-3.64 | A | 3.64 | 3D CAD | Login | Drawing | Login | Unit Price | $116.70 | Contact | |
| Part ID | 4000464 | Reference Number | QF40-150-E90LR-5.12 | A | 5.12 | 3D CAD | Login | Drawing | Login | Unit Price | $99.00 | Contact | |
| Part ID | 4000465 | Reference Number | QF50-200-E90LR-5.52 | A | 5.52 | 3D CAD | Login | Drawing | Login | Unit Price | $158.65 | 6 |
