D-Sub Feedthroughs
Subminiature D (D-Sub) feedthroughs pack multiple signal and instrumentation conductors into a compact, high-density connector while holding vacuum integrity across HV and UHV systems. ANCORP’s MIL-C-24308 line offers 9-, 15-, and 25-contact configurations rated to 500 V and 5 A per pin, on ConFlat, KF40, KF50, and ISO flanges, with optional UHV vacuum-side connectors. Bakeable to 250 °C, they’re ideal for dense wiring in research, semiconductor, and vacuum coating systems.
*Dimensions are in inches unless otherwise specified
| Part ID | Reference Number | Feedthrough Type | Connector Interface | Configuration | Pin Count | Voltage | Current | Flange Type | Flange Size | Vacuum Range | 3D CAD | Unit Price | In Stock | Qty, Add To Cart | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

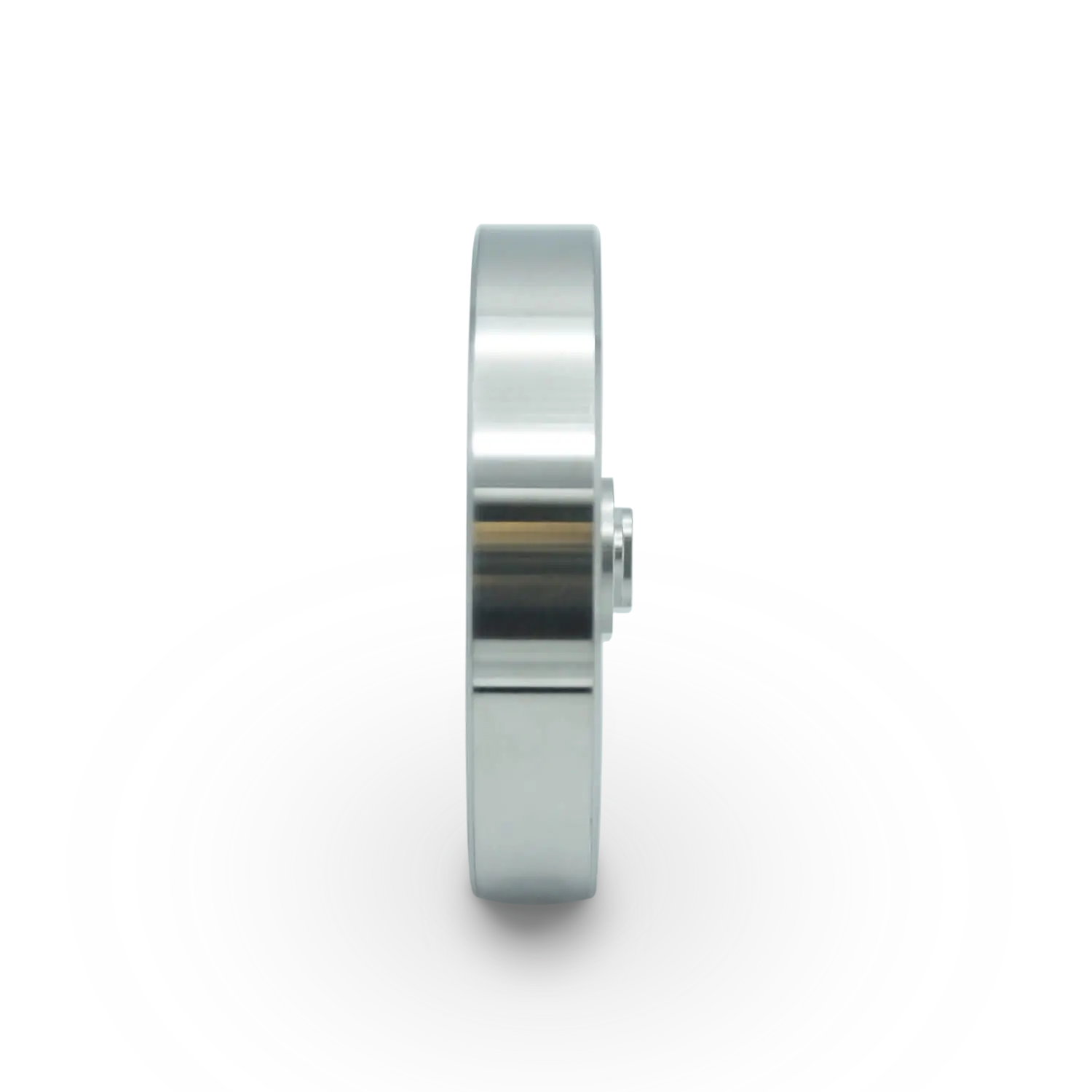

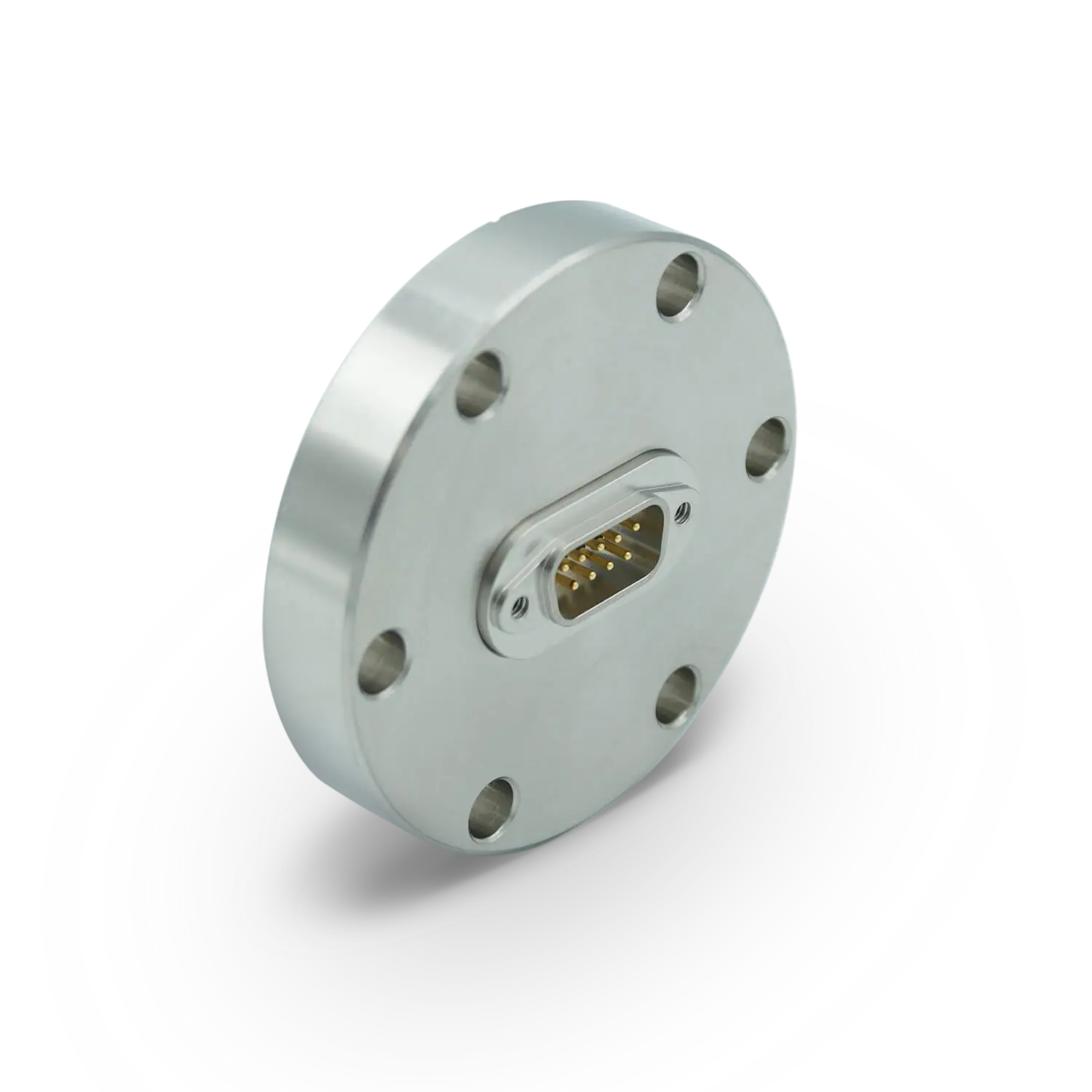

| Part ID | 2100148 | Reference Number | CF275XMPD-FTEC-9P-500V-5A | Feedthrough Type | Multipin | Connector Interface | Subminiature D-Type (MIL-C-24308) | Configuration | Single-Ended | Pin Count | 9 | Voltage | 500 V | Current | 5 A/pin | Flange Type | ConFlat | Flange Size | 2.75 | Vacuum Range | 1x10-10 Torr | 3D CAD | Login | Unit Price | $257.00 | Contact | |
| Part ID | 2100149 | Reference Number | CF450XMPD-FTEC-15P-500V-5A | Feedthrough Type | Multipin | Connector Interface | Subminiature D-Type (MIL-C-24308) | Configuration | Single-Ended | Pin Count | 15 | Voltage | 500 V | Current | 5 A/pin | Flange Type | ConFlat | Flange Size | 4.50 | Vacuum Range | 1x10-10 Torr | 3D CAD | Login | Unit Price | $348.00 | Contact | |
| Part ID | 2100150 | Reference Number | CF450XMPD-FTEC-25P-500V-5A | Feedthrough Type | Multipin | Connector Interface | Subminiature D-Type (MIL-C-24308) | Configuration | Single-Ended | Pin Count | 25 | Voltage | 500 V | Current | 5 A/pin | Flange Type | ConFlat | Flange Size | 4.50 | Vacuum Range | 1x10-10 Torr | 3D CAD | Login | Unit Price | $372.00 | Contact | |
| Part ID | 2100151 | Reference Number | QF40XMPD-FTEC-9P-500V-5A | Feedthrough Type | Multipin | Connector Interface | Subminiature D-Type (MIL-C-24308) | Configuration | Single-Ended | Pin Count | 9 | Voltage | 500 V | Current | 5 A/pin | Flange Type | KF40 (QF40) | Flange Size | 2.16 | Vacuum Range | 1x10-8 Torr | 3D CAD | Login | Unit Price | $253.00 | Contact | |
| Part ID | 2100152 | Reference Number | QF50XMPD-FTEC-15P-500V-5A | Feedthrough Type | Multipin | Connector Interface | Subminiature D-Type (MIL-C-24308) | Configuration | Single-Ended | Pin Count | 15 | Voltage | 500 V | Current | 5 A/pin | Flange Type | KF50 (QF50) | Flange Size | 2.95 | Vacuum Range | 1x10-8 Torr | 3D CAD | Login | Unit Price | $313.00 | Contact | |
| Part ID | 2100153 | Reference Number | LF63XMPD-FTEC-25P-500V-5A | Feedthrough Type | Multipin | Connector Interface | Subminiature D-Type (MIL-C-24308) | Configuration | Single-Ended | Pin Count | 25 | Voltage | 500 V | Current | 5 A/pin | Flange Type | ISO-K (LF63) | Flange Size | 3.74 | Vacuum Range | 1x10-8 Torr | 3D CAD | Login | Unit Price | $372.00 | Contact |
