Thermocouple Feedthroughs

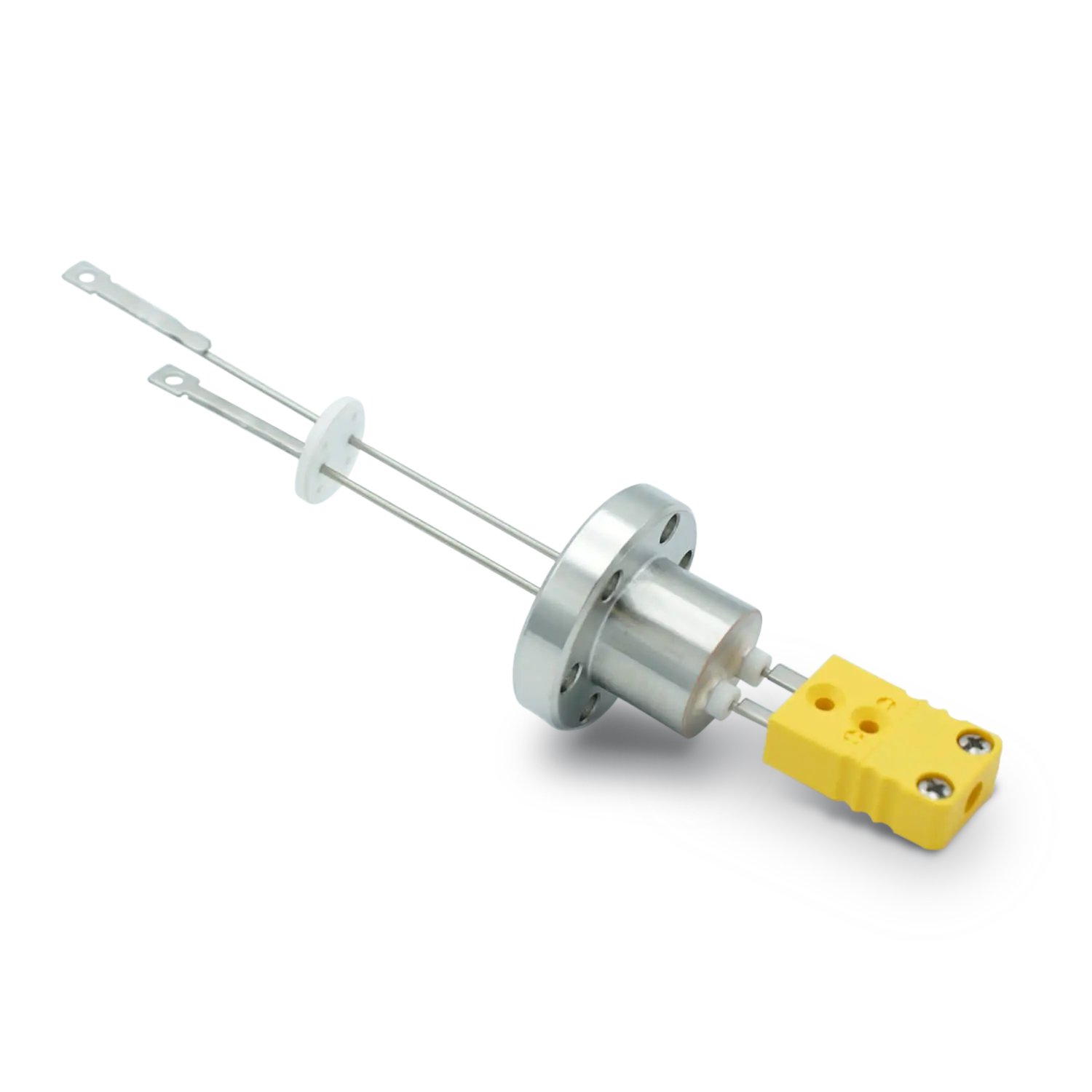

Thermocouple feedthroughs bring accurate in-vacuum temperature measurement across the vacuum boundary while maintaining vacuum integrity in HV and UHV chambers. ANCORP’s Type K line carries one or two matched thermocouple pairs through miniature connectors on both the air and vacuum sides, on 1.33″/2.75″ ConFlat and KF16 flanges. Well suited for temperature monitoring in research, semiconductor, and vacuum coating applications.
*Dimensions are in inches unless otherwise specified
| Part ID | Reference Number | Feedthrough Type | Thermocouple Type | Connection Type | Configuration | Pairs | Flange Type | Flange Size | Vacuum Range | 3D CAD | Unit Price | In Stock | Qty, Add To Cart | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part ID | 2100154 | Reference Number | CF133XTC-FTEC-1P-KTYPE | Feedthrough Type | Thermocouple | Thermocouple Type | K | Connection Type | Miniature TC Connector | Configuration | Double-Ended | Pairs | 1 | Flange Type | ConFlat | Flange Size | 1.33 | Vacuum Range | 1x10-10 Torr | 3D CAD | Login | Unit Price | $92.00 | Contact | |
| Part ID | 2100155 | Reference Number | CF275XTC-FTEC-1P-KTYPE | Feedthrough Type | Thermocouple | Thermocouple Type | K | Connection Type | Miniature TC Connector | Configuration | Double-Ended | Pairs | 1 | Flange Type | ConFlat | Flange Size | 2.75 | Vacuum Range | 1x10-10 Torr | 3D CAD | Login | Unit Price | $110.00 | Contact | |
| Part ID | 2100156 | Reference Number | QF16XTC-FTEC-1P-KTYPE | Feedthrough Type | Thermocouple | Thermocouple Type | K | Connection Type | Miniature TC Connector | Configuration | Double-Ended | Pairs | 1 | Flange Type | KF16 (QF16) | Flange Size | 1.18 | Vacuum Range | 1x10-8 Torr | 3D CAD | Login | Unit Price | $92.00 | Contact | |
| Part ID | 2100157 | Reference Number | CF133XTC-FTEC-2P-KTYPE | Feedthrough Type | Thermocouple | Thermocouple Type | K | Connection Type | Miniature TC Connector | Configuration | Double-Ended | Pairs | 2 | Flange Type | ConFlat | Flange Size | 1.33 | Vacuum Range | 1x10-10 Torr | 3D CAD | Login | Unit Price | $151.00 | Contact | |
| Part ID | 2100158 | Reference Number | CF275XTC-FTEC-2P-KTYPE | Feedthrough Type | Thermocouple | Thermocouple Type | K | Connection Type | Miniature TC Connector | Configuration | Double-Ended | Pairs | 2 | Flange Type | ConFlat | Flange Size | 2.75 | Vacuum Range | 1x10-10 Torr | 3D CAD | Login | Unit Price | $159.00 | Contact | |
| Part ID | 2100159 | Reference Number | QF16XTC-FTEC-2P-KTYPE | Feedthrough Type | Thermocouple | Thermocouple Type | K | Connection Type | Miniature TC Connector | Configuration | Double-Ended | Pairs | 2 | Flange Type | KF16 (QF16) | Flange Size | 1.18 | Vacuum Range | 1x10-8 Torr | 3D CAD | Login | Unit Price | $151.00 | Contact |
