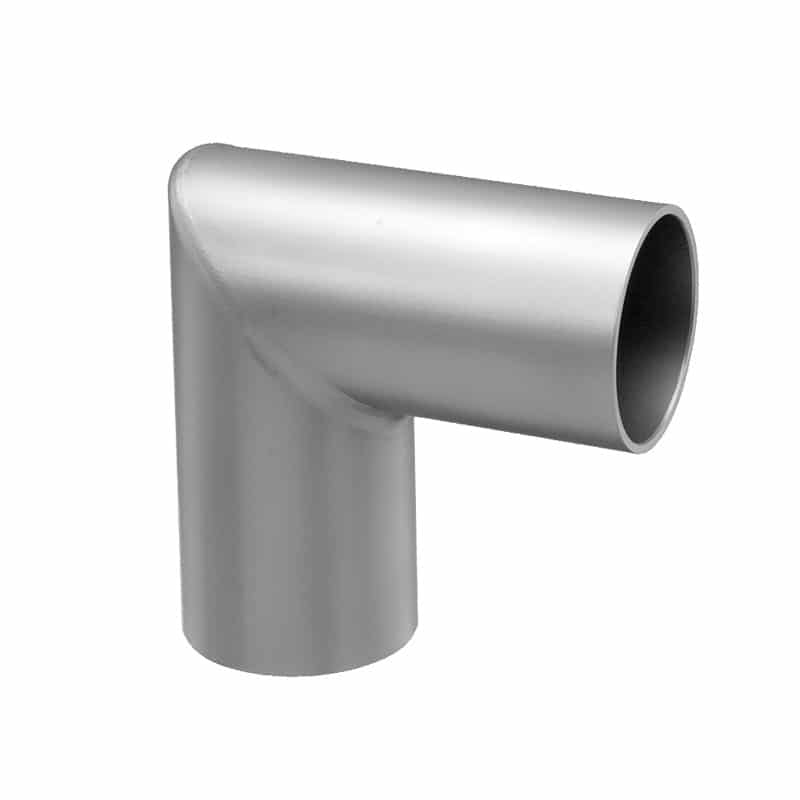

Weldable Elbow - 90 Mitered
90-degree mitered elbows are pipe fittings that facilitate a 90-degree change in the direction of a pipeline. It is characterized by a mitered or beveled cut, allowing for precise alignment and connection between two pipes at a right angle.
Features
- Mitered angle
Specifications
- Manufactured from 304 stainless steel
*Dimensions are in inches unless otherwise specified
| Part ID | Reference Number | Tube O.D. | Centerline A | Wall Thickness | 3D CAD | Drawing | Unit Price | In Stock | Qty, Add To Cart | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part ID | 0700310 | Reference Number | 075X0.065-WE90M-1.00 | Tube O.D. | 0.75 | Centerline A | 1 | Wall Thickness | 0.065 | 3D CAD | Login | Drawing | Login | Unit Price | $25.00 | Contact | |
| Part ID | 0700315 | Reference Number | 075X0.065-WE90M-1.40 | Tube O.D. | 0.75 | Centerline A | 1.4 | Wall Thickness | 0.065 | 3D CAD | Login | Drawing | Login | Unit Price | $45.00 | Contact | |
| Part ID | 0700325 | Reference Number | 100×0.065-WE90M-1.88 | Tube O.D. | 1 | Centerline A | 1.88 | Wall Thickness | 0.065 | 3D CAD | Login | Drawing | Login | Unit Price | $20.00 | 45 | |
| Part ID | 0700330 | Reference Number | 150X0.065-WE90M-2.25 | Tube O.D. | 1.5 | Centerline A | 2.25 | Wall Thickness | 0.065 | 3D CAD | Login | Drawing | Login | Unit Price | $35.00 | 5 | |
| Part ID | 0700335 | Reference Number | 150X0.065-WE90M-2.39 | Tube O.D. | 1.5 | Centerline A | 2.39 | Wall Thickness | 0.065 | 3D CAD | Login | Drawing | Login | Unit Price | $37.00 | 5 | |
| Part ID | 0700340 | Reference Number | 200X0.065-WE90M-2.59 | Tube O.D. | 2 | Centerline A | 2.59 | Wall Thickness | 0.065 | 3D CAD | Login | Drawing | Login | Unit Price | $65.00 | Contact | |
| Part ID | 0700345 | Reference Number | 200X0.065-WE90M-2.98 | Tube O.D. | 2 | Centerline A | 2.98 | Wall Thickness | 0.065 | 3D CAD | Login | Drawing | Login | Unit Price | $50.00 | 6 | |
| Part ID | 0700350 | Reference Number | 250X0.065-WE90M-3.00 | Tube O.D. | 2.5 | Centerline A | 3 | Wall Thickness | 0.065 | 3D CAD | Login | Drawing | Login | Unit Price | $75.00 | 1 | |
| Part ID | 0700355 | Reference Number | 250X0.065-WE90M-3.21 | Tube O.D. | 2.5 | Centerline A | 3.21 | Wall Thickness | 0.065 | 3D CAD | Login | Drawing | Login | Unit Price | $51.00 | 15 | |
| Part ID | 0700360 | Reference Number | 250X0.065-WE90M-3.75 | Tube O.D. | 2.5 | Centerline A | 3.75 | Wall Thickness | 0.065 | 3D CAD | Login | Drawing | Login | Unit Price | $95.00 | Contact | |
| Part ID | 0700365 | Reference Number | 300X0.065-WE90M-2.97 | Tube O.D. | 3 | Centerline A | 2.97 | Wall Thickness | 0.065 | 3D CAD | Login | Drawing | Login | Unit Price | $110.00 | 2 | |
| Part ID | 0700370 | Reference Number | 400X0.083-WE90M-3.88 | Tube O.D. | 4 | Centerline A | 3.88 | Wall Thickness | 0.083 | 3D CAD | Login | Drawing | Login | Unit Price | $165.00 | Contact | |
| Part ID | 0700375 | Reference Number | 400X0.083-WE90M-4.87 | Tube O.D. | 4 | Centerline A | 4.87 | Wall Thickness | 0.083 | 3D CAD | Login | Drawing | Login | Unit Price | $200.00 | 4 | |
| Part ID | 0700380 | Reference Number | 500X0.083-WE90M-4.25 | Tube O.D. | 5 | Centerline A | 4.25 | Wall Thickness | 0.083 | 3D CAD | Login | Drawing | Login | Unit Price | $210.00 | Contact | |
| Part ID | 0700385 | Reference Number | 600X0.083-WE90M-5.00 | Tube O.D. | 6 | Centerline A | 5 | Wall Thickness | 0.083 | 3D CAD | Login | Drawing | Login | Unit Price | $210.00 | 4 | |
| Part ID | 0700390 | Reference Number | 600X0.083-WE90M-6.06 | Tube O.D. | 6 | Centerline A | 6.06 | Wall Thickness | 0.083 | 3D CAD | Login | Drawing | Login | Unit Price | $250.00 | Contact | |
| Part ID | 0700395 | Reference Number | 800X0.120-WE90M-7.00 | Tube O.D. | 8 | Centerline A | 7 | Wall Thickness | 0.12 | 3D CAD | Login | Drawing | Login | Unit Price | $440.00 | Contact | |
| Part ID | 0700400 | Reference Number | 1000X0.120-WE90M-9.50 | Tube O.D. | 10 | Centerline A | 9.5 | Wall Thickness | 0.12 | 3D CAD | Login | Drawing | Login | Unit Price | $960.00 | Contact |
