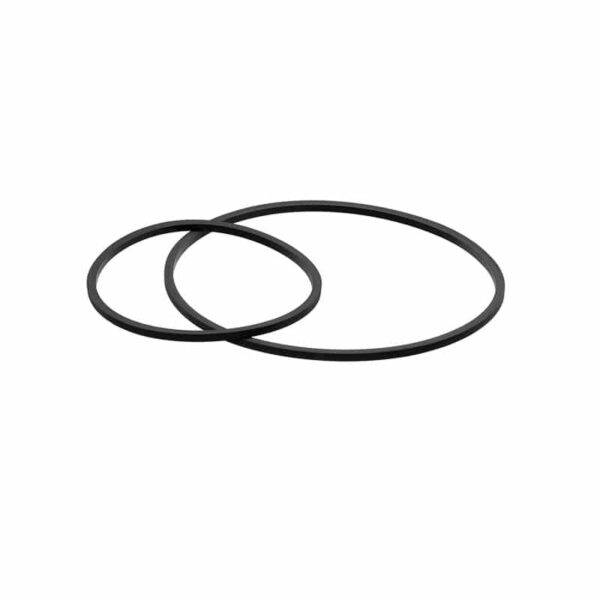

REPRESENTATIVE IMAGE

Attributes

Description Fluorocarbon (FKM) Gaskets (1)
Use with Flange CF462
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF462-GA-VT

Fluorocarbon (FKM) gasket for 4.62 in. (DN 75) ConFlat Flange

$16.00

Available on backorder

Part ID: 0604005


This alternative seal for the CF flange system is a vacuum grade fluorocarbon elastomer gasket that is compressed between the knife-edges of two CF flanges to create a seal capable of achieving high vacuum pressure. These gaskets are precisely lathe cut, de-burred, cleaned, and packaged to eliminate and prevent shedding or rips.

Features

  • Multi-use seal

Specifications

  • Materials: Fluorocarbon elastomer
  • High vacuum rating approx. 1×10-8 torr
  • Temperature range: -20°C up to 150°C (intermittent use to 200°C)
