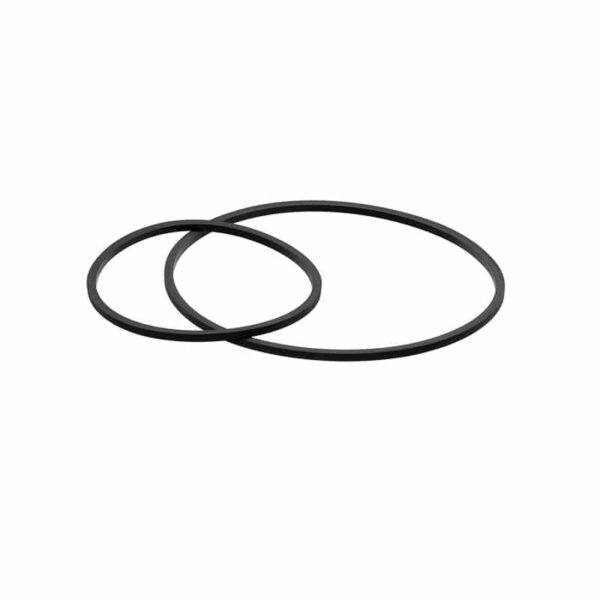

REPRESENTATIVE IMAGE

Attributes

Description Fluorocarbon (FKM) Gaskets (1)
Use with Flange CF1325
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF1325-GA-VT

Fluorocarbon (FKM) gasket for 13.25 in. (DN 275) ConFlat Flange

Request a Quote for Price

Available on backorder

Part ID: 0604011









This alternative seal for the CF flange system is a vacuum grade fluorocarbon elastomer gasket that is compressed between the knife-edges of two CF flanges to create a seal capable of achieving high vacuum pressure. These gaskets are precisely lathe cut, de-burred, cleaned, and packaged to eliminate and prevent shedding or rips.




Features






  • Multi-use seal
    •









Specifications






  • Materials: Fluorocarbon elastomer
    •

  •  High vacuum rating approx. 1×10-8 torr
    •

  •  Temperature range: -20°C up to 150°C (intermittent use to 200°C)
    •
