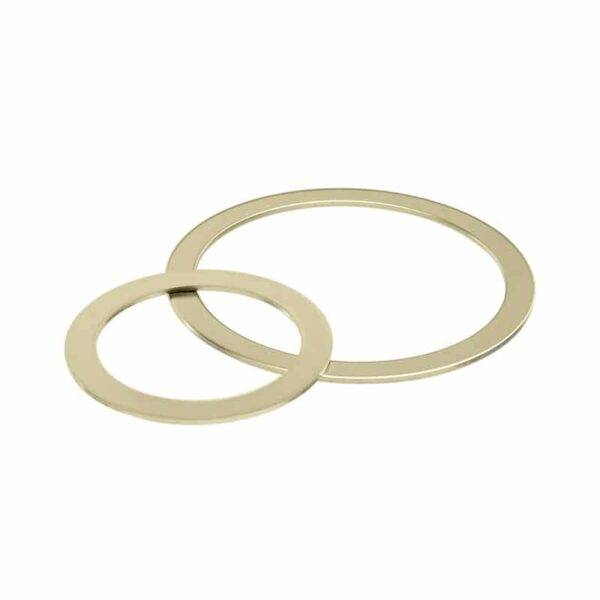

REPRESENTATIVE IMAGE

Attributes

Description Copper Gaskets (10)
Inner Diameter 1.01
Outer Diameter 1.29
Use with Flange CF212
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF212-GA-CO

Copper Gasket for 2.12 in. (DN 25) ConFlat Flange – 10 Pack

$25.00

305 in stock (can be backordered)

Part ID: 0604022









The basic seal for the CF flange system is an oxygen free electronic grade (OFE) and high thermal conductivity (OFHC) copper gasket that is compressed between the knife-edges of two CF flanges to create a seal capable of achieving ultra high vacuum pressures. These gaskets are precisely punched, de-burred, chemically treated and packaged to eliminate and prevent surface imperfections.




Features






  • Single-use seal
    •









Specifications






  • Materials: OFE copper
    •

  • Pressure range: UHV (approx. 1×10-13 Torr)
    •

  • Temperature range: -200°C up to 450°C
    •
