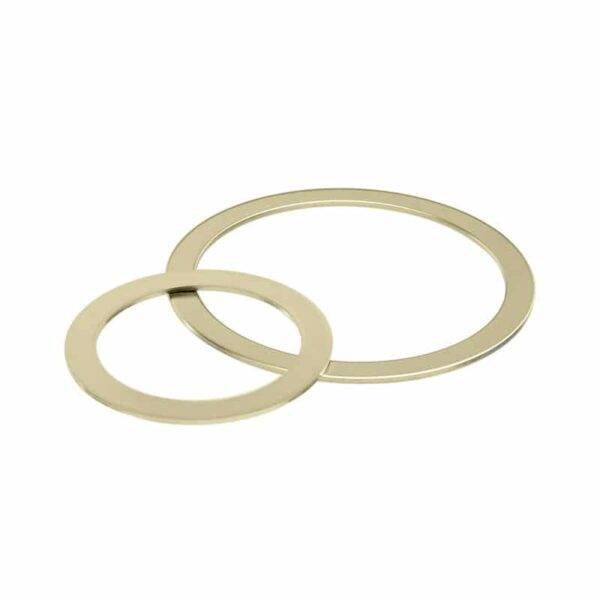

REPRESENTATIVE IMAGE

Attributes

Description Copper Gaskets (1)
Inner Diameter 14.135
Outer Diameter 14.81
Use with Flange CF1650
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF1650-GA-CO

Copper Gasket for 16.50 in. (DN 350) ConFlat Flange

$75.00

Available on backorder

Part ID: 0604049









The basic seal for the CF flange system is an oxygen free electronic grade (OFE) and high thermal conductivity (OFHC) copper gasket that is compressed between the knife-edges of two CF flanges to create a seal capable of achieving ultra high vacuum pressures. These gaskets are precisely punched, de-burred, chemically treated and packaged to eliminate and prevent surface imperfections.




Features






  • Single-use seal
    •









Specifications






  • Materials: OFE copper
    •

  • Pressure range: UHV (approx. 1×10-13 Torr)
    •

  • Temperature range: -200°C up to 450°C
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    Description Copper Gaskets (1)



                    Inner Diameter 14.135



                    Outer Diameter 14.81



                    Use with Flange CF1650



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
