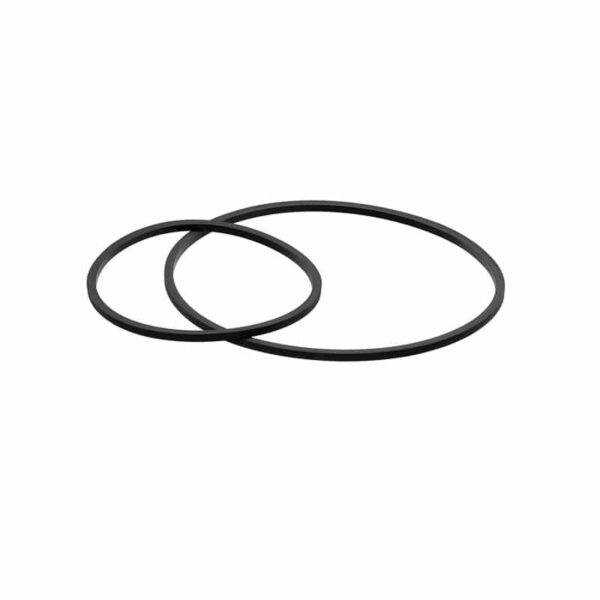

REPRESENTATIVE IMAGE

Attributes

DescriptionFluorocarbon (FKM) Gasket (1)
Use with FlangeWF2700
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

WF2700-GA-VT

Wire Seal Fluorocarbon (FKM) Gasket for WF2700-HBK

Part ID: 0606526
$65.00
Standard Lead Time:
Contact
Available on backorder


This alternative seal for the Wire Seal flange system is a vacuum grade fluorocarbon elastomer gasket that is compressed between a Male and Female Wire Seal flange to create a seal capable of achieving high vacuum pressure. This seal is suitable for chemical applications.
Features
  • Single-use seal
Specifications
  • Materials: Fluorocarbon elastomer
  •  Pressure range: HV (approx. 1×10-8 Torr)
  •  Temperature range: -20°C up to 150°C (intermittent use to 200°C)
