12-QDTK-1.32
1/8 in. Thick Wall Disconnect Coupling
Part ID: 1000102
$44.00
Need more than what you see in stock? Let us know and we can likely assemble in less than a day.
| Standard Lead Time: | Contact |
|---|

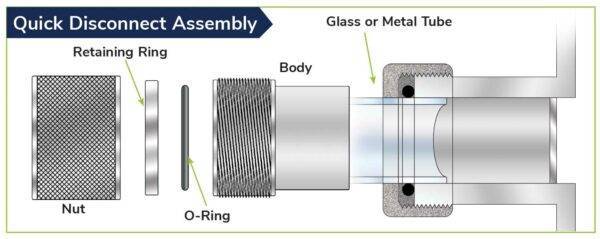

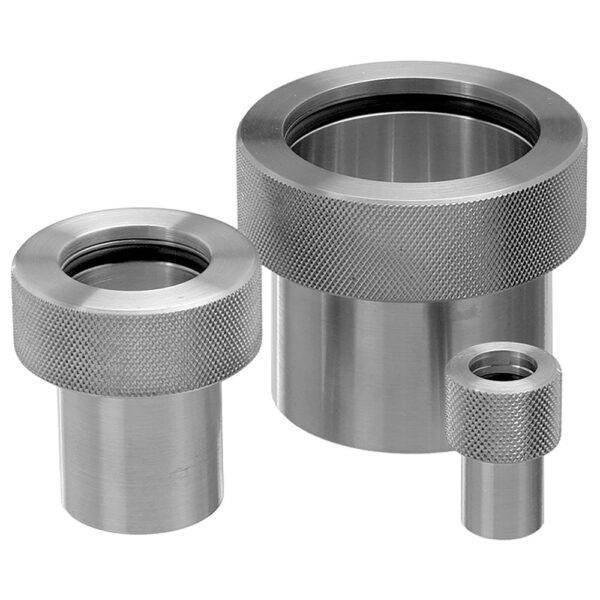

Quick disconnects are a fast and easy way to make and break a vacuum seal onto metal or glass tubing.
Features
- Vacuum rating: HV design 1×10-8 Torr
- Quick disconnects come standard with Buna-N seals (FKM is available)
- Quickly make and break vacuum seals
- Designed to accept standard inch tubing O.D.’s
- Infinitely rotatable, sexless connection to tubing or gauges
- Reusable seals
Specifications
- Leak rating: <1×10-9 std. cc/s helium
- Body, plug, and retaining ring manufactured from 304L stainless steel
- Nut manufactured from 303 stainless steel
- Seals: Standard – Buna-N O-ring (FKM O-ring available upon request)
Accordion #1
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Accordion #2
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Attributes

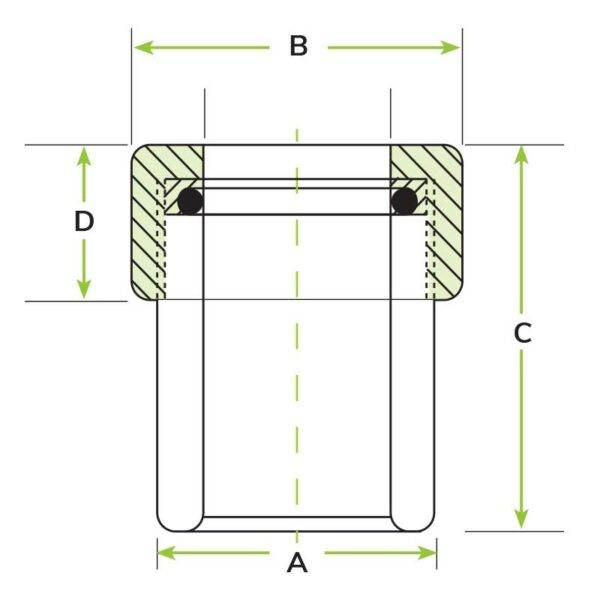

All dimensions are in inches unless otherwise specified.
