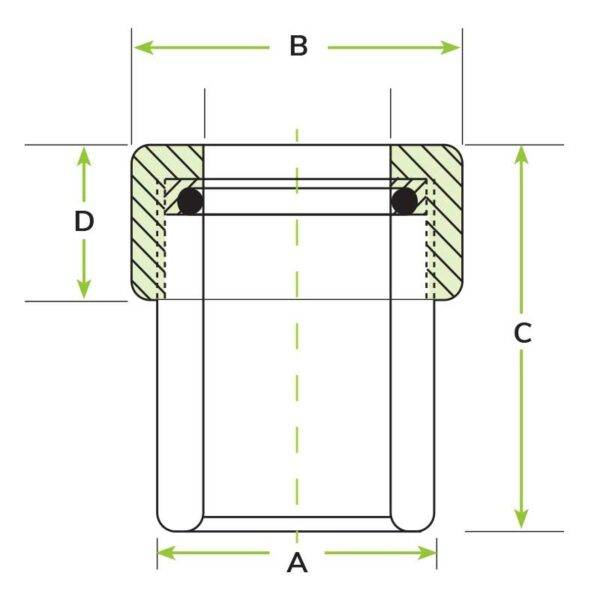

Attributes

A 0.38
B 0.63
C 1.32
D 0.63
Accepts Tube O.D. 0.187
DrawingLogin
Wall Thickness 0.865
Accepts Tube O.D. 0.187
3D CADLogin
DrawingLogin

18-QDTN-1.32

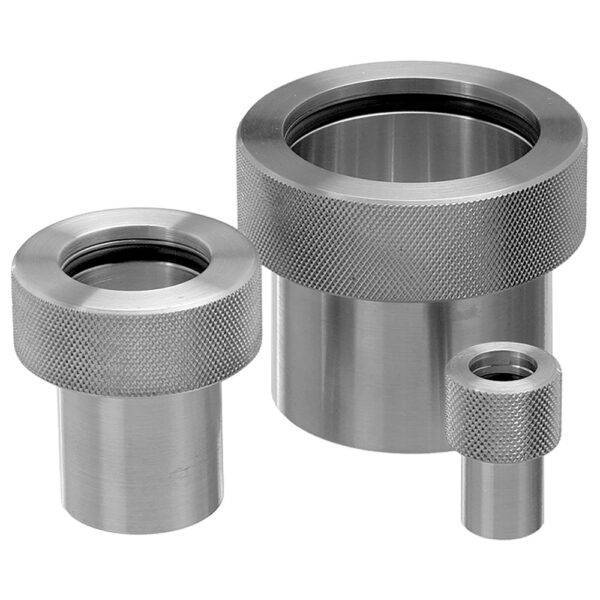

Thin Wall Disconnect Coupling, 0.188″

$36.90

6 in stock (can be backordered)

Part ID: 1000103







Specifications


  • Vacuum rating: HV design 1×10-8 Torr
    •
  • Leak rating: <1x10M-9 std. cc/s helium
    •

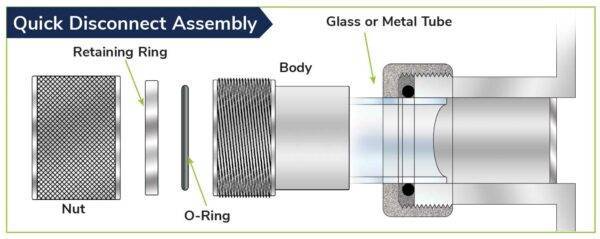

  • Body, plug, nut, and retaining ring manufactured from 304 stainless steel
    •
  • Seals: Standard – Buna-N O-ring (FKM O-ring available upon request)
    •



Features


  • Interchangeable with other quick disconnect style fittings
    •
  • Quick disconnects come standard with Buna-N seals (FKM is available)
    •
  • Quickly make and break vacuum seals
    •
  • Designed to accept standard inch tubing O.D.’s
    •
  • Infinitely rotatable, sexless connection to tubing or gauges
    •
  • Reusable seals
    •
