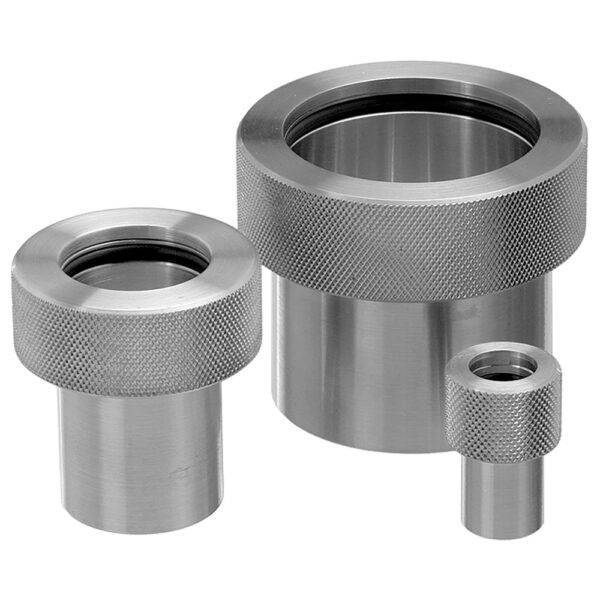

REPRESENTATIVE IMAGE

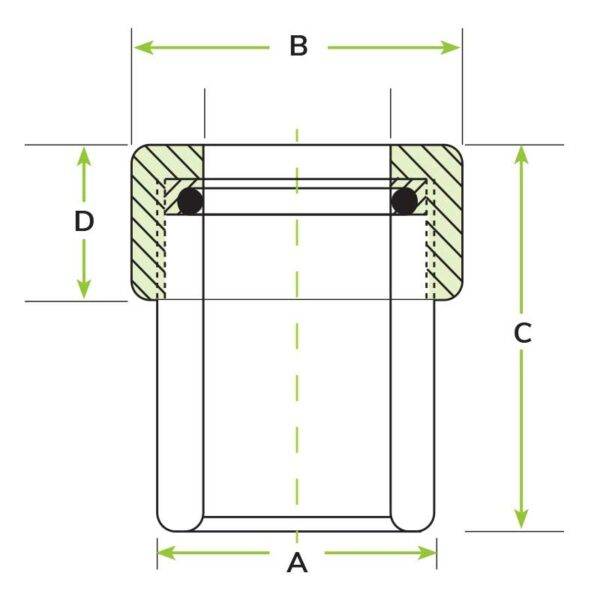

Attributes

A 0.5
B 0.88
C 1.32
D 0.63
Accepts Tube O.D. 0.375
Wall Thickness 0.055
Accepts Tube O.D. 0.375
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

38-QDTN-1.32

3/8 in. Thin Wall Disconnect Coupling

Original price was: $44.00.Current price is: $39.60.

Need more than what you see in stock? Let us know and we can likely assemble in less than a day.

1 in stock (can be backordered)

Part ID: 1000108


Specifications

  • Vacuum rating: HV design 1×10-8 Torr
  • Leak rating: <1x10M-9 std. cc/s helium

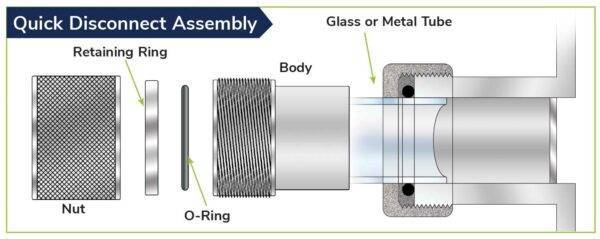

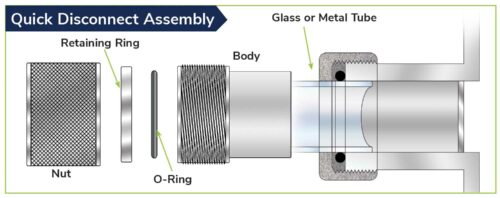

  • Body, plug, nut, and retaining ring manufactured from 304 stainless steel
  • Seals: Standard – Buna-N O-ring (FKM O-ring available upon request)

Features

  • Interchangeable with other quick disconnect style fittings
  • Quick disconnects come standard with Buna-N seals (FKM is available)
  • Quickly make and break vacuum seals
  • Designed to accept standard inch tubing O.D.’s
  • Infinitely rotatable, sexless connection to tubing or gauges
  • Reusable seals
