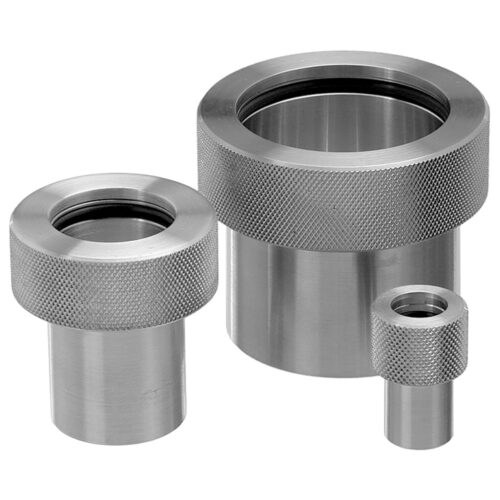

REPRESENTATIVE IMAGE

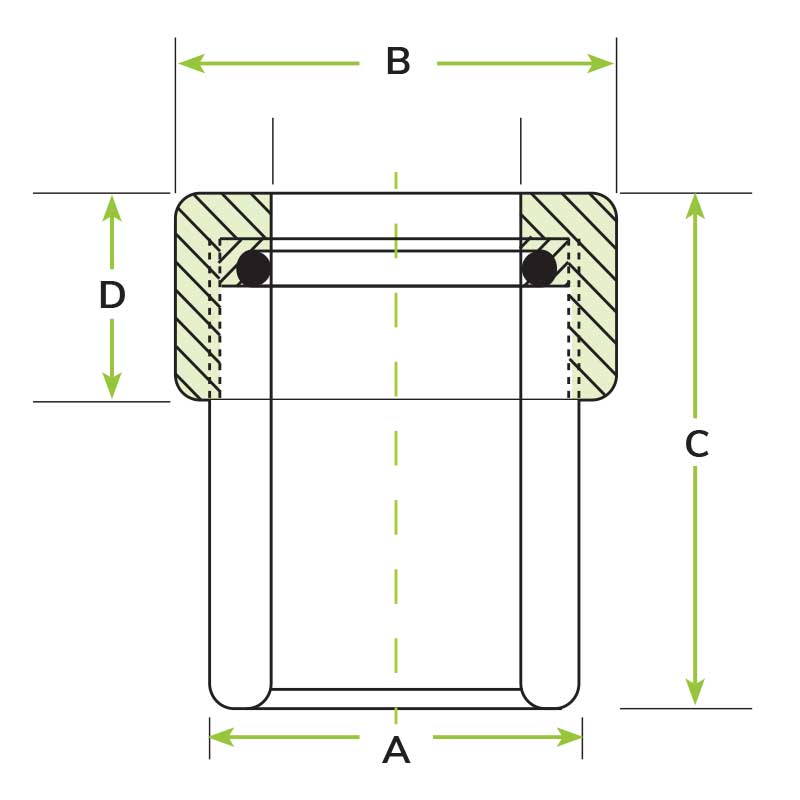

Attributes

A 0.75
B 0.88
C 1.32
D 0.63
Accepts Tube O.D. 0.5
DrawingLogin
Wall Thickness 0.117
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

50-QDTK-1.32

1/2 in. Thick Wall Disconnect Coupling

Original price was: $50.00.Current price is: $37.50.

Your Price

Need more than what you see in stock? Let us know and we can likely assemble in less than a day.

3 in stock (can be backordered)

Part ID: 1000111











Features






  • Vacuum rating: HV design 1×10-8 Torr
    •

  • Quick disconnects come standard with Buna-N seals (FKM is available)
    •

  • Quickly make and break vacuum seals
    •

  • Designed to accept standard inch tubing O.D.’s
    •

  • Infinitely rotatable, sexless connection to tubing or gauges
    •

  • Reusable seals
    •










Specifications






  • Leak rating: <1×10-9 std. cc/s helium
    •

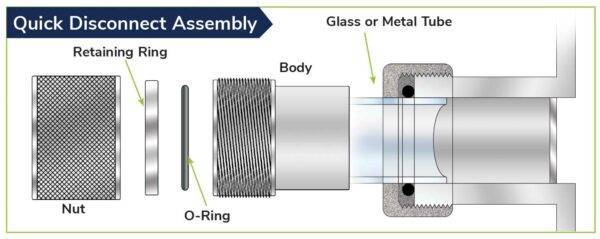

  • Body, plug, nut, and retaining ring manufactured from 304L stainless steel
    •

  • Seals: Standard – Buna-N O-ring (FKM O-ring available upon request)
    •




























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A  0.75



                    B  0.88



                    C  1.32



                    D  0.63



                    Accepts Tube O.D. 0.5



                    DrawingLogin







                    Wall Thickness 0.117



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
