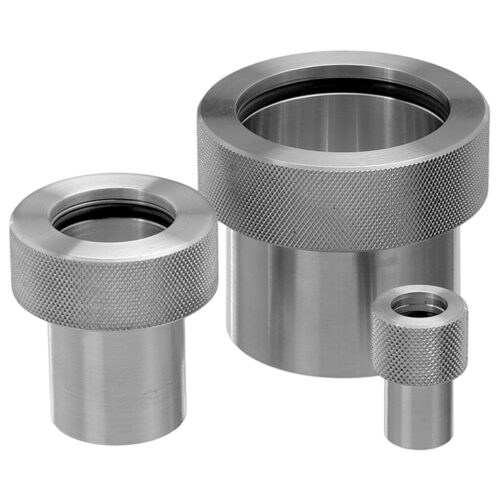

100-QDTN-1.88

Specifications

• Vacuum rating: HV design 1×10^-8 Torr
• Leak rating: <1x10M^-9 std. cc/s helium
• Body, plug, nut, and retaining ring manufactured from 304 stainless steel
• Seals: Standard – Buna-N O-ring (PTFE O-ring available upon request)

Features

• Interchangeable with other quick disconnect style fittings
• Quick disconnects come standard with Buna-N seals (PTFE is available)
• Quickly make and break vacuum seals
• Designed to accept standard inch tubing O.D.’s
• Infinitely rotatable, sexless connection to tubing or gauges
• Reusable seals
