• 1000737
  • 1000737

REPRESENTATIVE IMAGE

Attributes

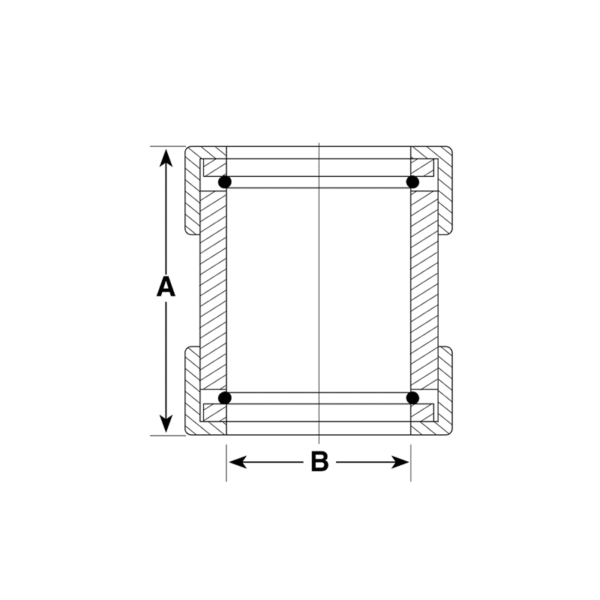

A 1.88
B 0.765
Accepts Tube O.D. 3/4
3D CADLogin
DrawingLogin
Wall Thickness 0.18

All dimensions are in inches unless otherwise specified.

75-QDU-1.885

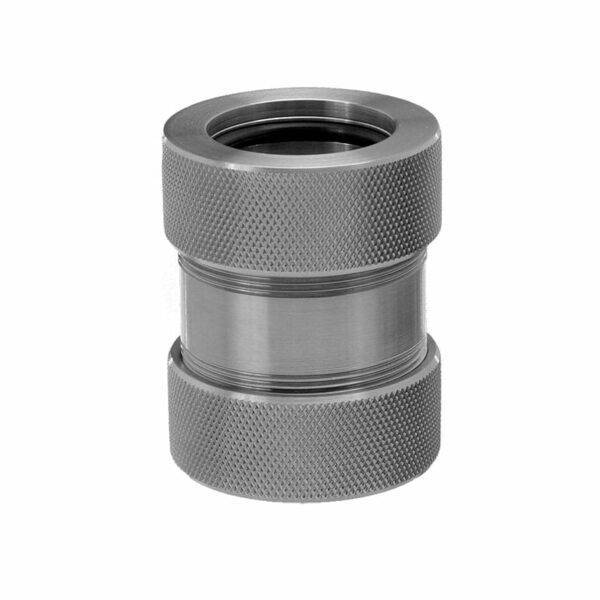

Thick Wall Union, 3/4″

$298.00

Need more than what you see in stock? Let us know and we can likely assemble in less than a day.

Available on backorder

Part ID: 1000735











Features






  • Vacuum rating of 1×10-8 torr
    •

  • Quickly connect and disconnect two sections of glass or metal tubing without welding
    •










Specifications






  • Body and retaining ring are manufactured from 304L stainless steel
    •

  • Nut is manufactured from 303 stainless steel
    •

  • Seals: Standard – Buna-N O-ring (FKM O-ring available upon request)
    •




























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 1.88



                    B 0.765



                    Accepts Tube O.D. 3/4



                    3D CADLogin



                    DrawingLogin







                    Wall Thickness 0.18

















All dimensions are in inches unless otherwise specified.
