CF275XTE-025-FTST-6.00

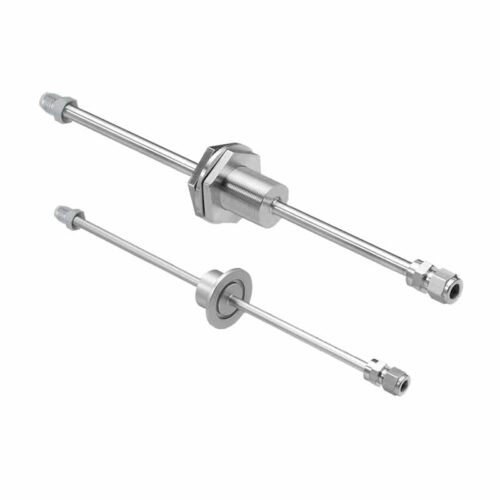

Fluid and gas feedthroughs transmit fluid or gasses into high and ultra-high vacuum chambers. These feedthroughs are available with multiple tubing and flange connection options.

Features

• Flanges and tubing manufactured from 304 stainless steel
• Fittings (VCR®, Swagelok®) made of 316 stainless steel
• Max. temperature:
  • CF flanged feedthroughs: 450°C
  • ISO-QF (KF) and baseplate feedthroughs: 150°C (200°C intermittent)
• Vacuum rating:
  • CF flanged feedthroughs: UHV 1×10^-13 Torr
  • ISO-QF (KF) and baseplate feedthroughs: HV 1×10^-8 Torr
