CF275XTE-025-FTDT-6.00

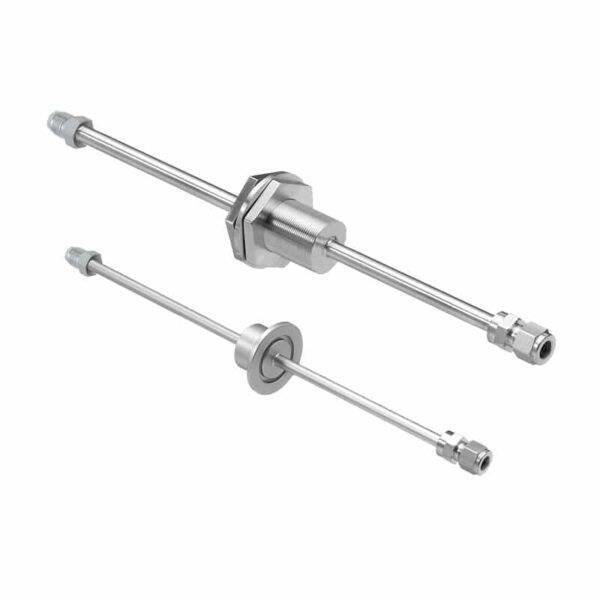

Double Gas Feedthrough with 2.75 in. (DN 40) ConFlat Flanges – 0.25 in. Tube Ends

Part ID: 2001009


















$0.00





































			Standard Lead Time:

Contact
















































Available on backorder


















































Fluid and gas feedthroughs transmit fluid or gasses into high and ultra-high vacuum chambers. These feedthroughs are available with multiple tubing and flange connection options.





Features




  • Flanges and tubing manufactured from 304 stainless steel
    •

  • Fittings (VCR®, Swagelok®) made of 316 stainless steel
    •

  • Max. temperature:



    • CF flanged feedthroughs: 450°C
      •

    • ISO-QF (KF) and baseplate feedthroughs: 150°C (200°C intermittent)
      •



    •

  • Vacuum rating:



    • CF flanged feedthroughs: UHV 1×10-13 Torr
      •

    • ISO-QF (KF) and baseplate feedthroughs: HV 1×10-8 Torr
      •



    •























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 4



                    B 2



                    C 2



                    D 4



                    Type Double Tube



                    Flange CF275



                    Figure 5



                    Connection 0.25 in. Tube Ends



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
