Attributes

A 5.5
B 3.5
C -
D -
Type Single Tube
Flange 1 in. baseplate
Figure 3
Connection 0.25 in. Male VCR
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

BP100XMVCR25-FTST-9.00

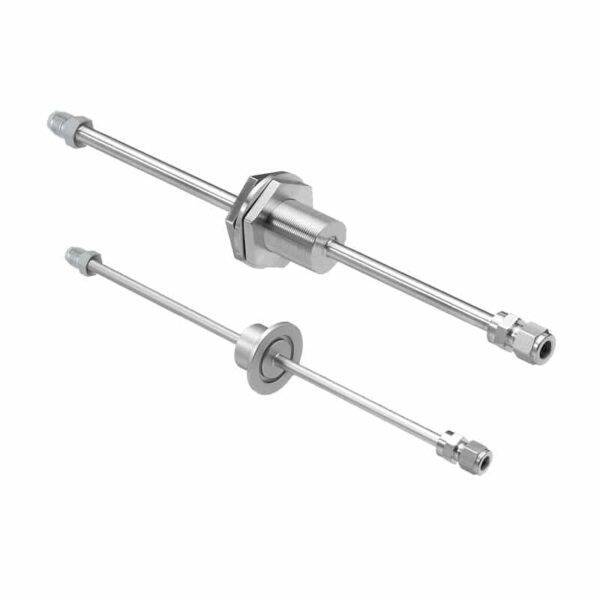

Gas 1 in. Baseplate Feedthrough Male VCR

Part ID: 2001036

































Request a Quote for Price























Available on backorder





















			Standard Lead Time:

Contact









































































Fluid and gas feedthroughs transmit fluid or gasses into high and ultra-high vacuum chambers. These feedthroughs are available with multiple tubing and flange connection options.





Features




  • Flanges and tubing manufactured from 304 stainless steel
    •

  • Fittings (VCR®, Swagelok®) made of 316 stainless steel
    •

  • Max. temperature:



    • CF flanged feedthroughs: 450°C
      •

    • ISO-QF (KF) and baseplate feedthroughs: 150°C (200°C intermittent)
      •



    •

  • Vacuum rating:



    • CF flanged feedthroughs: UHV 1×10-13 Torr
      •

    • ISO-QF (KF) and baseplate feedthroughs: HV 1×10-8 Torr
      •



    •























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 5.5



                    B 3.5



                    C -



                    D -



                    Type Single Tube



                    Flange 1 in. baseplate



                    Figure 3



                    Connection 0.25 in. Male VCR



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
