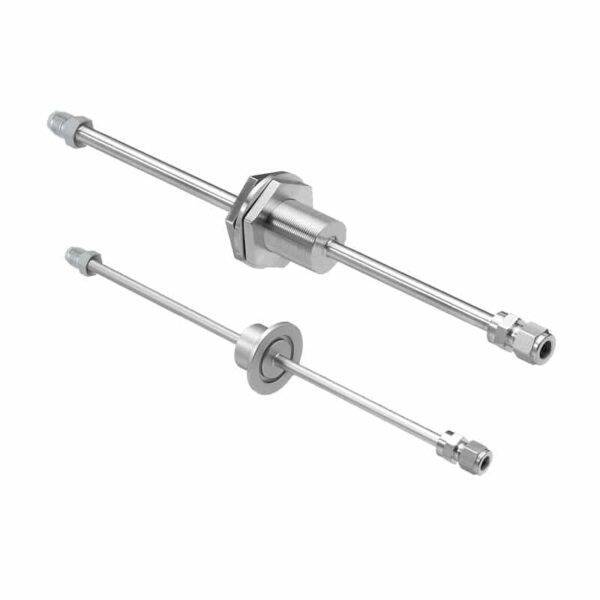

REPRESENTATIVE IMAGE

Attributes

A 5
B 3
C 3
D 5
Type Double Tube
Flange CF275
Flange 5
Connection 0.25 in. Male VCR
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF275XMVCR25-FTDT-8.00

Double Gas Feedthough with 2.75 in. (DN 40) ConFlat Flange – 0.25 in. Male VCR

$0.00

Available on backorder

Part ID: 2001039


Fluid and gas feedthroughs transmit fluid or gasses into high and ultra-high vacuum chambers. These feedthroughs are available with multiple tubing and flange connection options.



Features

  • Flanges and tubing manufactured from 304 stainless steel
  • Fittings (VCR®, Swagelok®) made of 316 stainless steel
  • Max. temperature:
    • CF flanged feedthroughs: 450°C
    • ISO-QF (KF) and baseplate feedthroughs: 150°C (200°C intermittent)
  • Vacuum rating:
    • CF flanged feedthroughs: UHV 1×10-13 Torr
    • ISO-QF (KF) and baseplate feedthroughs: HV 1×10-8 Torr
