Attributes

A 5.5
B 3.5
C -
D -
Type Single Tube
Flange 1 IN. BASEPLATE

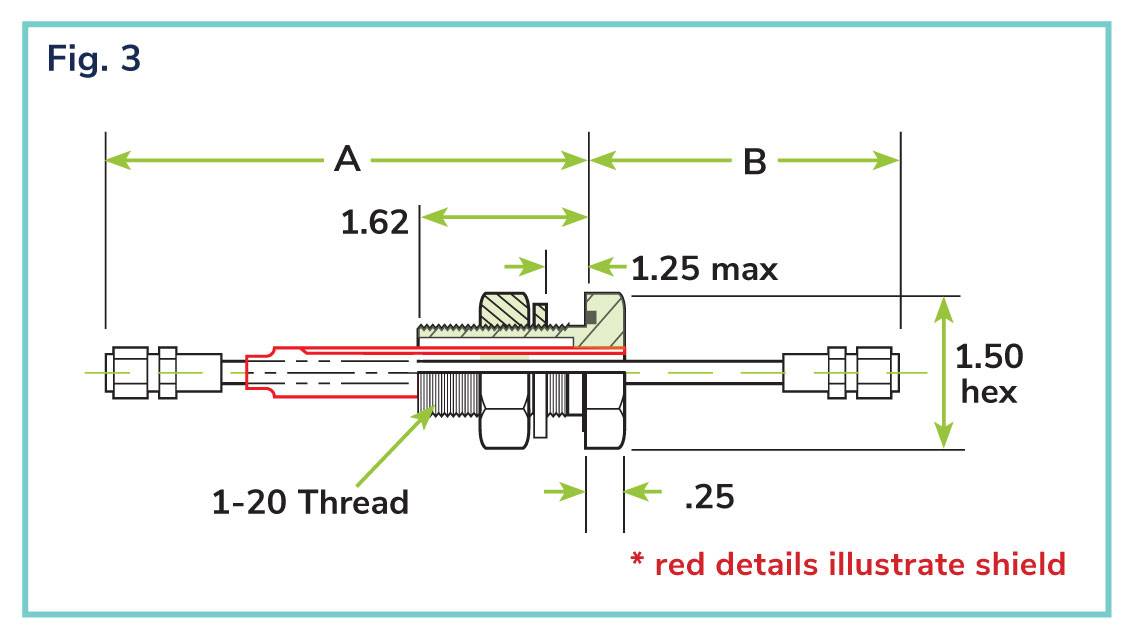

Figure 3
Connection 0.25 in. Swagelok
3D CADLogin
DrawingLogin

BP100XSWG25-FTCS-9.00

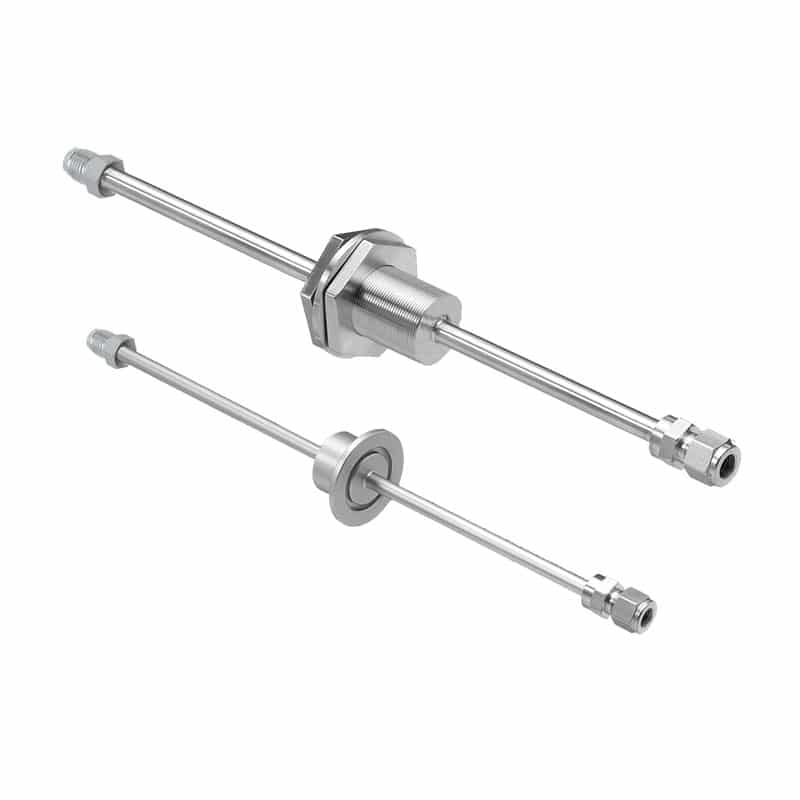

Cryogenic 1 in. Baseplate Feedthrough Swagelok

$0.00

Available on backorder

Part ID: 2001056
















Cryogenic fluid feedthroughs transmit cryogenic cooling agents into high and ultra-high vacuum chambers. These feedthroughs are available with multiple tubing and flange connection options.



Features


  • Flanges and tubing manufactured from 304 stainless steel
    •
  • Fittings (VCR®, Swagelok®) made of 316 stainless steel
    •
  • Max. temperature:

    • CF flanged feedthroughs: 450°C
      •
    • ISO-QF (KF) and baseplate feedthroughs: 150°C (200°C intermittent)
      •

    •
  • Vacuum rating:

    • CF flanged feedthroughs: UHV 1×10-13 Torr
      •
    • ISO-QF (KF) and baseplate feedthroughs: HV 1×10-8 Torr
      •

    •
