REPRESENTATIVE IMAGE
Attributes
| Feedthrough Type | Coaxial |
|---|---|
| Connector Interface | BNC |
| Shield Type | Grounded |
| Pin Count | 1 |
| Voltage | 500 V |
| Current | 3 A |
| Flange Type | ConFlat |
| Flange Size | 2.75 |
| Vacuum Range | 1x10-10 Torr |
| 3D CAD | Login |
All dimensions are in inches unless otherwise specified.
CF275XBNC-FTEC-GND-1P-500V

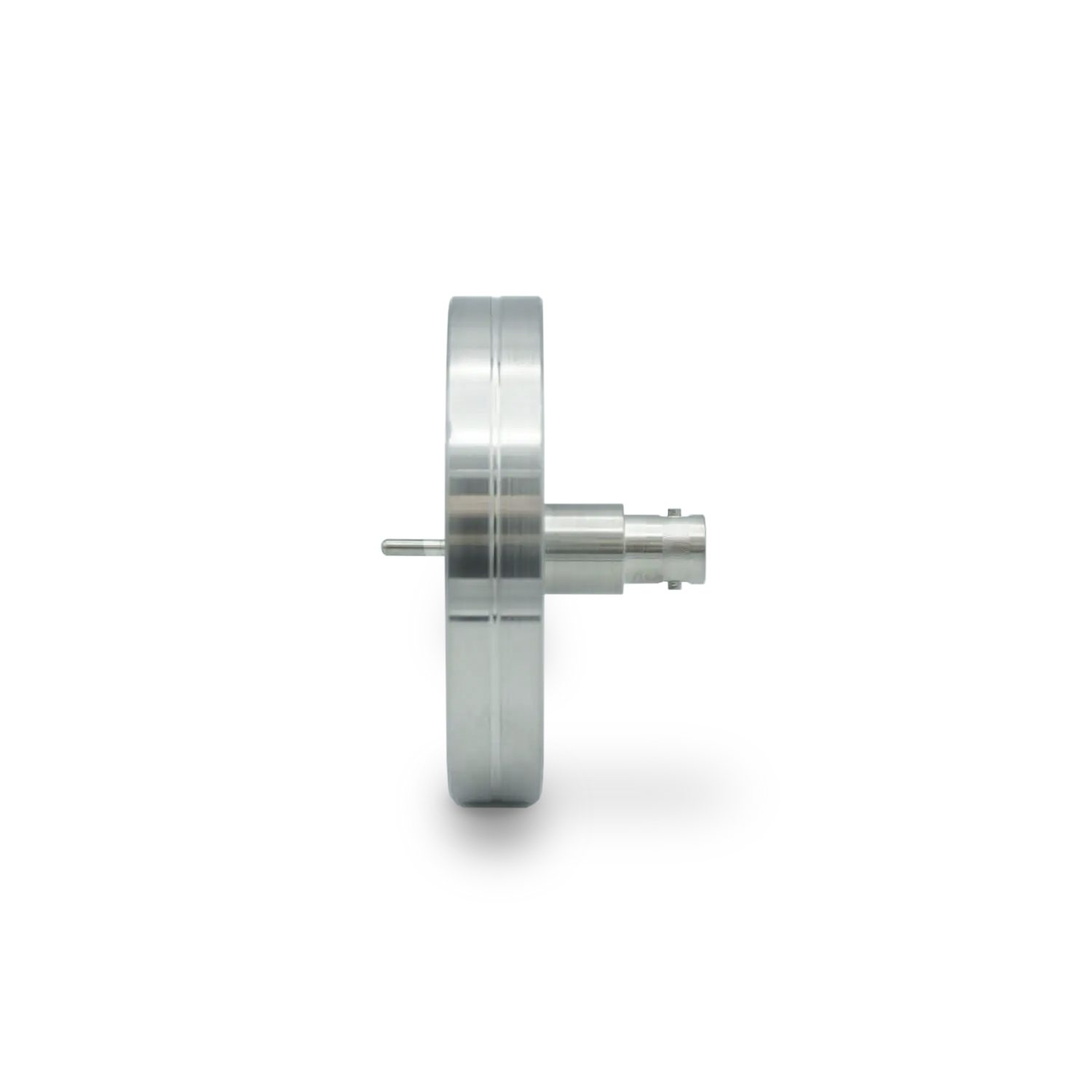

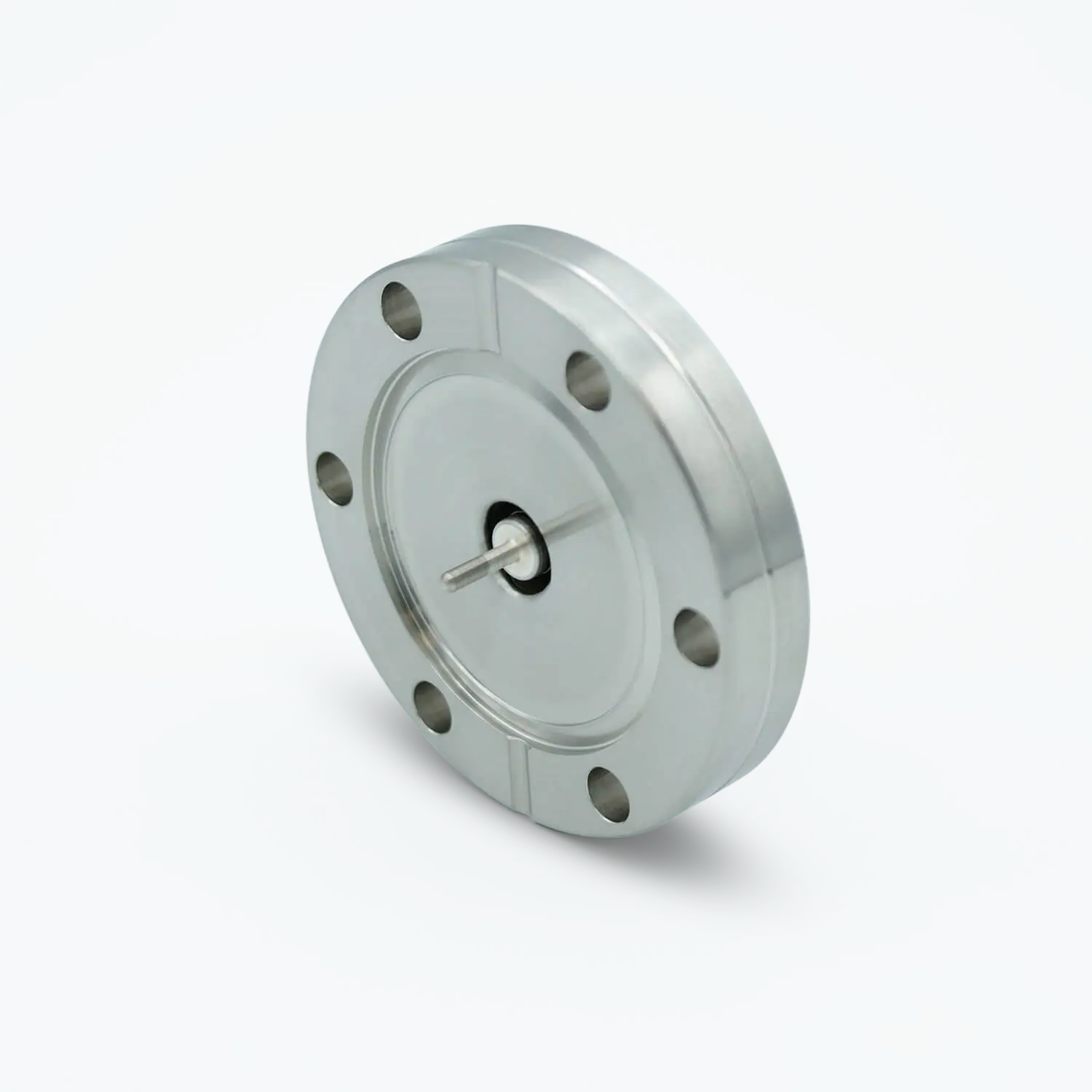

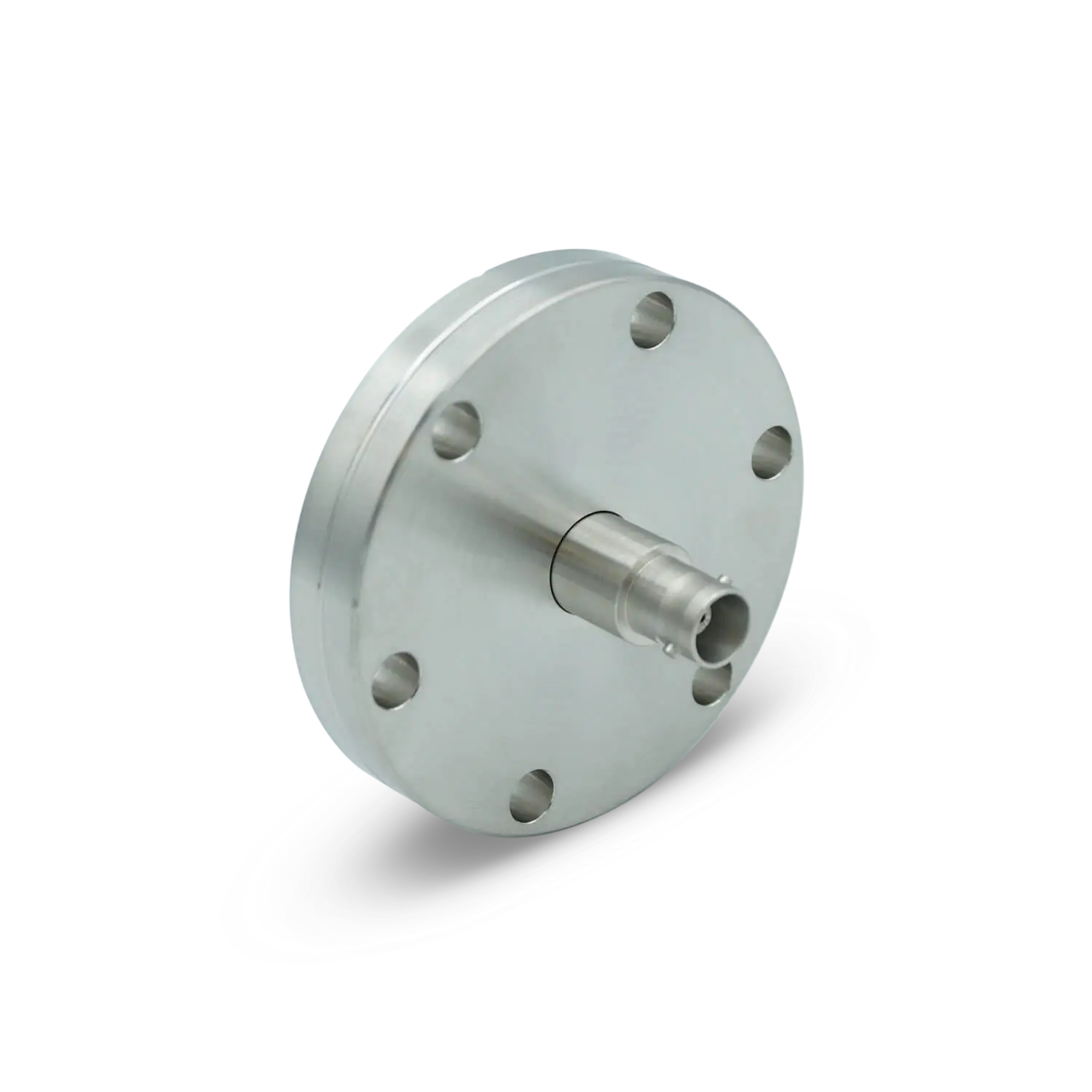

BNC Coaxial Feedthrough, Grounded Shield, 500 V, 3 Amps, 1 Pin, 2.75″ ConFlat Flange
Part ID: 2100101
$138.00
| Standard Lead Time | Contact |
|---|
BNC coaxial electrical feedthroughs provide reliable signal transmission through vacuum boundaries while maintaining vacuum integrity in HV and UHV systems. Featuring a grounded shield design, single-pin configuration, and 2.75″ ConFlat flange, they are ideal for instrumentation, diagnostic, and research applications.
Features
- Shielded coaxial feedthrough for low power instrumentation
- Bayonet style connection
- Single-ended
- Air-side connector included
- Grounded shield
- UHV compatible
Specifications
- Impedance: Non-constant
- Flange Material: 304 Stainless Steel
- Temperature Rating (feedthrough): -200°C to 450°C
- Temperature Rating (air-side connector): 65°C to 165°C
