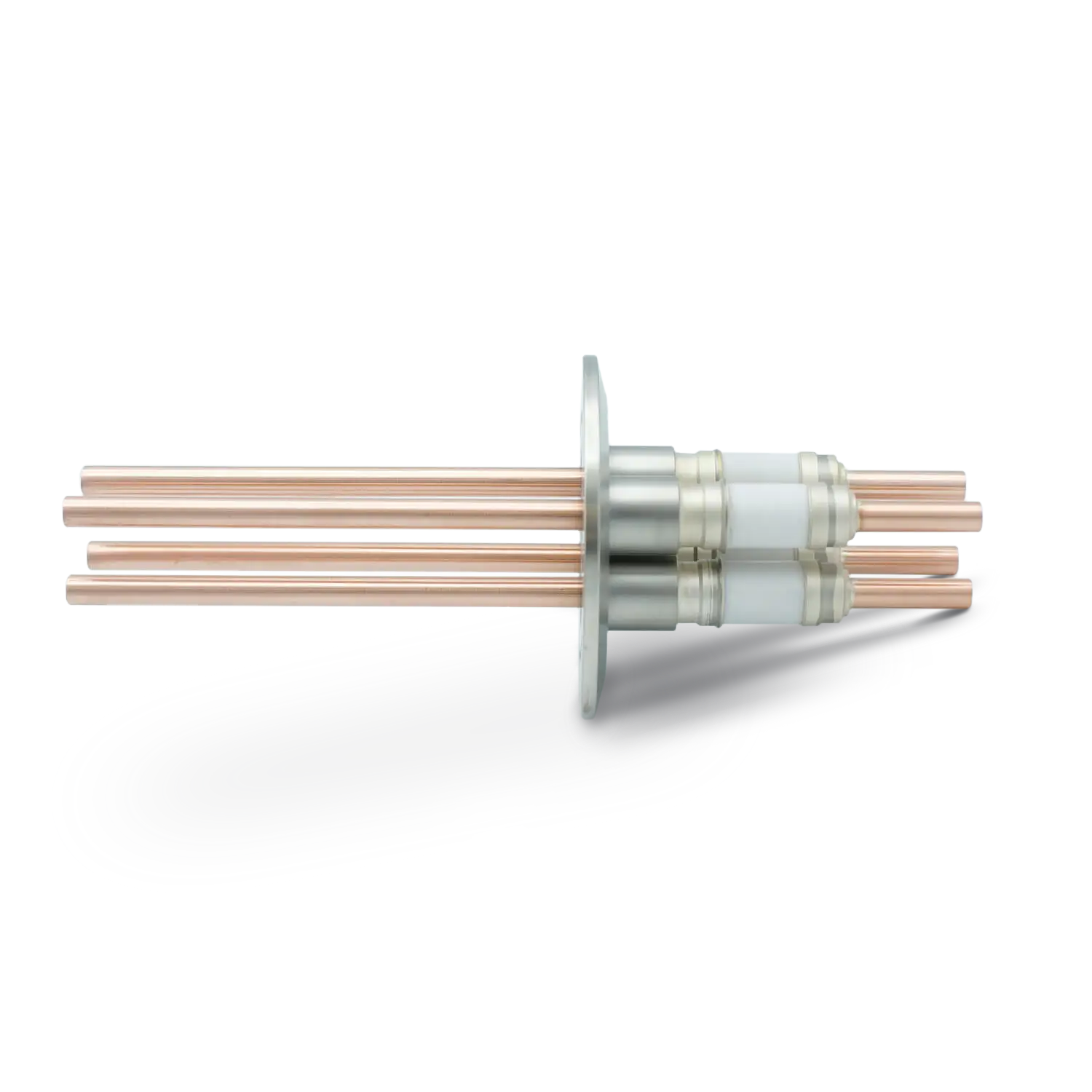

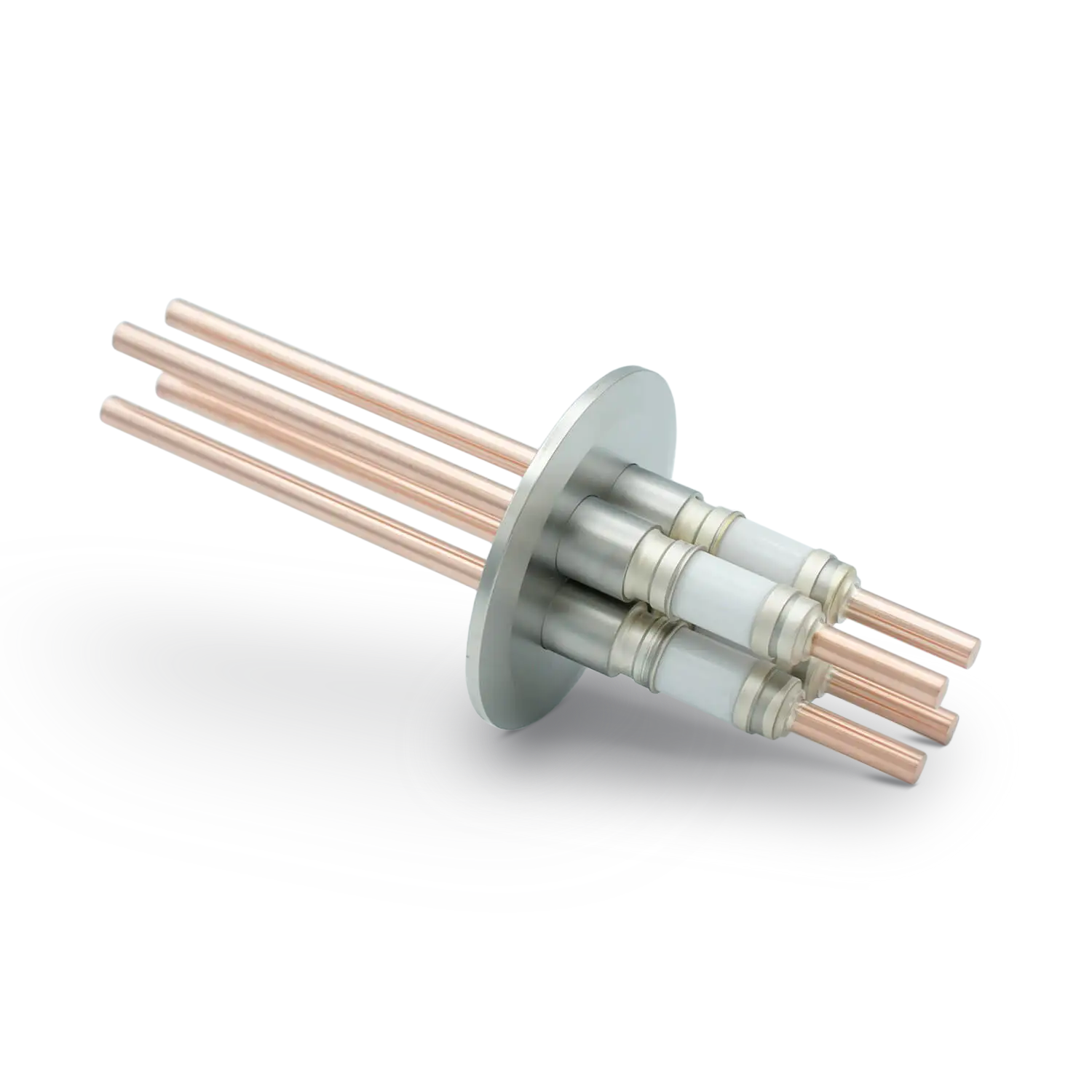

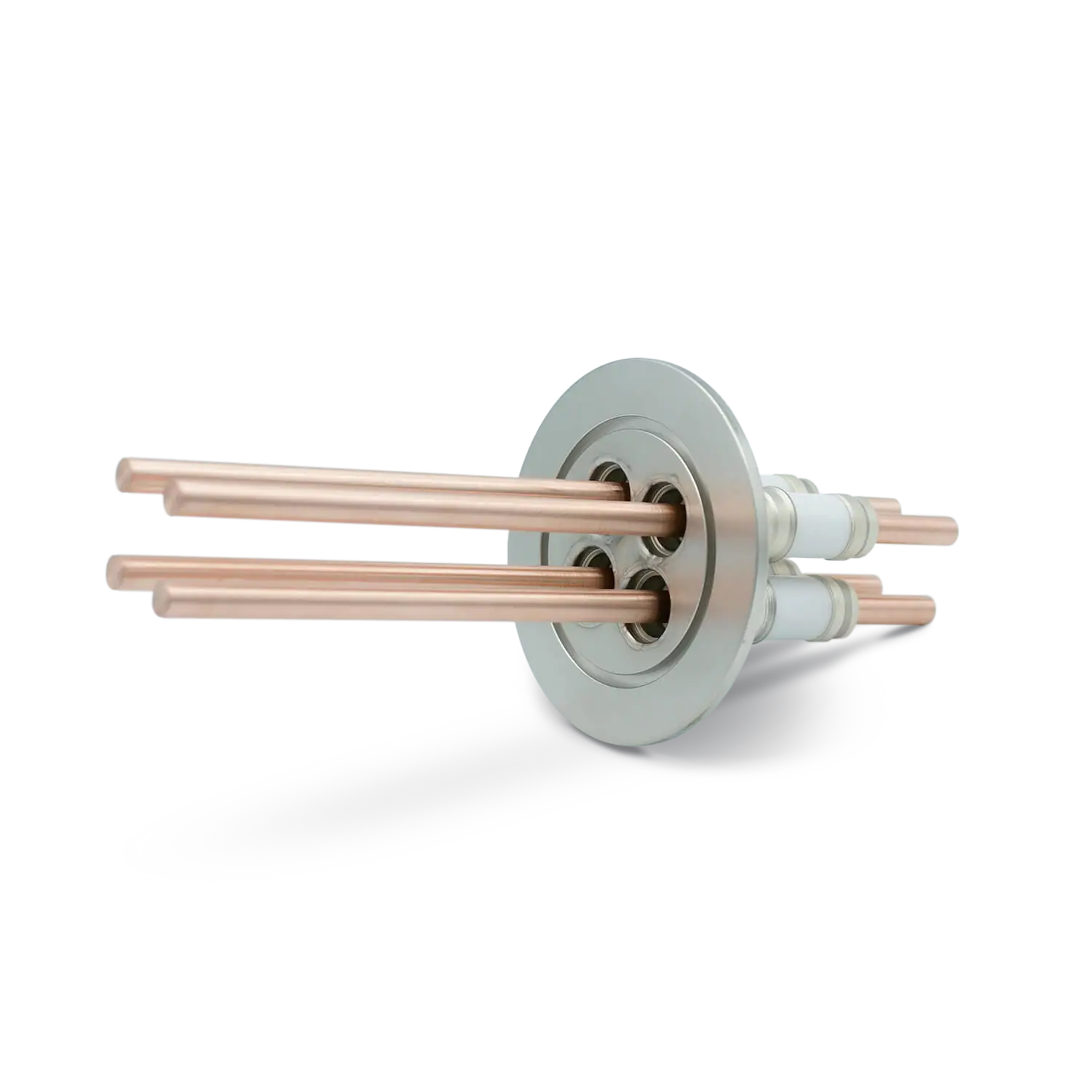

REPRESENTATIVE IMAGE
Attributes
| Feedthrough Type | Power |
|---|---|
| Voltage | 12 kV |
| Current | 180 A |
| Pin Count | 4 |
| Flange Type | KF50 (QF50) |
| Flange Size | 2.95 |
| Vacuum Range | 1x10-8 Torr |
| 3D CAD | Login |
All dimensions are in inches unless otherwise specified.
QF50XPWR-FTEC-4P-180A
Power Feedthrough, 12 kV, 180 Amps, 4 Pins, 0.25″ Copper Conductors, KF50 / QF50 (2.95″) Flange
Part ID: 2100124
$393.00
| Standard Lead Time | Contact |
|---|
Power electrical feedthroughs are designed for reliable power transmission through vacuum systems in high-voltage and high-current environments. Featuring a 0.25″ Copper conductor, 4-pin configuration, 180 A current rating, and 12 kV voltage rating, it is suitable for demanding research and industrial vacuum applications.
Features
- Designed for high-current, high-voltage environments
- Copper conductor for efficient power transmission
- UHV compatible construction
- Suitable for power delivery, vacuum process equipment, and research applications
- Bakeable up to 450°C (without O-ring)
Specifications
- Conductor Material: Copper
- Conductor Diameter: 0.25″
- Insulator Material: Alumina
- Flange Material: 304 Stainless Steel
- Temperature Rating: -100°C to 450°C (without O-ring)
