REPRESENTATIVE IMAGE
Attributes
| Feedthrough Type | Power |
|---|---|
| Voltage | 8 kV |
| Current | 800 A |
| Pin Count | 1 |
| Flange Type | KF40 (QF40) |
| Flange Size | 2.16 |
| Vacuum Range | 1x10-8 Torr |
| 3D CAD | Login |
All dimensions are in inches unless otherwise specified.

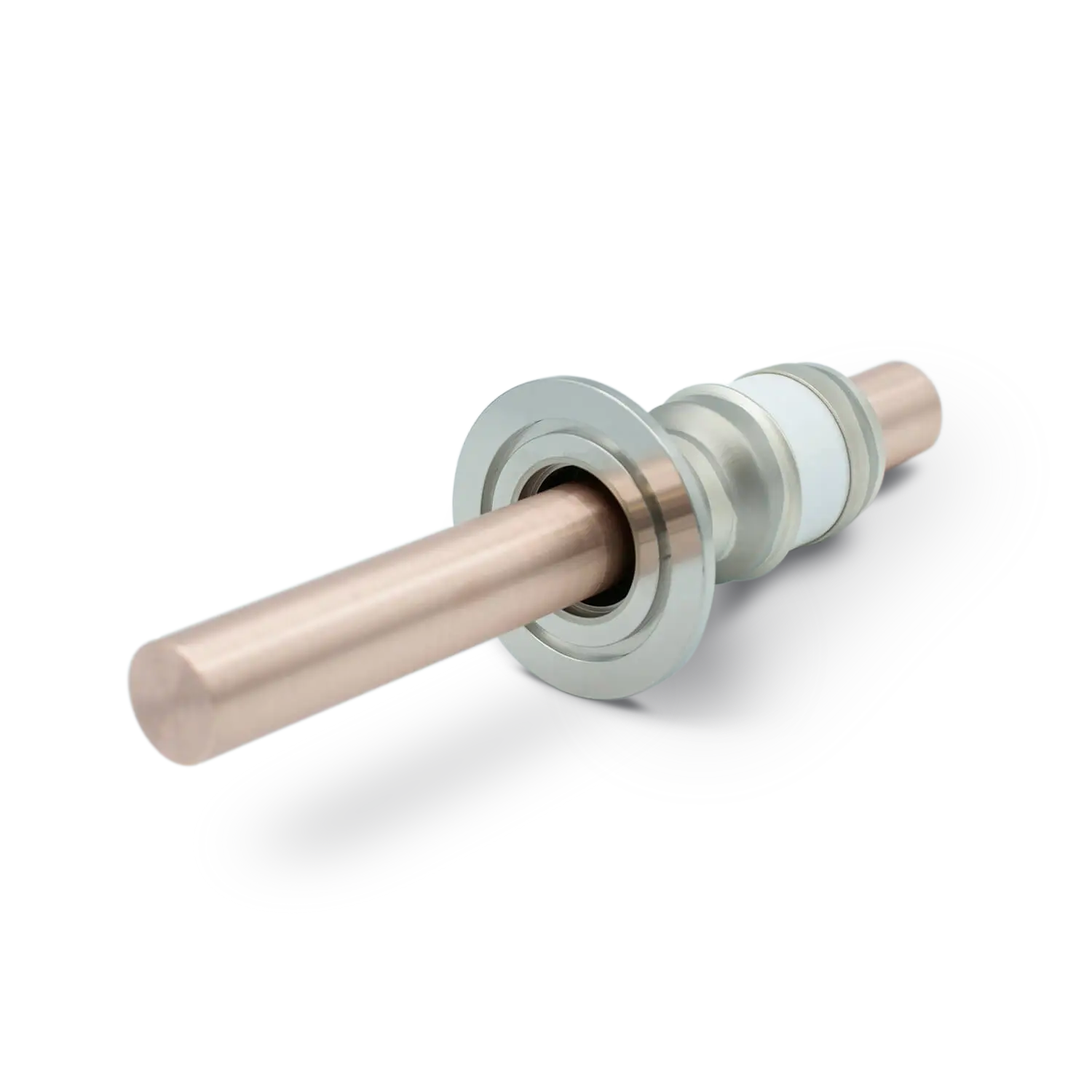

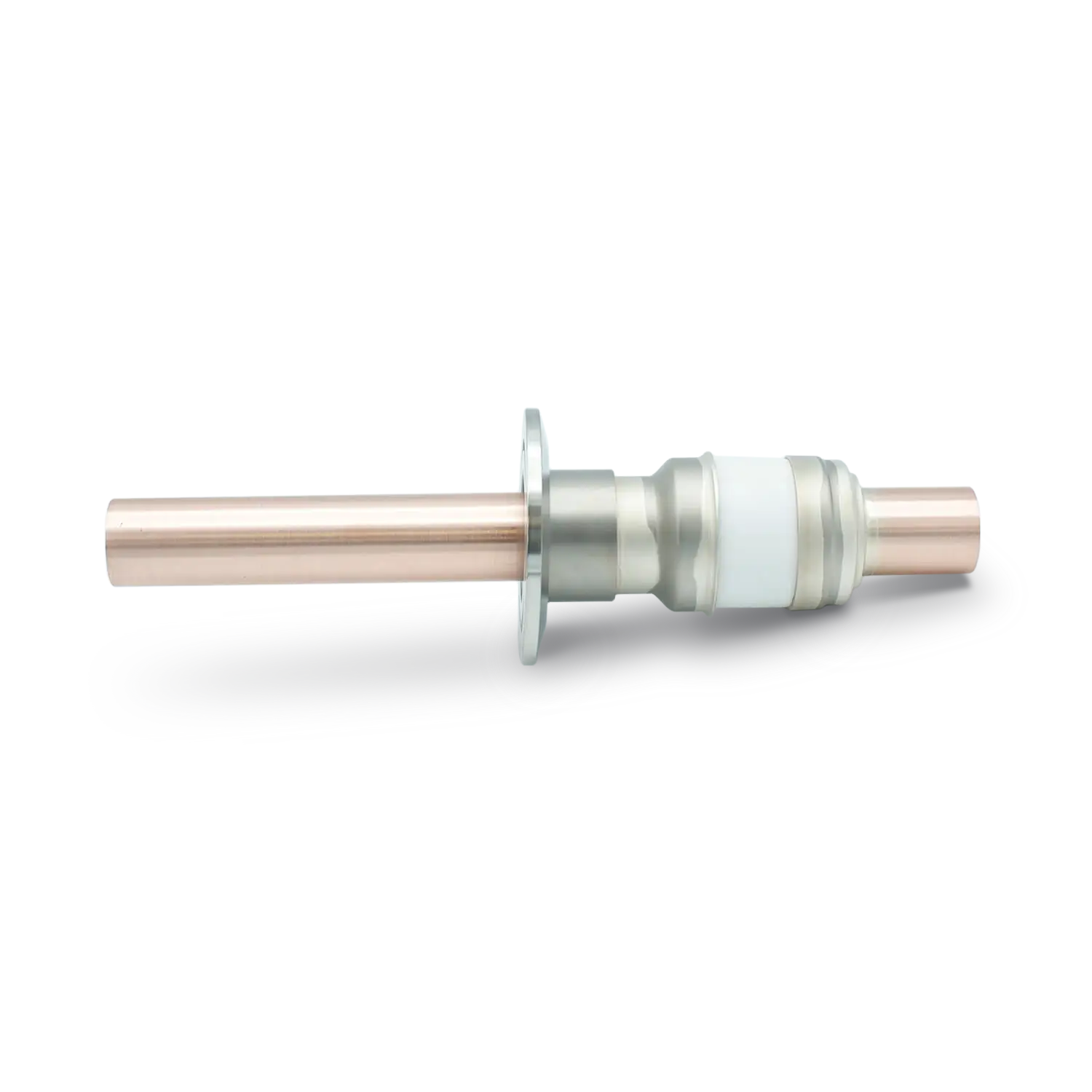

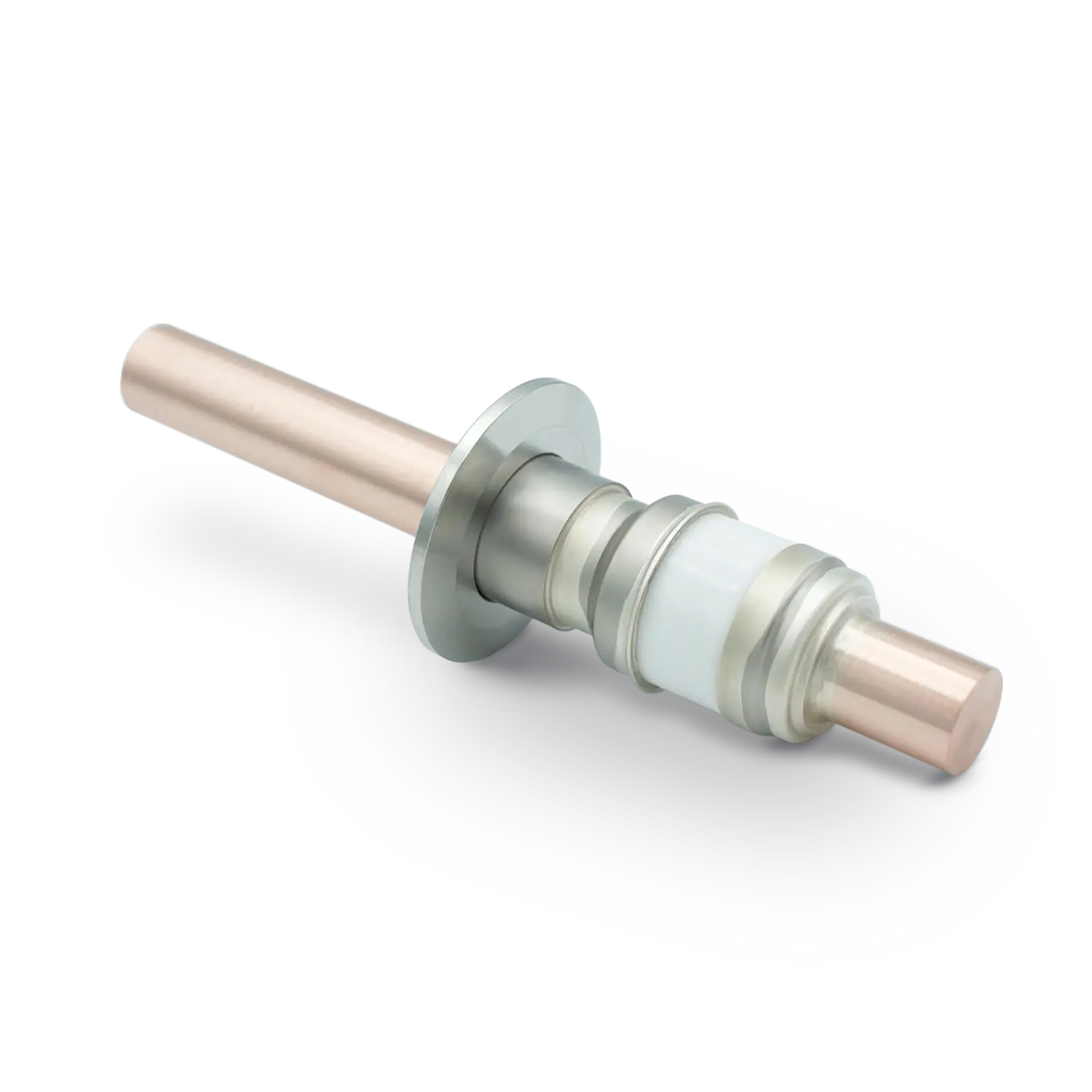

QF40XPWR-FTEC-1P-800A
Power Feedthrough, 8 kV, 800 Amps, 1 Pin, 0.75″ Copper Conductor, KF40 / QF40 (2.16″) Flange
Part ID: 2100126
$285.00
| Standard Lead Time | Contact |
|---|
Power electrical feedthroughs are designed for reliable power transmission through vacuum systems in high-voltage and high-current environments. Featuring a 0.75″ Copper conductor, single-pin configuration, 800 A current rating, and 8 kV voltage rating, it is suitable for demanding research and industrial vacuum applications.
Features
- Designed for high-current, high-voltage environments
- Copper conductor for efficient power transmission
- UHV compatible construction
- Suitable for power delivery, vacuum process equipment, and research applications
- Bakeable up to 450°C (without O-ring)
Specifications
- Conductor Material: Copper
- Conductor Diameter: 0.75″
- Insulator Material: Alumina
- Flange Material: 304 Stainless Steel
- Temperature Rating: -100°C to 450°C (without O-ring)
