| Feedthrough Type | Ceramic Break |
|---|---|
| Isolation Voltage | 30 kV |
| Adapter Type | Tube |
| Adapter Diameter | 1.37 |
| Flange Type | KF40 (QF40) |
| Flange Size | 2.16 |
| Vacuum Range | 1x10-8 Torr |
| 3D CAD | Login |
All dimensions are in inches unless otherwise specified.
QF40XCB-FTEC-30KV

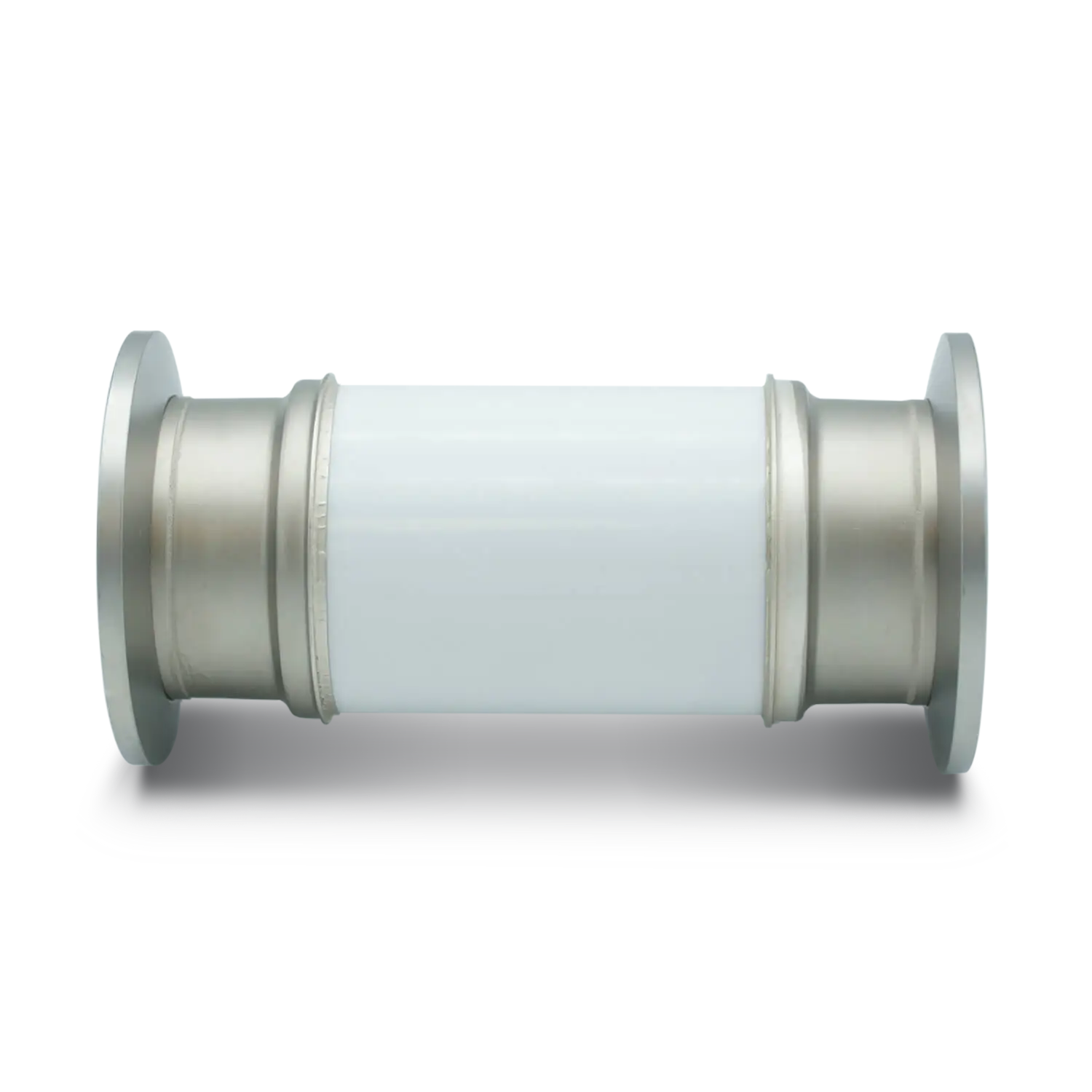

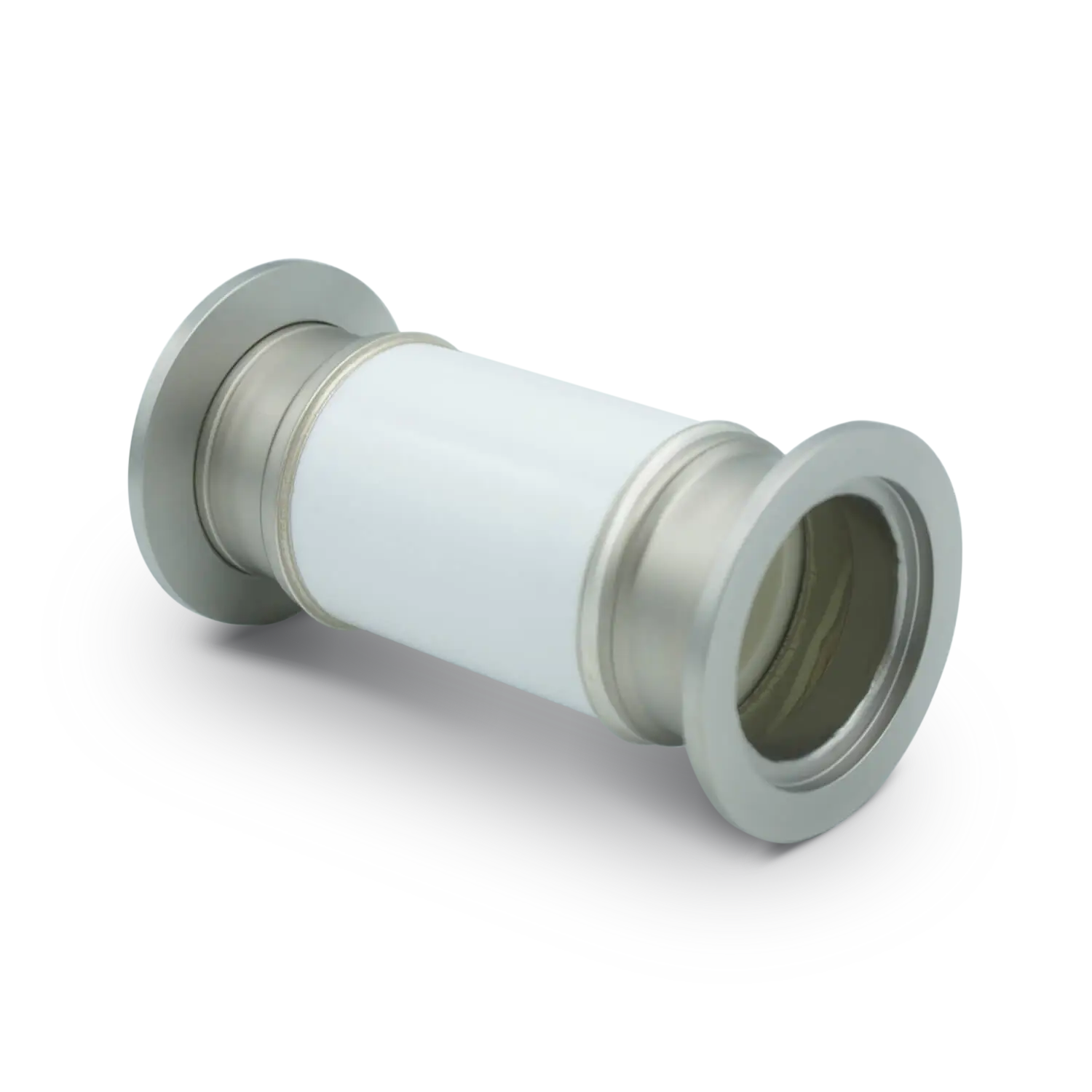

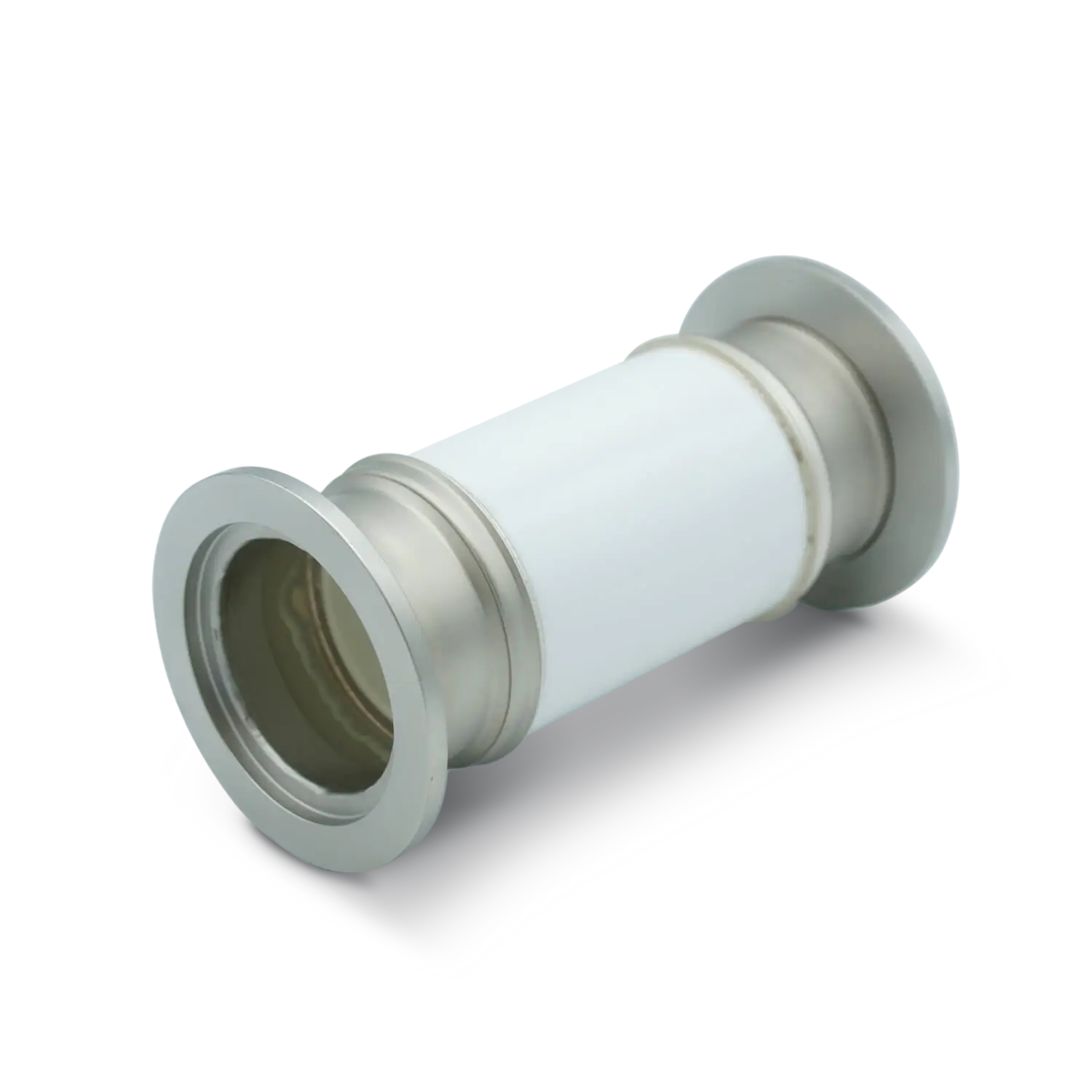

Ceramic Break, 30 kV Isolation, 1.37″ ID, KF40 / QF40 (2.16″) Flange
Part ID: 2100138
$384.00
| Standard Lead Time | Contact |
|---|
Ceramic isolators (breaks) provide electrical and thermal isolation while maintaining vacuum integrity in HV and UHV systems. Featuring a 30 kV voltage rating, 1.37″ inner diameter tube connection, and a KF40 (2.16″) flange, it is designed for applications requiring both electrical and thermal isolation between vacuum components.
Features
- Provides electrical isolation between vacuum system components
- Provides thermal isolation to reduce heat transfer
- Ceramic-to-metal construction for vacuum compatibility
- Rotatable ConFlat flange design
- Stainless Steel vacuum surfaces
- UHV compatible
Specifications
- Insulator Material: Alumina
- Flange Material: 304 Stainless Steel
- Temperature Rating: -200°C to 450°C (without O-ring)
- Leak Rate: < 1×10-9 atm•cc/sec He
