Attributes

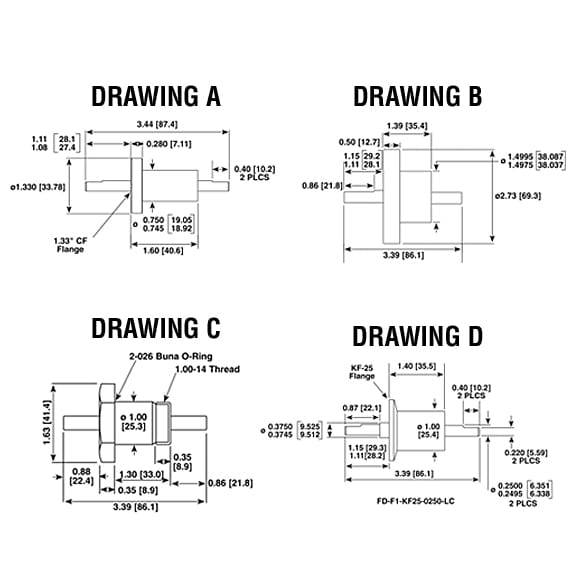

Drawing A
Connection CF133 Flange
Shaft Diameter 1/4"
Transmission Torque 50 in-lbs.
3D CADLogin
DrawingLogin

CF133-025-FTRF-3.44-160

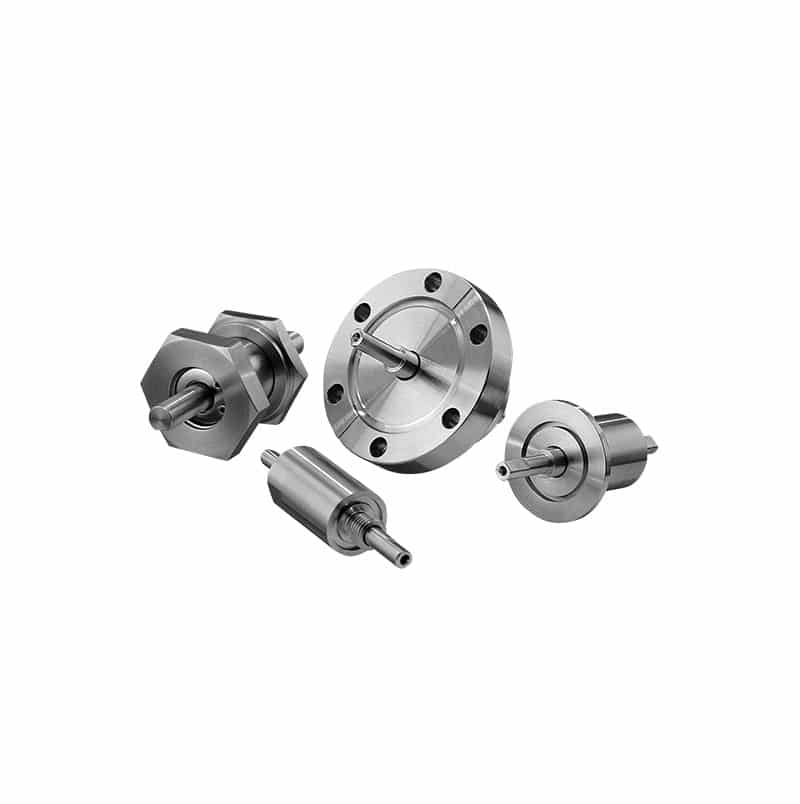

Ferro-Sealed Rotary Motion Feedthrough CF133, 50 in-lbs

$540.00

Available on backorder

Part ID: 2203005

Ferrofluid seals are based on the formation of liquid o-rings, which create a hermetic seal on the shaft of the feedthrough. This is accompanied by the retention of magnetic fluid (ferrofluid) by powerful magnetic fields created by precise placement of high-strength magnets within the body of the feedthrough. The precise roller bearing spindle design allows for a smooth rotation and a high number of rotations per minute.



Features

  • Hermetically sealed with ferrofluid technology
  • Vacuum rated to 1×10-8 torr (UHV option rated to 1×10-9 torr)
  • Up to 5000 RPM performance
  • Very low stray magnetic fields
  • No magnets in vacuum environment
  • Multiple connection options (threaded nose, baseplate, CF, ISO or customized)
