Attributes

A 0.37
B 2.94
C 2.44
# Bolts 6
3D CADLogin
DrawingLogin

QF40-BHC

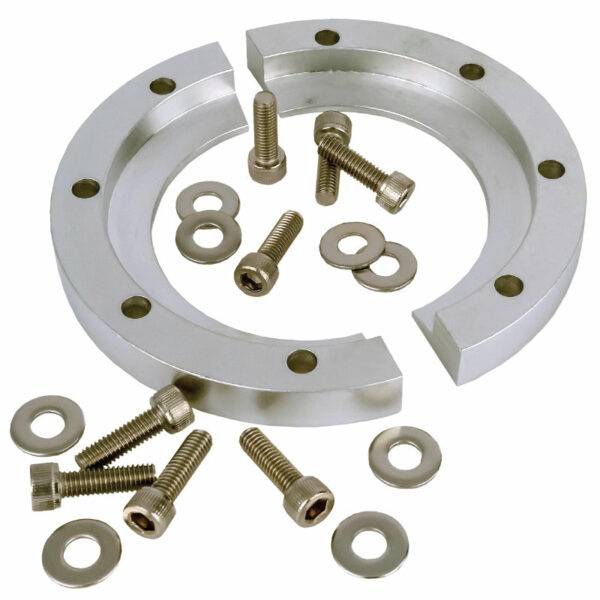

QF40 Bulkhead Clamp

$28.00

5 in stock (can be backordered)

Part ID: 4000002

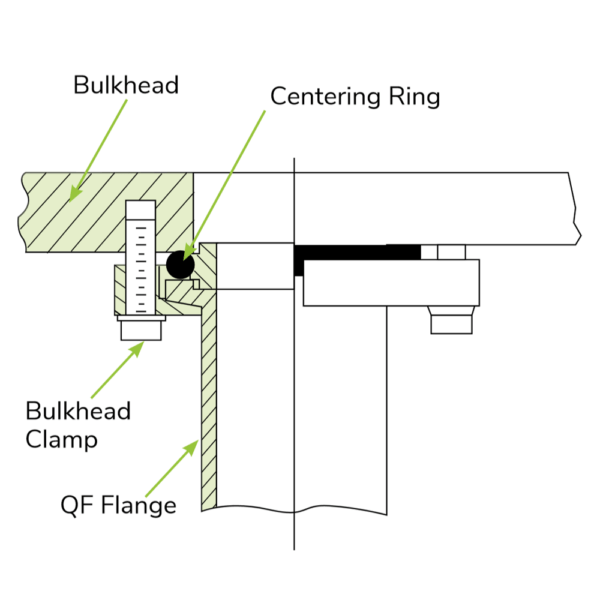

Bulkhead clamps are used to fasten ISO-QF (KF) style flanges and components directly to valves, chamber walls, baseplates, or bulkheads. The object to which the flange is sealing must have a compatible bolt hole pattern and sealing groove machined into the sealing surface.

Features

  • High vacuum Rated to 1×10-8 Torr
  • Compatible with all ISO standard vacuum flanges and fittings

Materials

  • Body: Aluminum
  • Hardware (pins,studs and hinges): Stainless Steel
  • Bolt size: 10-32×5/8

Product Notes

  • Utilizes a standard QF seal assembly
  • Bolts included
