QF50-BHC

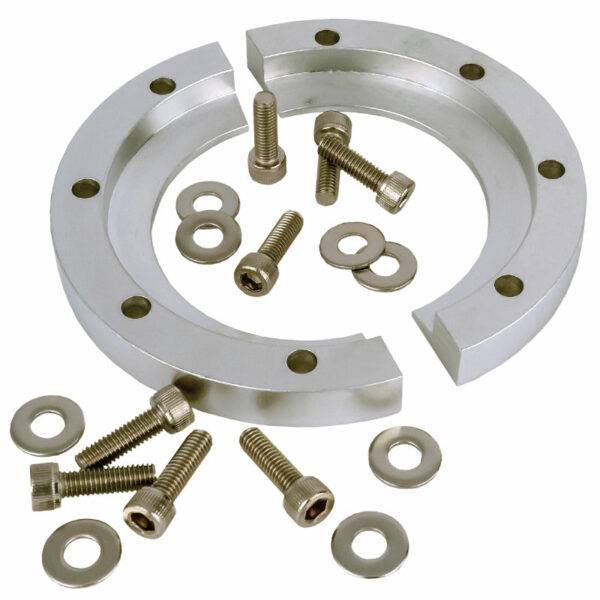

QF50 Bulkhead Clamp
Part ID: 4000003
$35.00
Standard Lead Time: | Contact |
---|
Available on backorder

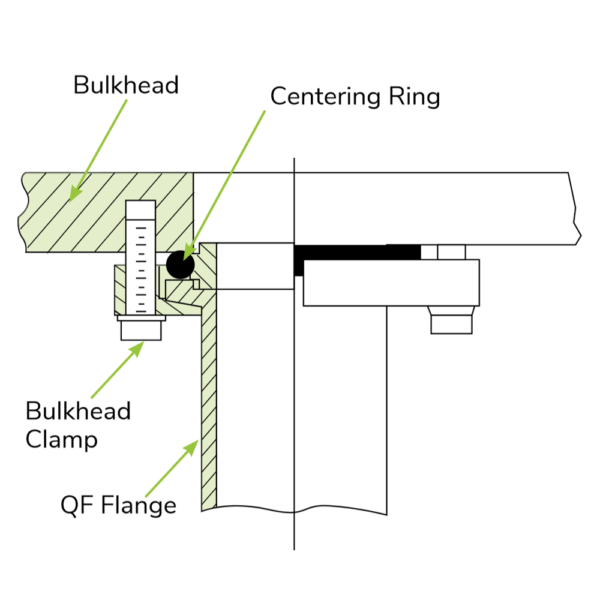

Bulkhead clamps are used to fasten ISO-QF (KF) style flanges and components directly to valves, chamber walls, baseplates, or bulkheads. The object to which the flange is sealing must have a compatible bolt hole pattern and sealing groove machined into the sealing surface.
Features
- High Vacuum Rated to 1×10-8 Torr
- Compatible with all ISO standard vacuum flanges and fittings
- Utilizes a standard QF seal assembly
- Bolts included
Specifications
- Materials:
- Body: Aluminum
- Hardware (pins, studs and hinges): Stainless Steel
- Bolt size: 10-32×5/8
Accordion #1
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Accordion #2
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Attributes
All dimensions are in inches unless otherwise specified.
